994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Dash Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

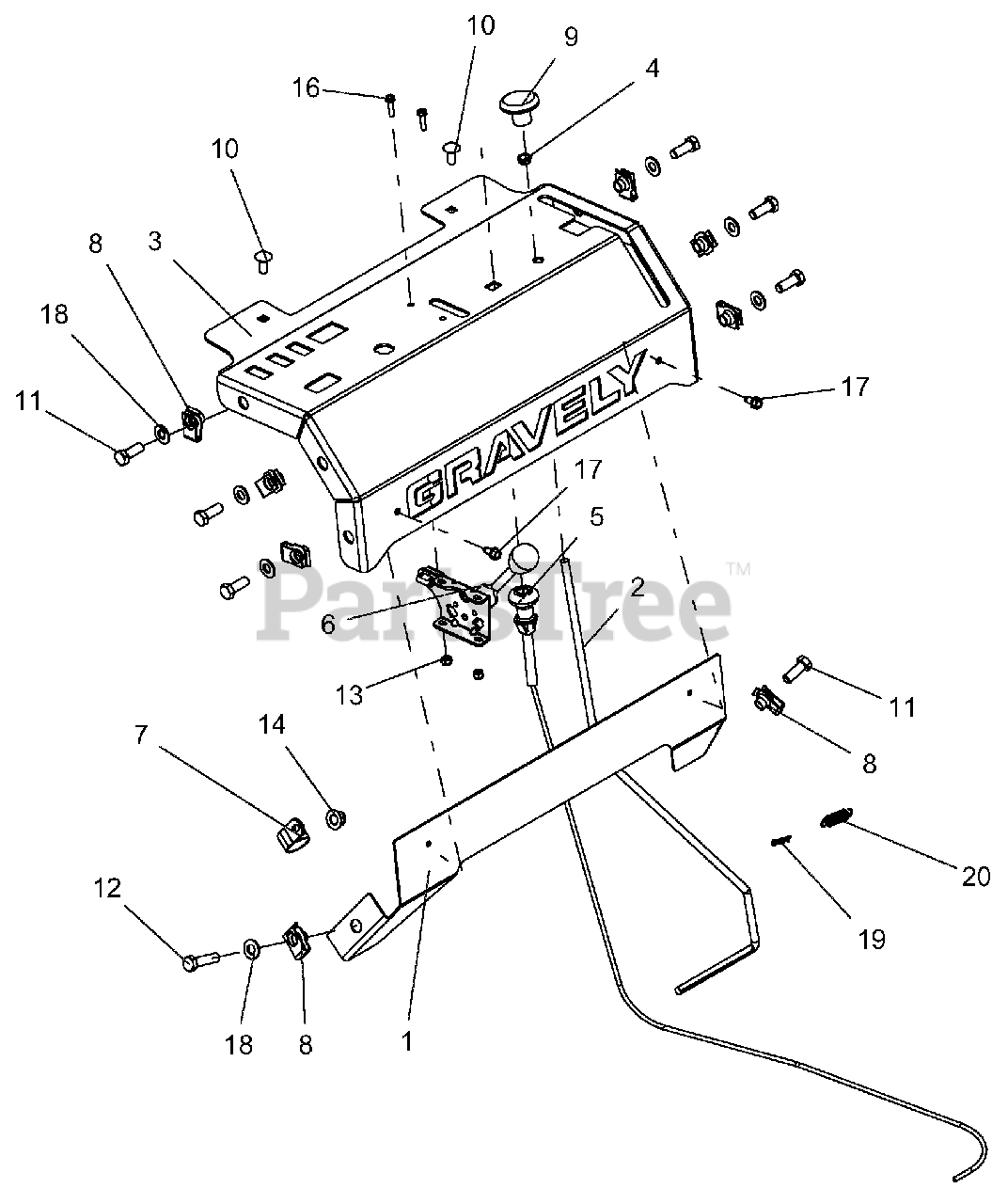

Dash Parts Diagram

  • Title

1

Gravely 04575251

PLATE, FRONT BACKER

$43.99

$

Usually ships in 4-12 days

0

2

Gravely 04663400

WIREFORM, TRAILER LOCK

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 59400900

PANEL, CONTROL - PRO-STANCE

$276.99

$

Usually ships in 4-12 days

0

4

Gravely 05500020

BSHG, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 18

0

5

Gravely 06900408

CABLE, CHOKE (SNAP IN)

Note: (SNAP IN)

$41.99

$

In Stock, only 1 left!

0

6

Gravely 06900411

CABLE, PRO-CONTROL THROTTLE

$55.99

$

Usually ships in 4-12 days

0

7

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 07053300

NUT, RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

9

Gravely 07539900

KNOB, PUSH -PULL .312-18

$7.49

$

In Stock, Qty 11

0

10

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

13

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

17

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

20

Gravely 08310900

SPRG, EXTENSION

$6.49

$

In Stock, Qty 8

0
