994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Discharge Chute Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

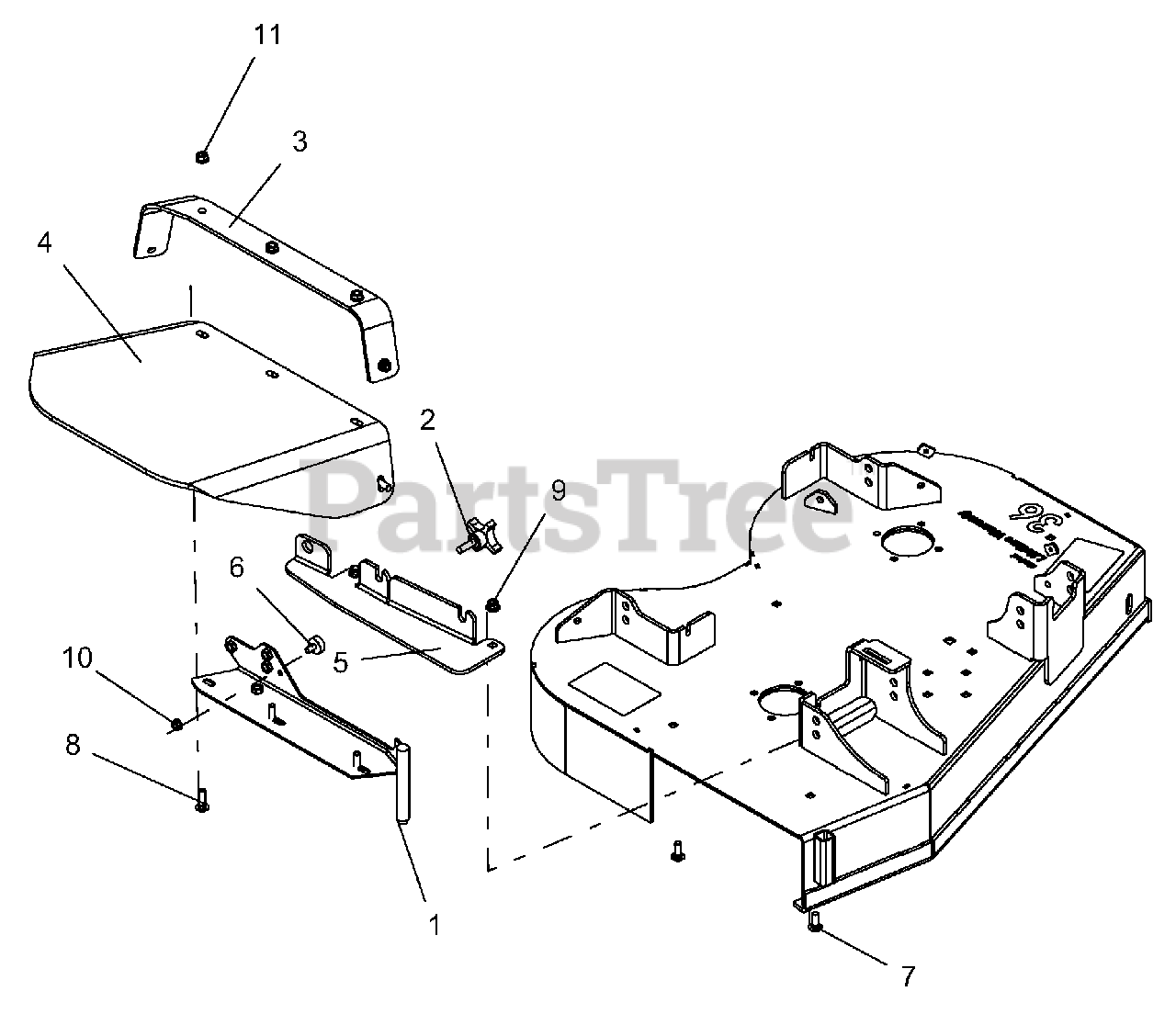

Discharge Chute Parts Diagram

  • Title

1

Gravely 03981953

WLDT. DISCHARGE-RED

$90.99

$

Usually ships in 4-12 days

0

2

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 2 left!

0

3

Gravely 04727653

STRAP, RUBBER DISCHARGE CHUTE

$86.99

$

Usually ships in 4-12 days

0

4

Gravely 04728800

SHIELD, RUBBER DISCHARGE

$98.99

$

Usually ships in 4-12 days

0

5

Gravely 04733353

BRKT, DISCHARGE 36 STANCE

$79.99

$

Usually ships in 4-12 days

0

6

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

7

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

8

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0
