994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Electrical Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

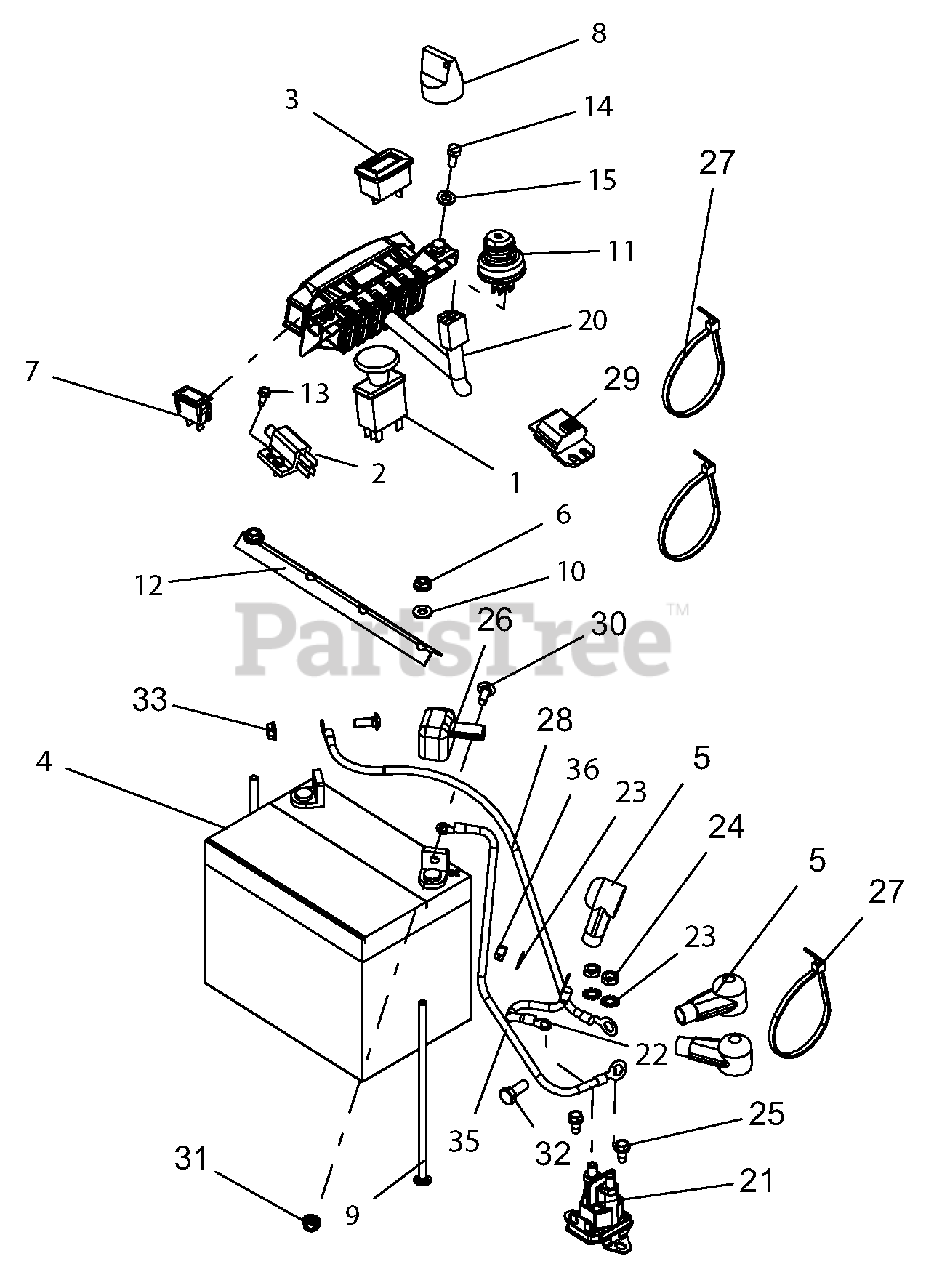

Electrical Parts Diagram

  • Title

1

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

2

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

3

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, only 3 left!

0

4

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

5

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

6

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 08841200

LIGHT, INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

8

Gravely 09287000

KEY, W/ COVER

$17.99

$

In Stock, Qty 20+

0

9

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 G2 YWZC
(Superseded to 06200424)

$5.49

$

In Stock, Qty 16

0

10

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

11

Gravely 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

12

Gravely 03494051

HOLD DOWN - BLK

$11.99

$

In Stock, only 2 left!

0

13

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

14

Gravely 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

15

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04693400

HARNESS, WIRE- HARNESS

$336.99

$

Usually ships in 4-12 days

0

21

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

22

Gravely 03286000

CABLE, POSITIVE BATTERY 9.00"

$9.99

$

In Stock, only 3 left!

0

23

Gravely 06307200

WSHR-LK-EXT .326X.599X.031 YWZC REV
(Superseded to 06300125)

$0.99

$

In Stock, only 1 left!

0

24

Gravely 06536700

NUT-JAM
(Superseded to 06500923)

$1.49

$

In Stock, Qty 10

0

25

Gravely 07412000

SCR, TAP .25-20X.50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

27

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

28

Gravely 08840400

CABLE-GROUND .25 X 13.00 X .31 REV A2

$18.99

$

Usually ships in 4-12 days

0

29

Gravely 09044200

MODULE, INTERLOCK

$73.99

$

Usually ships in 4-12 days

0

30

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$1.49

$

In Stock, Qty 8

0

31

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 02727201

CABLE, STARTER 13.00"

$23.99

$

In Stock, Qty 9

0

36

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
