994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Fuel System - 49 State Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

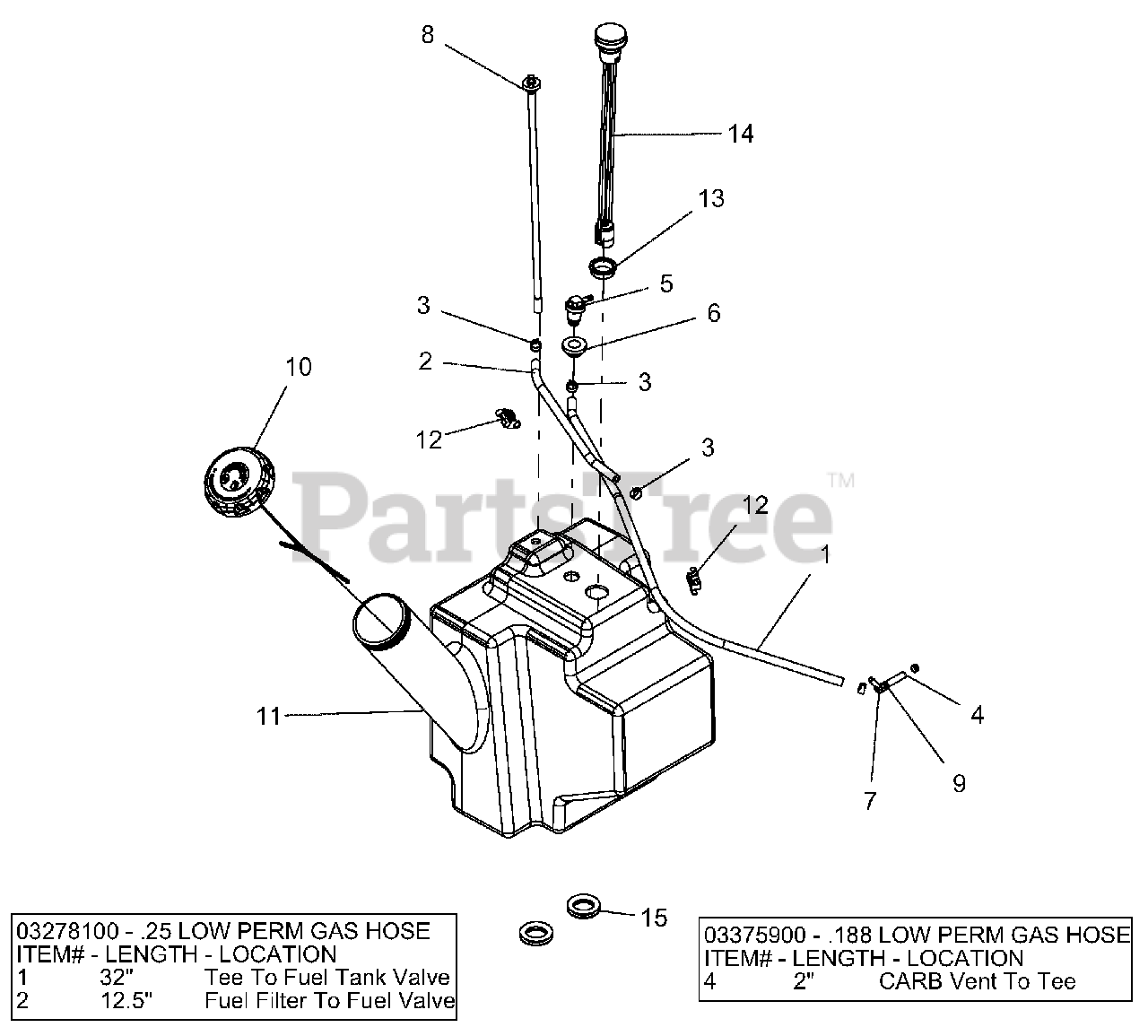

Fuel System - 49 State Parts Diagram

  • Title

1

Gravely 03278100

.25 LOW PERM GAS HOSE

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03278100

.25 LOW PERM GAS HOSE

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

4

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

6

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

7

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 04446900

ASM, LARGE TANK FUEL PICK-UP

$29.99

$

Usually ships in 4-12 days

0

9

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, only 1 left!

0

11

Gravely 04594700

TANK, FUEL COMPACT PROSTANCE

$271.99

$

Usually ships in 4-12 days

0

12

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, Qty 15

0

14

Gravely 07500311

GAGE, REMOTE FUEL SEALED 15"

$

$

Not available

15

Gravely 07536800

GROMMET, 1.25"

$12.99

$

Usually ships in 4-12 days

0
