994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Operator Pad And Latch Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

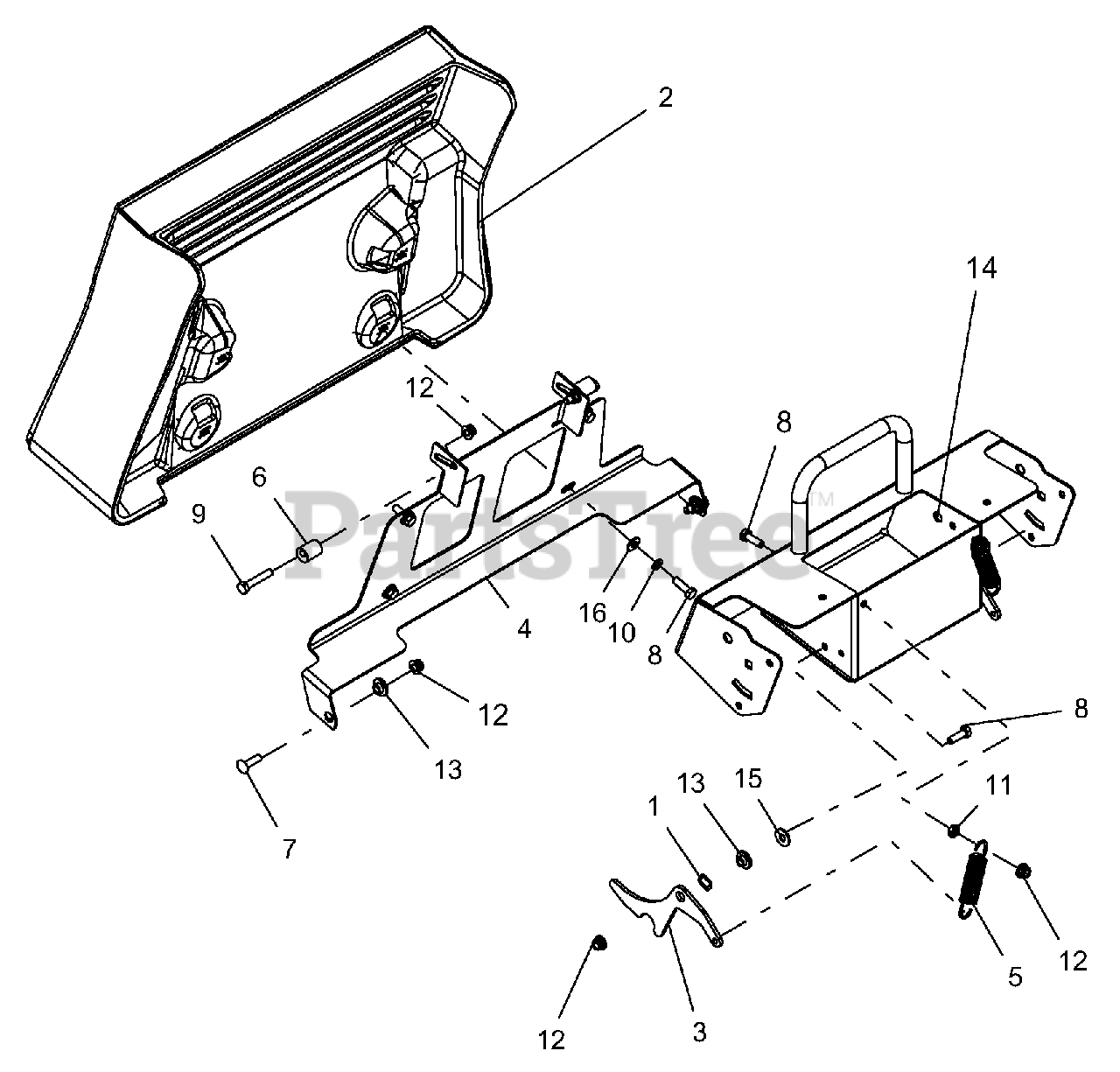

Operator Pad And Latch Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$1.49

$

In Stock, Qty 20+

0

2

Gravely 04389200

PAD, PROSTANCE

$237.99

$

Usually ships in 4-12 days

0

3

Gravely 04577500

LATCH, PAD MOUNT

$

$

Not available

4

Gravely 04634453

PAD, MOUNT-RED

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 08311700

SPRG, EXTENSION

$9.49

$

In Stock, Qty 6

0

6

Gravely 09235700

ECCENTRIC

$5.49

$

Usually ships in 4-12 days

0

7

Gravely 06200124

BLT-RDHDSQSHNK .31-18X1.125 G5YWZC
(Superseded to 06200334)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

9

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, Qty 20+

0

14

Gravely 04723853

WLDMT, CONTROL PANEL, PRO-STANCE

$237.99

$

Usually ships in 4-12 days

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
