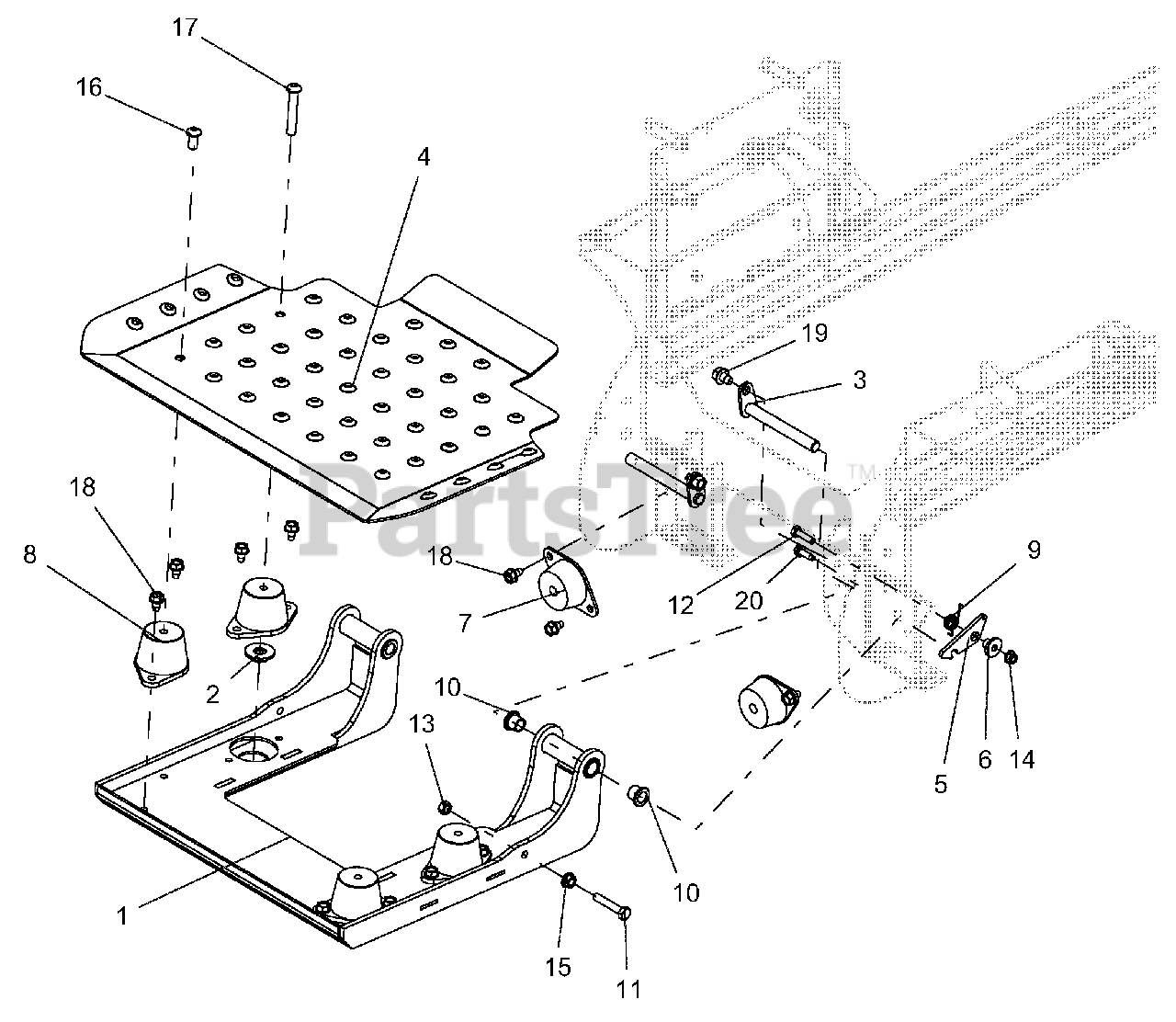

994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Operator Platform Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

Operator Platform Parts Diagram

  • Title

1

Gravely 04593453

WLDMT, PLATFORM CARRIER

$274.99

$

Usually ships in 4-12 days

0

2

Gravely 04443000

WLDMT, SEAT RETAINER

$23.99

$

In Stock, Qty 9

0

3

Gravely 04696200

WLDMT, PIN

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 04593553

PLATE, OPERATOR PLATFORM-RED

$105.99

$

Usually ships in 4-12 days

0

5

Gravely 04694853

LATCH, PLATFORM

$8.99

$

Usually ships in 4-12 days

0

6

Gravely 04711700

BSHG, FLANGE .26 X .42 X .88 X .33

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 05034800

MOUNT, ENGINE. VIBRATION ISO

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 07500213

MOUNT, ISOLATOR

$46.99

$

In Stock, Qty 9

0

9

Gravely 08300014

SPRG, TORSION

$1.49

$

In Stock, Qty 18

0

10

Gravely 00200116

BRG, FLG .500 X .620 X .500 BRNZ

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

12

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 8

0

15

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 07069200

SCR-BTHD-SOCKET .38-16X.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07001725

SCR-BTHD-SOCKET .38-16X2.25 FTH YWZC

$4.99

$

In Stock, Qty 11

0

18

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

20

Gravely 07400111

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
