994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 040000 & Above) Drive Belt And Clutch Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

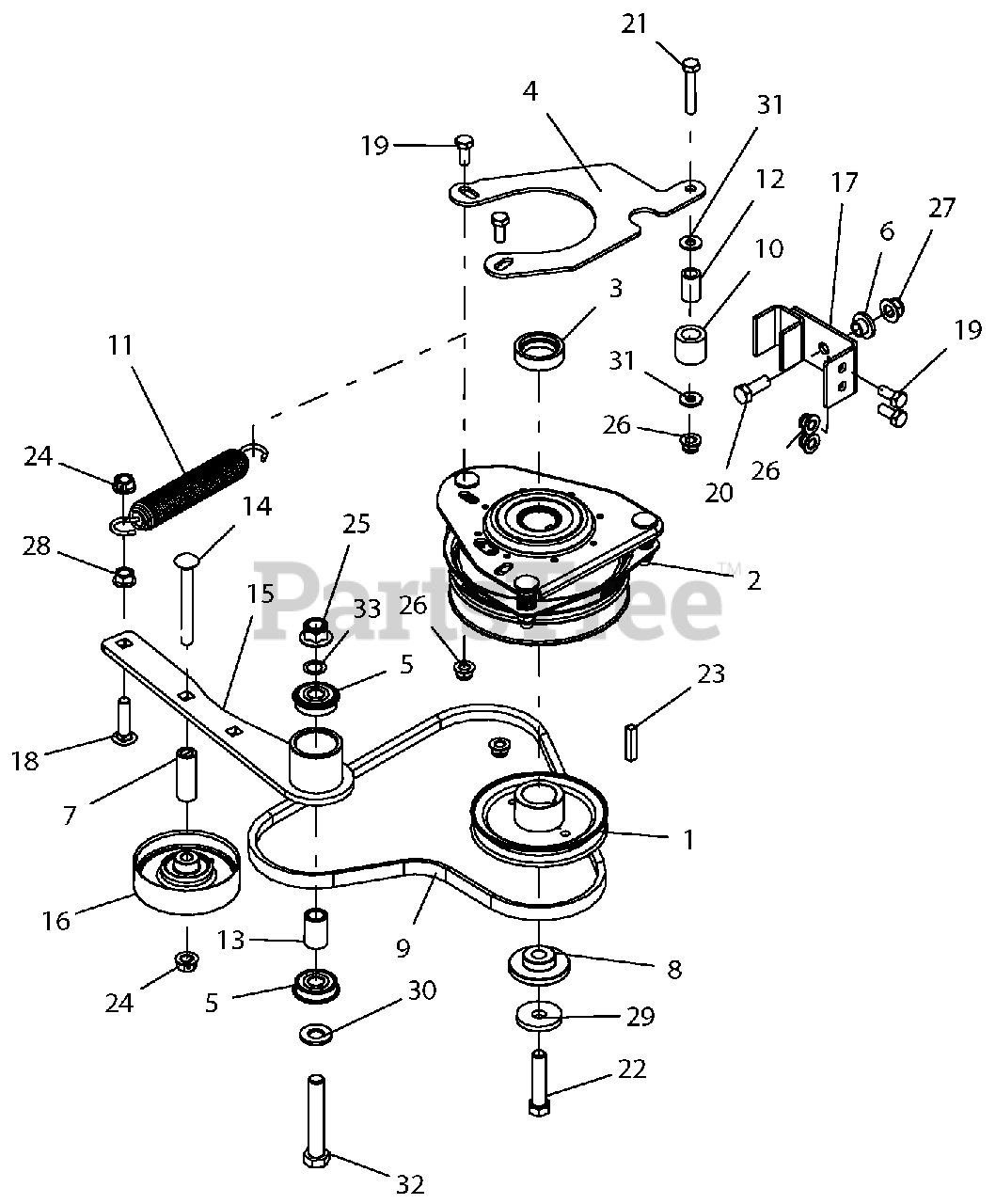

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 07340667

SHEAVE, ENGINE 4.50 OD X 1.127

$219.99

$

Usually ships in 4-12 days

0

2

Gravely 03789900

CLUTCH, ELEC OGURA GT1A-AR03

$329.99

$

In Stock, Qty 5

0

3

Gravely 04650700

SPCR, CLUTCH

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 04663951

PLATE, CLUTCH DOG

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$12.99

$

In Stock, Qty 13

0

6

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, only 1 left!

0

7

Gravely 05501138

BSHG, SLV .385 X .625 X 1.75

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 05501206

BSHG, -FLG .469 x 1.06 x .574 x 2.0

$19.99

$

In Stock, only 1 left!

0

9

Gravely 07200641

V-BELT, 4L RAW EDGE LAMINATED

$26.99

$

In Stock, only 2 left!

0

10

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, Qty 8

0

11

Gravely 08300513

SPRG, EXTENSION

$34.99

$

In Stock, Qty 14

0

12

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$5.99

$

In Stock, Qty 10

0

13

Gravely 09357700

SPACER, .510 X .750 X 1.148

$3.99

$

In Stock, Qty 12

0

14

Gravely 06200001

BLT-RDHDSQNK .38-16X3.25 G5 Y

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 04597451

WLDMT, HYDRO DRIVE IDLER ARM

$72.99

$

In Stock, only 3 left!

0

16

Gravely 07341100

IDLER, FLAT - 3.50" X .75"

$113.99

$

In Stock, only 3 left!

0

17

Gravely 04635851

WLDMT, CLUTCH STOP

$66.99

$

Usually ships in 4-12 days

0

18

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5 Y
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

20

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

22

Gravely 05901530

BLT-HEX .44-20X2.00 GR8 YWZC NYTORQ
(Superseded to 05901916)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06603400

KEY-SQ .250X.250X1.250

$3.99

$

In Stock, only 1 left!

0

24

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 2 left!

0

30

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

32

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

33

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$2.49

$

In Stock, Qty 20+

0
