994120 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB (SN: 040000 & Above)

Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB

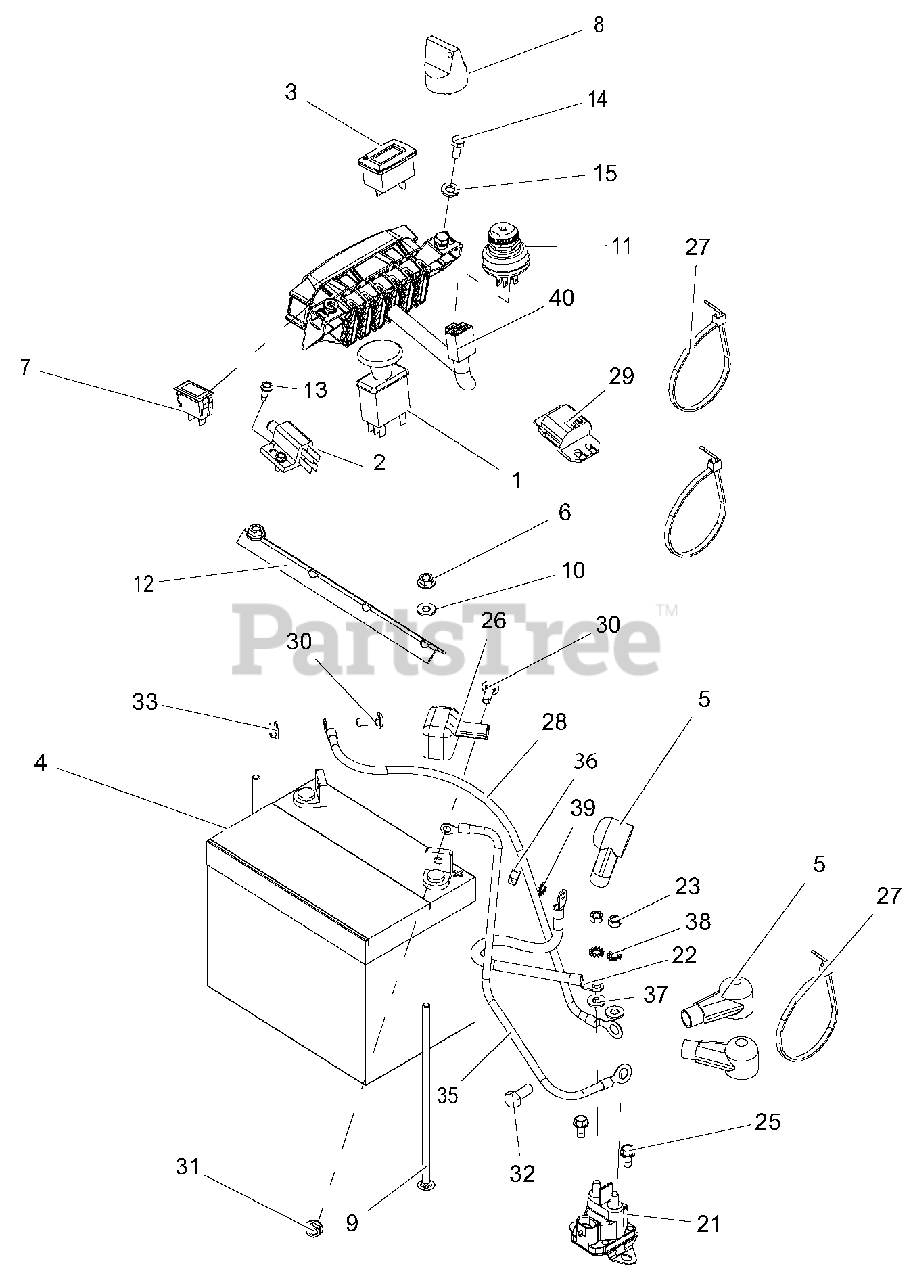

994120 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB (SN: 040000 & Above) > Parts Diagrams (25) > Electrical

  • Title
01545600

1

SWITCH, CLUTCH

Part# 01545600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $41.03

03606600

2

SWITCH- DOUBLE POLE N.O./N.O.

Part# 03606600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $17.55

03966800

3

METER, HOUR W/MAINTENANCE

Part# 03966800

OEM Warranty Repair Part for Gravely

Not available

00191832

4

BATTERY, 12V-U1-CCA270MIN

Part# 00191832 (Superseded to 01554800)

OEM Warranty Repair Part for Gravely

Not available

00525800

5

BOOT, BATTERY TERMINAL-RED

Part# 00525800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

06530100

6

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

08841200

7

LIGHT, INDICATOR

Part# 08841200 (Superseded to 05128700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.68

09287000

8

KEY, W/ COVER

Part# 09287000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06226400

9

BLT-RDHDSQNK .25-20X7.50 G2 YWZC

Part# 06226400

OEM Warranty Repair Part for Gravely

Not available

06437300

10

WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.84

04331600

11

SWITCH, IGNITION

Part# 04331600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $60.99

03494051

12

HOLD DOWN - BLK

Part# 03494051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

07415800

13

SCR-TAP 10-24X.50 HWH TR YWZC

Part# 07415800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05975900

14

@BLT-HEX M6-1X16 YWZC

Part# 05975900

OEM Warranty Repair Part for Gravely

Not available

06308600

15

WSHR-LK .31X.078 REG YWZC

Part# 06308600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04781700

21

SOLENOID, STARTER (SEALED)

Part# 04781700

Note: (SEALED)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $46.90

04783300

22

CABLE, POS W/(2) 1/4 RING 9.0 LG

Part# 04783300

Note: (2) 1/4 RING 9.0 LG

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06539800

23

NUT-HEX M6-1.00 YWZC

Part# 06539800

OEM Warranty Repair Part for Gravely

Not available

07412000

25

SCR, TAP .25-20X.50

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07505700

26

INSULATOR

Part# 07505700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07517300

27

CABLE, TIE 5.50 LG

Part# 07517300

OEM Warranty Repair Part for Gravely

Not available

08840400

28

CABLE-GROUND .25 X 13.00 X .31 REV A2

Part# 08840400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

09044200

29

MODULE, INTERLOCK

Part# 09044200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $70.38

06219900

30

BLT-RDHDSQNK .25-20X.75 G5 YWZC

Part# 06219900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06530100

31

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05973300

32

@BLT-HEX M8-1.25X20 YWZC

Part# 05973300

OEM Warranty Repair Part for Gravely

Not available

06530100

33

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

02727201

35

CABLE, STARTER 13.00"

Part# 02727201

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

06529700

36

NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Gravely

Not available

06437300

37

WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.84

06306800

38

@, WSHR-LK-EXT.262X.502X.026 YWZC

Part# 06306800

OEM Warranty Repair Part for Gravely

Not available

06306800

39

@, WSHR-LK-EXT.262X.502X.026 YWZC

Part# 06306800

OEM Warranty Repair Part for Gravely

Not available

04782100

40

HARNESS, PROSTANCE WIRING

Part# 04782100 (Superseded to 05113500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $240.59
