994121 - Gravely Pro-Stance 52" Stand-On Mower, Kohler (SN: 040000 - 040999) Deck - Belt, Blades, Baffles, And Spindles Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler

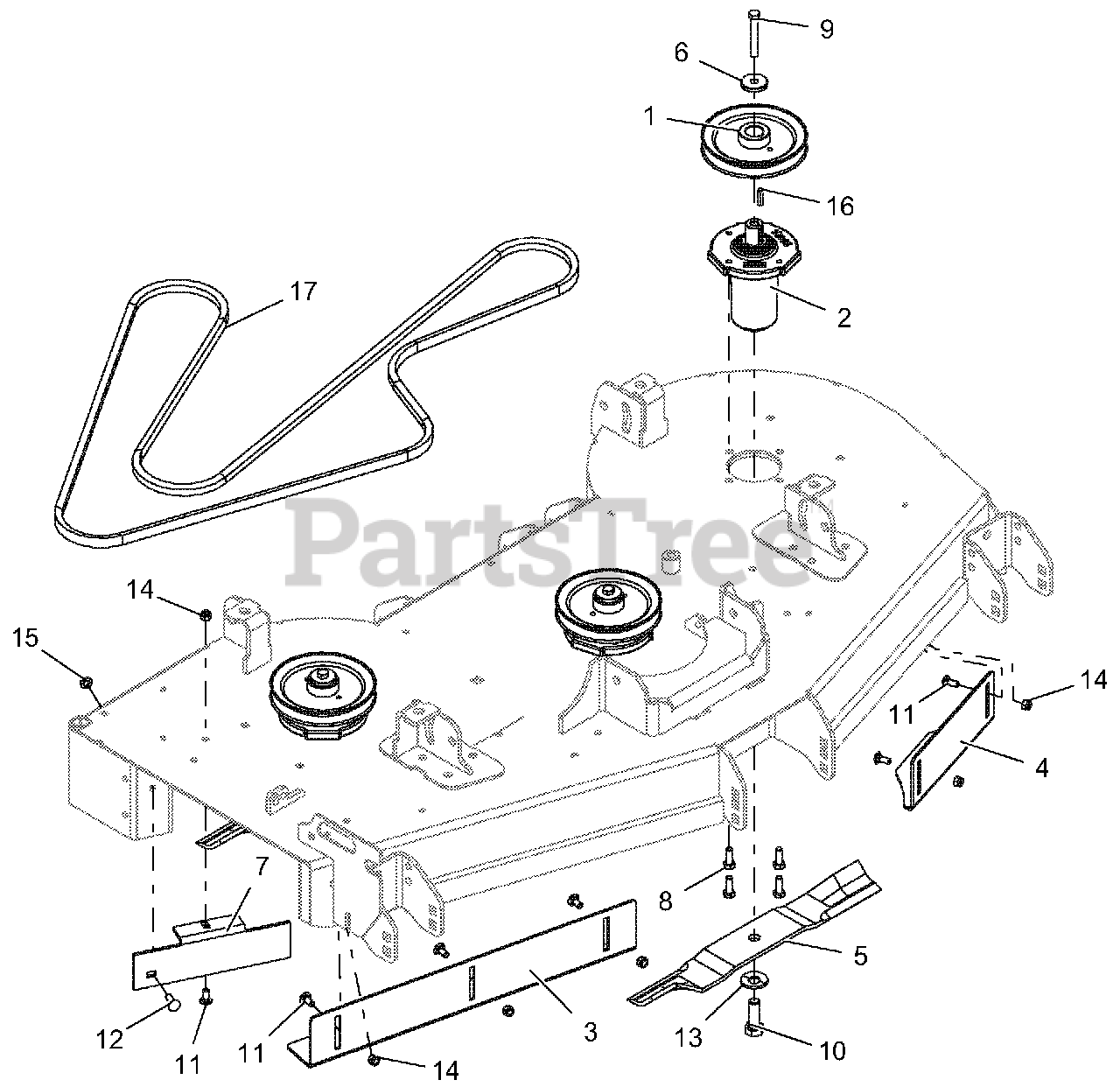

Deck - Belt, Blades, Baffles, And Spindles Parts Diagram

  • Title

1

Gravely 07342967

PULLEY, 1.00 ID X 6.00 OD

$100.99

$

In Stock, only 4 left!

0

2

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

3

Gravely 00952851

52" RH VACUUM BAFFLE - BLK
(Superseded to 05251751)

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 00952951

52" LH VACUUM BAFFLE - BLK
(Superseded to 05251851)

$38.99

$

In Stock, only 1 left!

0

5

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

Note: (HI-LIFT)

$30.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE

$9.99

$

In Stock, Qty 20+

0

7

Gravely 04764053

BAFFLE, 52 IN DISCHARGE
(Superseded to 00440853)

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

14

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

15

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

17

Gravely 07200712

BELT, B-SECTION EPDM RAW EDGE

$133.99

$

In Stock, Qty 12

0
