994121 - Gravely Pro-Stance 52" Stand-On Mower, Kohler (SN: 040000 - 040999) Operator Controls - Panel And Tower Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler

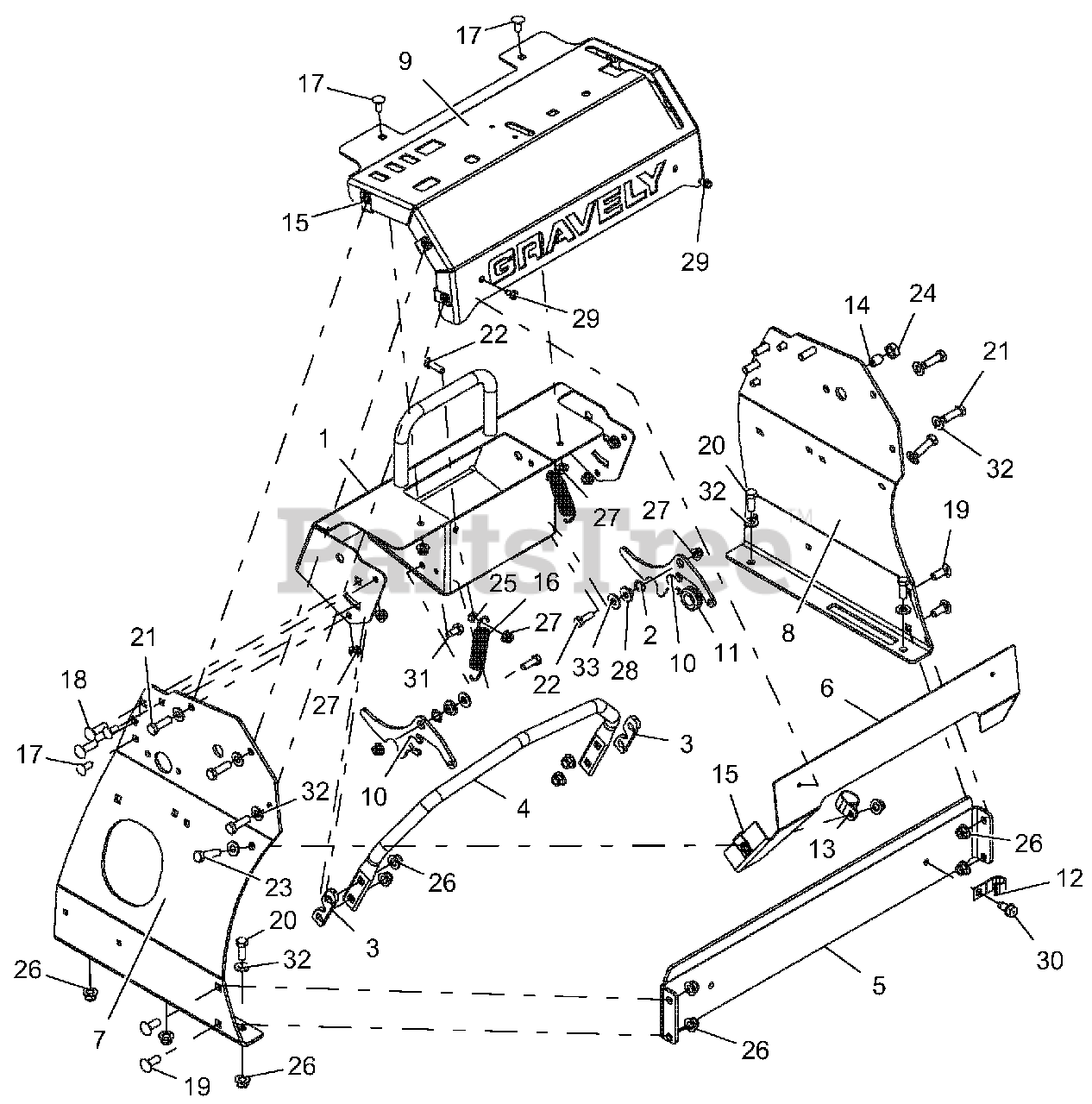

Operator Controls - Panel And Tower Parts Diagram

  • Title

1

Gravely 04723853

WLDMT, CONTROL PANEL PROSTANCE

$248.99

$

Usually ships in 4-12 days

0

2

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.99

$

In Stock, Qty 15

0

3

Gravely 03976751

SHIM, 5 DEG SPEED BAR

$

$

Not available

4

Gravely 04389753

BAR, FORWARD STOP PRO-STANCE

$138.99

$

Usually ships in 4-12 days

0

5

Gravely 04449051

STIFFENER, TOWER

$47.99

$

Usually ships in 4-12 days

0

6

Gravely 04575251

PLATE, FRONT BACKER

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 59401500

KIT, SERVICE RH TOWER

$124.99

$

Usually ships in 4-12 days

0

8

Gravely 04579153

PANEL, PROSTANCE LH TOWER

$138.99

$

Usually ships in 4-12 days

0

9

Gravely 59400700

KIT, SERVICE PROSTANCE DASH

$165.99

$

Usually ships in 4-12 days

0

10

Gravely 04786600

LATCH, PAD MOUNT

$18.99

$

Usually ships in 4-12 days

0

11

Gravely 04814300

GROMMET, SPLIT RUBBER

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.99

$

In Stock, Qty 10

0

17

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

18

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

24

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.99

$

In Stock, Qty 11

0

26

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.99

$

In Stock, Qty 20+

0

29

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$2.49

$

In Stock, Qty 12

0

32

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0
