994122 - Gravely Pro-Stance 52" Stand-On Mower, EFI Propane (SN: 040000 - 040999) LP System Parts Diagram

Pro-Stance 52" Stand-On Mower, EFI Propane

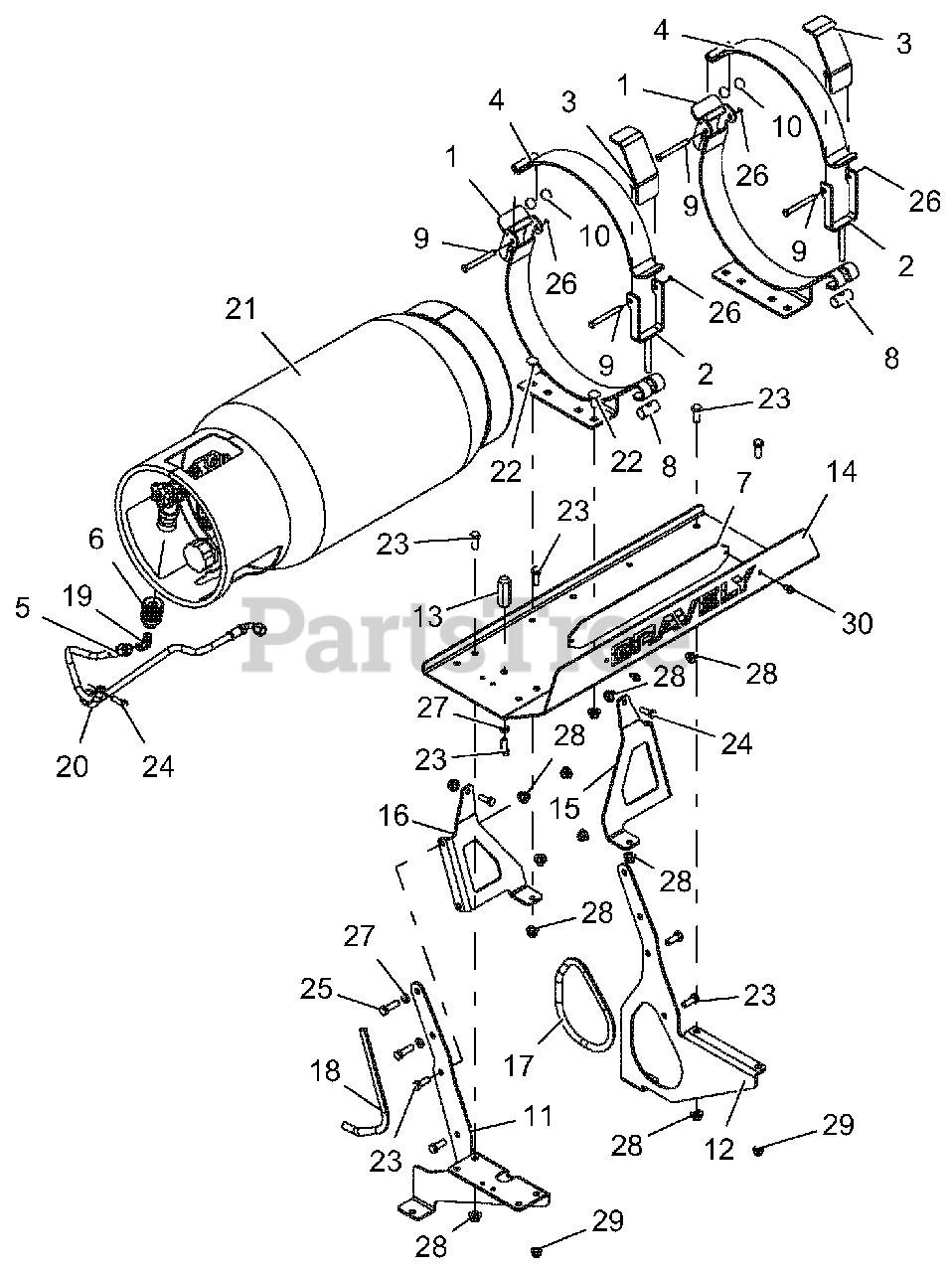

LP System Parts Diagram

  • Title

1

Gravely 00978751

WDMT,CLAMP LP TANK

$

$

Not available

2

Gravely 00978800

WDMT,TOGGLE,LPG TANK CLAMP

$152.99

$

Usually ships in 4-12 days

0

3

Gravely 00978900

WDMT, LEVER, TANK TOGGLE

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 04546951

WLDMT, UPPER, LP TANK CLAMP
(Superseded to 59222700)

$65.99

$

Usually ships in 4-12 days

0

5

Gravely 04575800

HOSE, LPG SS25UL 6-4-6-30.00

$50.99

$

Usually ships in 4-12 days

0

6

Gravely 04215300

FTG, LPG TANK COUPLER LH THRD

$95.99

$

Usually ships in 4-12 days

0

7

Gravely 04416951

BACKER, NAMEPLATE

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 04525500

PIVOT, LP CLAMP HANDLE

$49.99

$

In Stock, Qty 7

0

9

Gravely 04546800

PIN, LP CLAMP

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 04556100

MAGNET, .75X.06, LP CLAMP

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 04693151

EAR, MOUNT RH

$38.99

$

Usually ships in 4-12 days

0

12

Gravely 04693551

EAR, MOUNT LH

$

$

Not available

13

Gravely 04693800

POST, INDICATOR LP TANK

$

$

Not available

14

Gravely 04729400

TRAY, PRO-STANCE

$

$

Not available

15

Gravely 04755851

BRACE, OPERATOR LH

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 04755951

BRACE, OPERATOR RH

$37.99

$

Usually ships in 4-12 days

0

17

Gravely 04757100

TRIM, RUBBER EDGE 17.75"

$

$

Not available

18

Gravely 04768400

TRIM, RUBBER EDGE 11.75

$

$

Not available

19

Gravely 04772800

FTG, 45 1/4-NPTF 9/16-18 45-FL

$

$

Not available

20

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 79214100

TANK, LP, 33.5 LB VAPOR L&G

$

$

Not available

22

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 05706300

RG-RTNG-EXT .312X.025

$1.49

$

In Stock, Qty 11

0

27

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0
