994123 - Gravely Pro-Stance 60" Stand-On Mower (SN: 041000 & Above) Wiring - Electrical Components and Battery Parts Diagram

Pro-Stance 60" Stand-On Mower

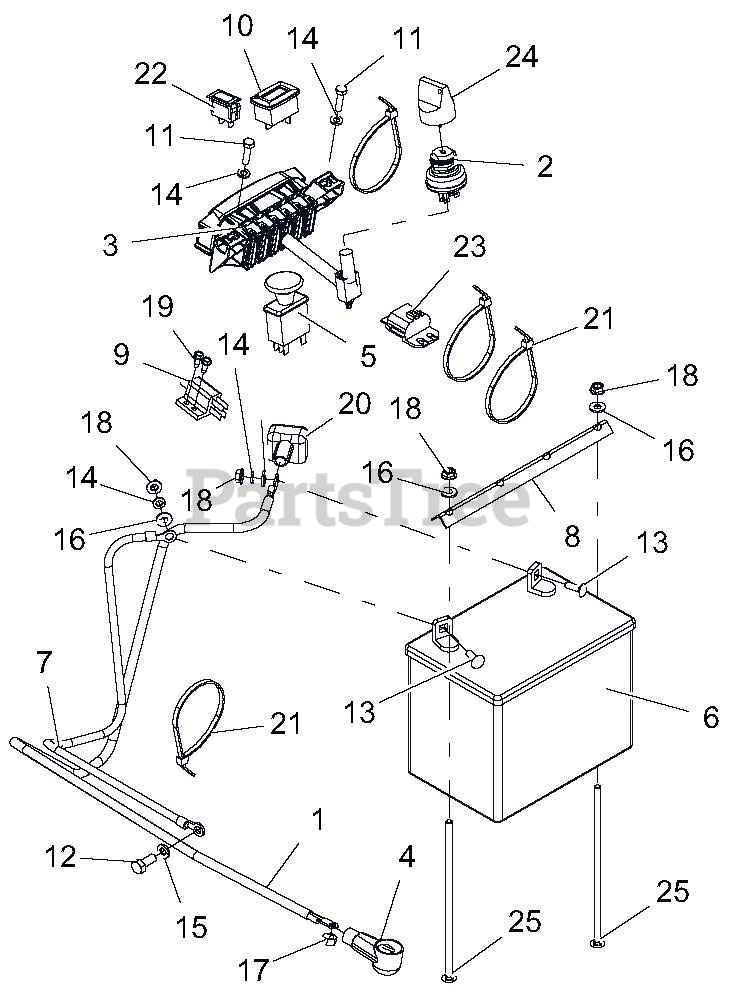

Wiring - Electrical Components and Battery Parts Diagram

  • Title

1

Gravely 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

2

Gravely 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

3

Gravely 04782100

HARNESS, PROSTANCE WIRING
(Superseded to 05113500)

$284.99

$

Usually ships in 4-12 days

0

4

Gravely 00525800

BOOT, BATTERY TERMINAL

Note: RED

$8.49

$

Usually ships in 4-12 days

0

5

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

6

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

7

Gravely 03288200

CABLE, NEGATIVE BATTERY 35.00"

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 03494051

HOLD DOWN - BLK

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

10

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

11

Gravely 05972000

@BLT-HEX M6-1.0X25 YWZC

$

$

Not available

12

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

15

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

17

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

18

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

20

Gravely 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

22

Gravely 08841200

LIGHT, INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

23

Gravely 09044200

MODULE, INTERLOCK

$73.99

$

Usually ships in 4-12 days

0

24

Gravely 09287000

KEY, W/ COVER

$17.99

$

In Stock, Qty 20+

0

25

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 G2 YWZC
(Superseded to 06200424)

$5.49

$

In Stock, Qty 16

0
