994124 - Gravely Pro-Stance 60" Stand-On Mower, EFI (SN: 040000 - 040999) Deck - Deck And Belt Covers Parts Diagram

Pro-Stance 60" Stand-On Mower, EFI

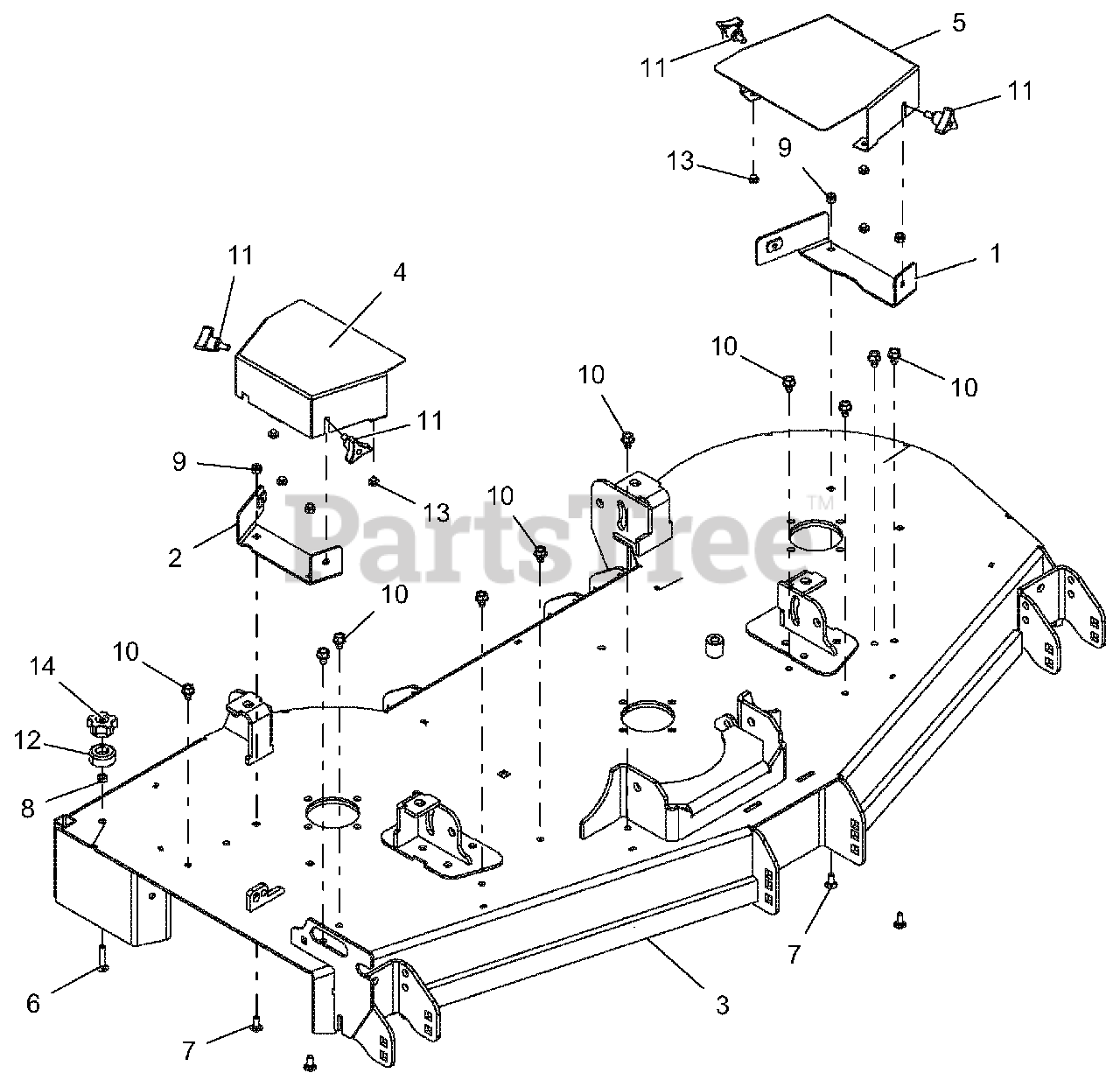

Deck - Deck And Belt Covers Parts Diagram

  • Title

1

Gravely 04792453

WLDMT, RH BRKT BELT GUARD MOUNTING-RED

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 04792553

WLDMT, LH BRKT BELT GUARD MOUNTING-RED

$58.99

$

Usually ships in 4-12 days

0

3

Gravely 59402400

WLDMT, 60 IN DECK WITH DECALS

$949.99

$

Usually ships in 4-12 days

0

4

Gravely 04788353

GUARD, RH DECK BELT

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 04788453

GUARD, LH DECK BELT-RED

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 10

0

7

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

8

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 07500008

KNOB, WING STUD .312-18X.75

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 07534800

KNOB, CLAMPING

$7.99

$

In Stock, Qty 13

0
