994125 - Gravely Pro-Stance 60" Stand-On Mower, CARB (SN: 040000 - 040999) Deck - Deck And Belt Covers Parts Diagram

Pro-Stance 60" Stand-On Mower, CARB

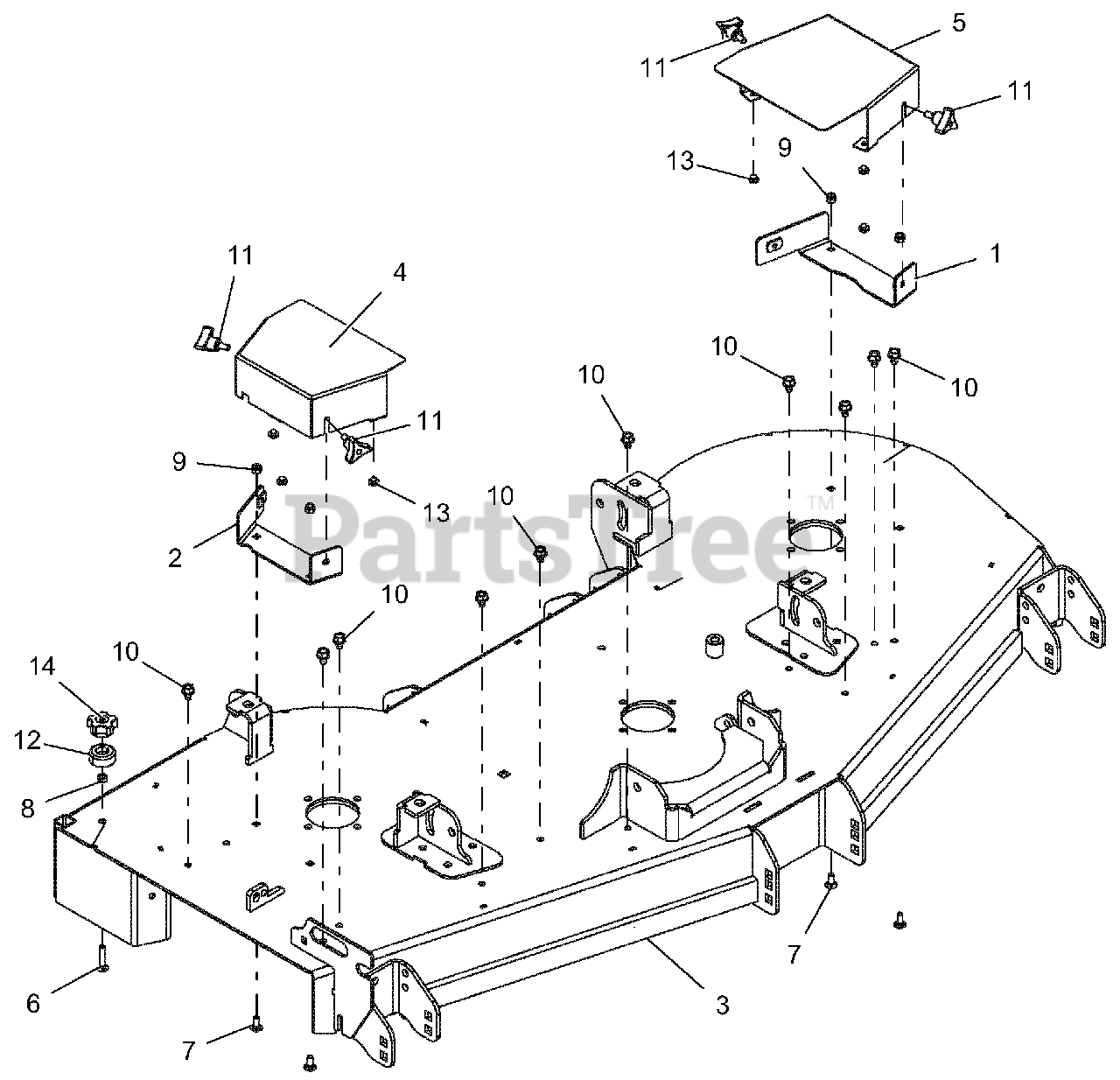

Deck - Deck And Belt Covers Parts Diagram

  • Title

1

Gravely 04792453

BRKT, LH BELT GUARD MOUNTING

$36.99

$

Usually ships in 4-12 days

0

2

Gravely 04792553

BRKT, RH BELT GUARD MOUNTING

$59.99

$

Usually ships in 4-12 days

0

3

Gravely 59402400

KIT, 60 IN DECK WITH DECALS

$

$

Not available

4

Gravely 04788353

GUARD, RH DECK BELT

$42.99

$

In Stock, only 2 left!

0

5

Gravely 04788453

GUARD, LH DECK BELT

$43.99

$

In Stock, only 2 left!

0

6

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

7

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

10

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$6.99

$

In Stock, Qty 20+

0

12

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

13

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

14

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0
