994125 - Gravely Pro-Stance 60" Stand-On Mower, CARB (SN: 040000 - 040999) Fuel System Parts Diagram

Pro-Stance 60" Stand-On Mower, CARB

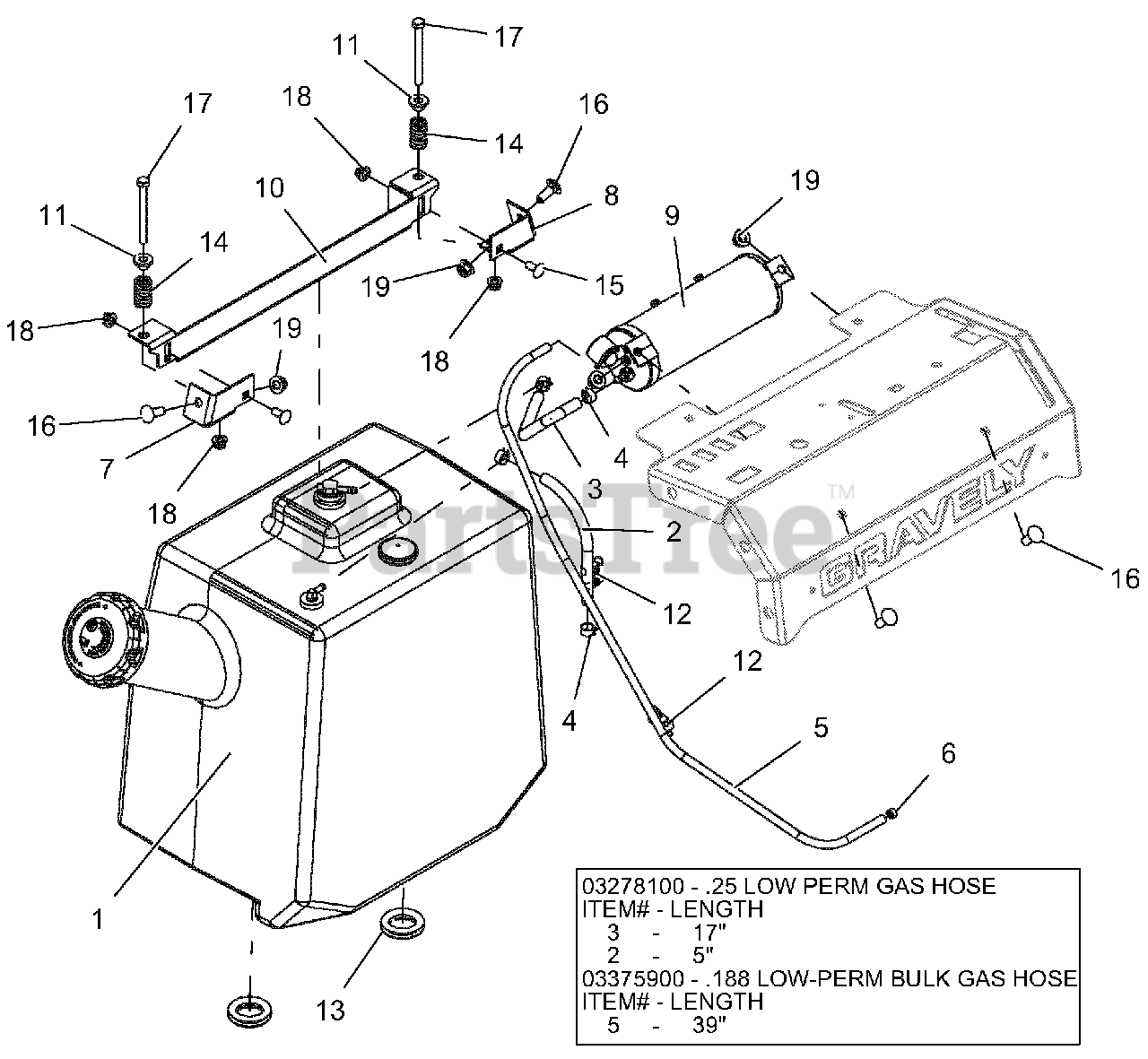

Fuel System Parts Diagram

  • Title

1

Gravely 04358300

ASSY, EPA PROSTANCE FUEL TANK

$593.99

$

Usually ships in 4-12 days

0

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

7

Gravely 04503551

MOUNT, FUEL TANK HOLD DOWN-RH

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 04503651

MOUNT, FUEL TANK HOLD DOWN-LH

$5.49

$

Usually ships in 4-12 days

0

9

Gravely 04545900

CANISTER, CARBON 9.3G CAP.

$80.99

$

Usually ships in 4-12 days

0

10

Gravely 04745551

HOLDDOWN, FUEL TANK

$23.99

$

Usually ships in 4-12 days

0

11

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, only 3 left!

0

15

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 05971700

BLT-HEX .31-18X3.25 GR5 YWZC

$

$

Not available

18

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
