994125 - Gravely Pro-Stance 60" Stand-On Mower, CARB (SN: 040000 - 040999) Transmission - Left Side Parts Diagram

Pro-Stance 60" Stand-On Mower, CARB

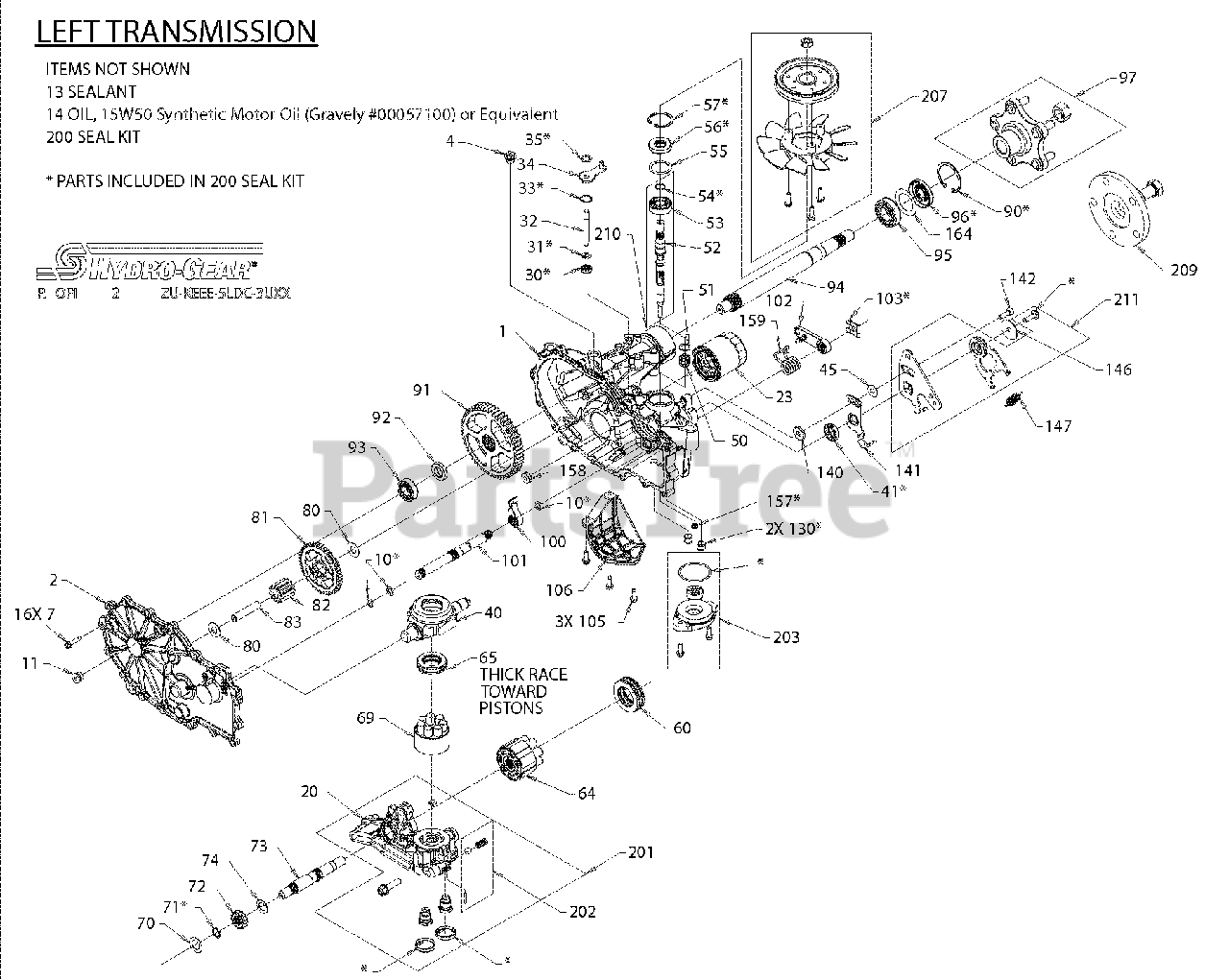

Transmission - Left Side Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, LH, CHRG, CNTL

Note: Hydro-Gear P/N 72026

$

$

Not available

2

KIT, HOUSING, SIDE, LH

Note: Hydro-Gear P/N 71992

$

$

Not available

4

PLUG, 9/16-18 (PLASTIC)

Note: Hydro-Gear P/N 9005200-5600

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear P/N 53246

$2.99

$

In Stock, only 1 left!

0

10

O-RING-111 .103 X .424

Note: Hydro-Gear P/N 51804

$

$

Not available

11

PLUG 9/16-18 (METAL)

Note: Hydro-Gear P/N 9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear P/N 50928

$171.99

$

Usually ships in 4-12 days

0

14

OIL, 15W50 SYNTHETIC MOTOR OIL (GRAVELY #00057100) OR EQUIVALENT

Note: N/A

$

$

Not available

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear P/N 52114

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear P/N 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear P/N 51628

$4.49

$

In Stock, Qty 10

0

32

ROD, BYPASS

Note: Hydro-Gear P/N 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear P/N 51627

$

$

Not available

34

Gravely 21548901

HG BYPASS ARM (52370)

Note: Hydro-Gear P/N 52370

$12.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear P/N 51630

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear P/N 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear P/N 51140

$9.99

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

Note: Hydro-Gear P/N 44130

$4.49

$

Usually ships in 4-12 days

0

50

Gravely 08621500

SPRING. BLOCK

Note: Hydro-Gear P/N 2003014

$1.99

$

In Stock, Qty 6

0

51

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear P/N 2003017

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear P/N 50951

$6.49

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear P/N 51161

$15.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear P/N 50329

$7.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

Note: Hydro-Gear P/N 51462

$32.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

Note: Hydro-Gear P/N 71579

$78.99

$

In Stock, only 2 left!

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

Note: Hydro-Gear P/N 53502

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

Note: Hydro-Gear P/N 71971

$87.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear P/N 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear P/N 44145

$1.99

$

Usually ships in 4-12 days

0

72

GEAR, 13T, STEEL

Note: Hydro-Gear P/N 52342

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear P/N 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear P/N 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear P/N 50132

$

$

Not available

81

GEAR, 46T

Note: Hydro-Gear P/N 52343

$

$

Not available

82

GEAR, 11T, STEEL

Note: Hydro-Gear P/N 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear P/N 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear P/N 50859

$9.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear P/N 52108

$

$

Not available

92

SPACER .75 x 1.32 x .257

Note: Hydro-Gear P/N 53336

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

Note: Hydro-Gear P/N 53071

$

$

Not available

94

SHAFT, AXLE

Note: Hydro-Gear P/N 53528

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear P/N 53656

$25.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear P/N 53699

$18.99

$

In Stock, Qty 7

0

97

Gravely 21544023

HUB, HYDROGEAR P/N 71691

Note: Hydro-Gear P/N 71691

$92.99

$

In Stock, only 1 left!

0

100

PAWL, BRAKE

Note: Hydro-Gear P/N 52766

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear P/N 53539

$

$

Not available

102

Gravely 21548906

HG ACTUATING KIT HANDLE

Note: Hydro-Gear P/N 71958

$26.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

Note: Hydro-Gear P/N 52027

$6.49

$

In Stock, only 2 left!

0

105

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear P/N 50752

$2.49

$

Usually ships in 4-12 days

0

106

GUARD, FILTER, LH

Note: Hydro-Gear P/N 53644

$

$

Not available

130

TUBE, CONNECTING

Note: Hydro-Gear P/N 52157

$

$

Not available

140

Gravely 21543870

SPACER

Note: Hydro-Gear P/N 52527

$

$

Not available

141

Gravely 21543867

ARM, NEUTRAL LEFT

Note: Hydro-Gear P/N 51946

$22.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear P/N 51616

$

$

Not available

146

Gravely 21543871

WASHER

Note: Hydro-Gear P/N 51950

$7.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear P/N 51833

$15.99

$

Usually ships in 4-12 days

0

157

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear P/N 53696

$15.99

$

Usually ships in 4-12 days

0

158

Gravely 21543799

MAGNET, RING

Note: Hydro-Gear P/N 51100

$2.99

$

Usually ships in 4-12 days

0

159

SPRING, TORSION CW

Note: Hydro-Gear P/N 53483

$

$

Not available

164

SPACER, 1.719 x 2.039 x .021

Note: Hydro-Gear P/N 53514

$

$

Not available

200

Gravely 21544034

HG SEAL KIT (71976)

Note: Hydro-Gear P/N 71976

$60.99

$

Usually ships in 4-12 days

0

201

Gravely 21548909

HG CENTER SECTION KIT (71973)

Note: Hydro-Gear P/N 71973

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear P/N 71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

Note: Hydro-Gear P/N 71977

$112.99

$

Usually ships in 4-12 days

0

207

KIT, FAN & PULLEY

Note: Hydro-Gear P/N 71900

$

$

Not available

209

HUB PULLER, 5 BOLT

Note: Hydro-Gear P/N 71784

$

$

Not available

210

Gravely 21544039

INPUT SHAFT HG 71978

Note: Hydro-Gear P/N 71978

$

$

Not available

211

KIT, RTN, BIDIRECTIONAL

Note: Hydro-Gear P/N 71592

$

$

Not available
