994127 - Gravely Pro-Stance 48" Stand-On Mower, CARB (SN: 040000 - 040999) Deck - Discharge Chute Parts Diagram

Pro-Stance 48" Stand-On Mower, CARB

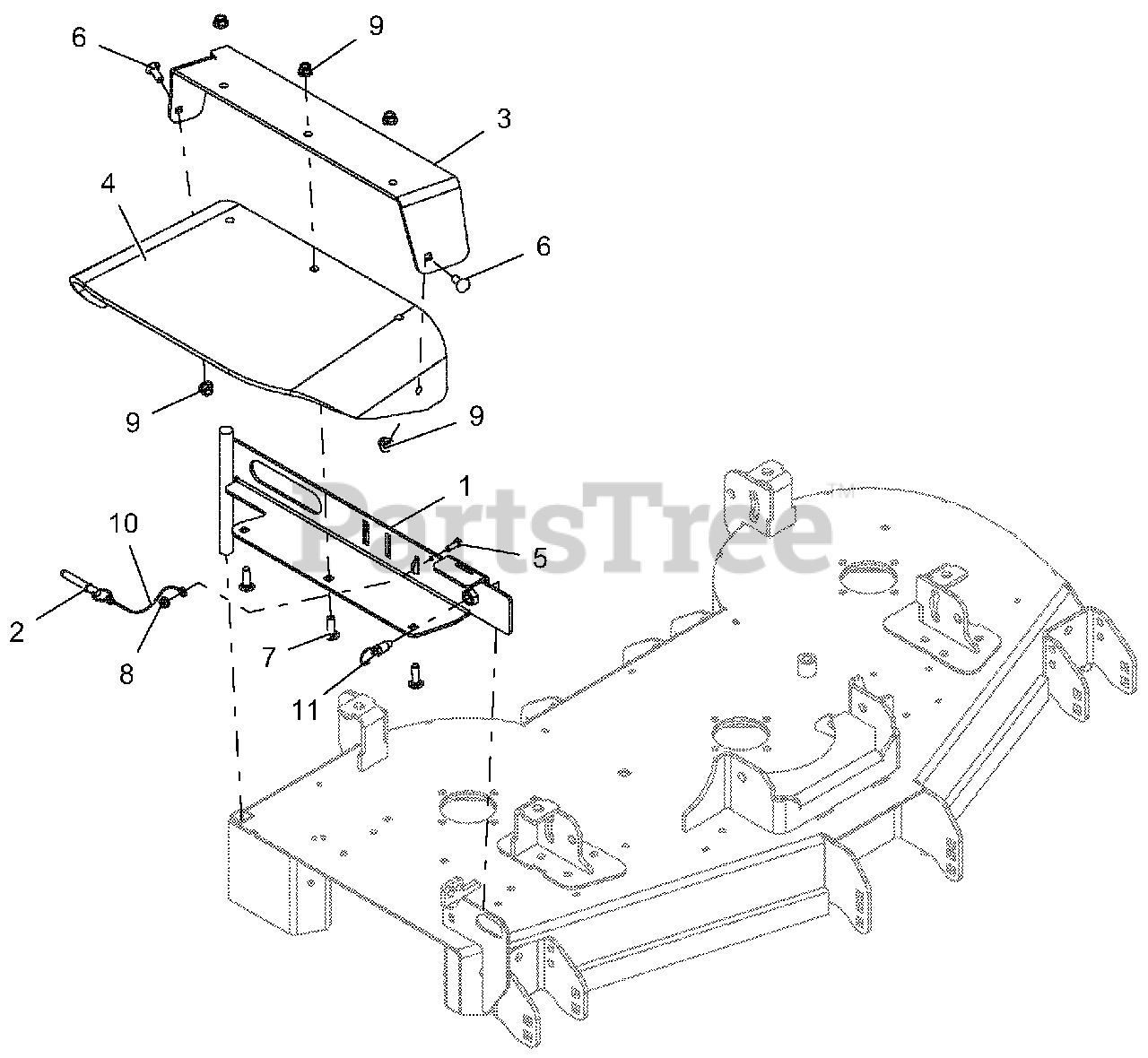

Deck - Discharge Chute Parts Diagram

  • Title

1

Gravely 00980453

WLDMT, 44"-48" DISCH CHUTE MTG-RED
(Superseded to 04757453)

$112.99

$

Usually ships in 4-12 days

0

2

Gravely 01593500

PIN, SPRING BALL .375 OD X 1.50

$5.99

$

In Stock, only 3 left!

0

3

Gravely 59218500

DISCHARGE CHUTE SUPPORT W/SAFETY DECAL-RED

$102.99

$

Usually ships in 4-12 days

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 3 left!

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

6

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

9

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0
