994127 - Gravely Pro-Stance 48" Stand-On Mower, CARB (SN: 040000 - 040999) Tires And Transaxles Parts Diagram

Pro-Stance 48" Stand-On Mower, CARB

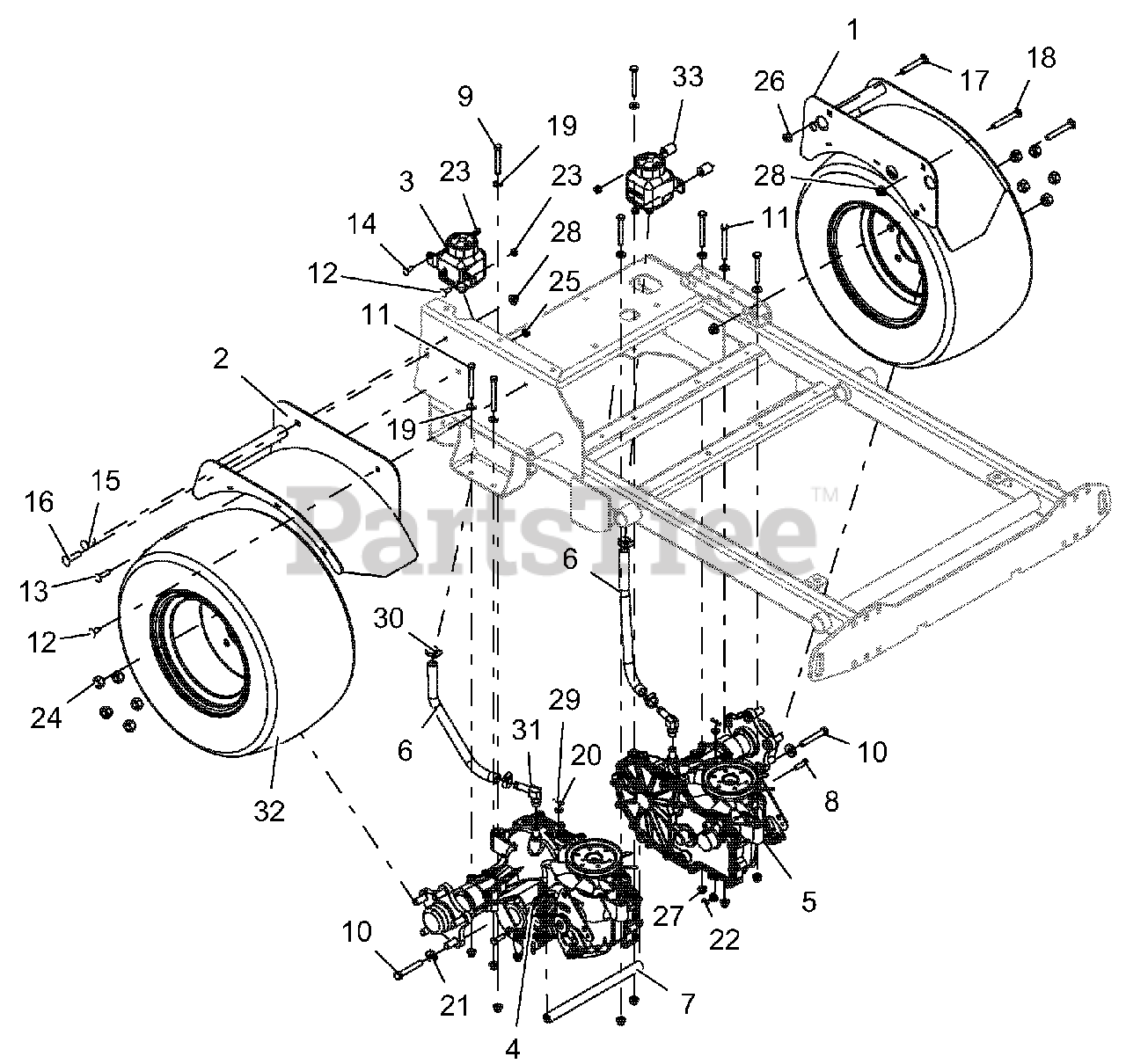

Tires And Transaxles Parts Diagram

  • Title

1

Gravely 04455853

WLDMT, LH FENDER-RED

$148.99

$

Usually ships in 4-12 days

0

2

Gravely 04455953

WLDMT, RH FENDER-RED

$112.99

$

Usually ships in 4-12 days

0

3

Gravely 02970200

TANK, EXPANSION ZT2800

$38.99

$

In Stock, Qty 10

0

4

Gravely 04350800

TRANSAXLE, 3400, PRO-STANCE, RH
(Superseded to 04828400)

$1939.99

$

Usually ships in 4-12 days

0

5

Gravely 04350900

TRANSAXLE, 3400, PRO-STANCE, LH
(Superseded to 04828300)

$1939.99

$

Usually ships in 4-12 days

0

6

Gravely 04439200

HOSE, HYD OVERFLOW

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 04448300

SHAFT, CROSS BRACE

$60.99

$

In Stock, Qty 7

0

8

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

9

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5 Y
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

16

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5 Y
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5 Y
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

18

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5 Y
(Superseded to 06200316)

$4.99

$

In Stock, Qty 17

0

19

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

21

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

23

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

24

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

30

Gravely 06923500

CLAMP, .88 DIA HOSE

$2.49

$

In Stock, Qty 6

0

31

Gravely 07001528

FITTING, HYD (90 DEG)

Note: (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 07100831

ASSM TIREWHEEL, 20X10.50X.8

$186.99

$

In Stock, only 1 left!

0

33

Gravely 09235700

ECCENTRIC

$5.49

$

Usually ships in 4-12 days

0
