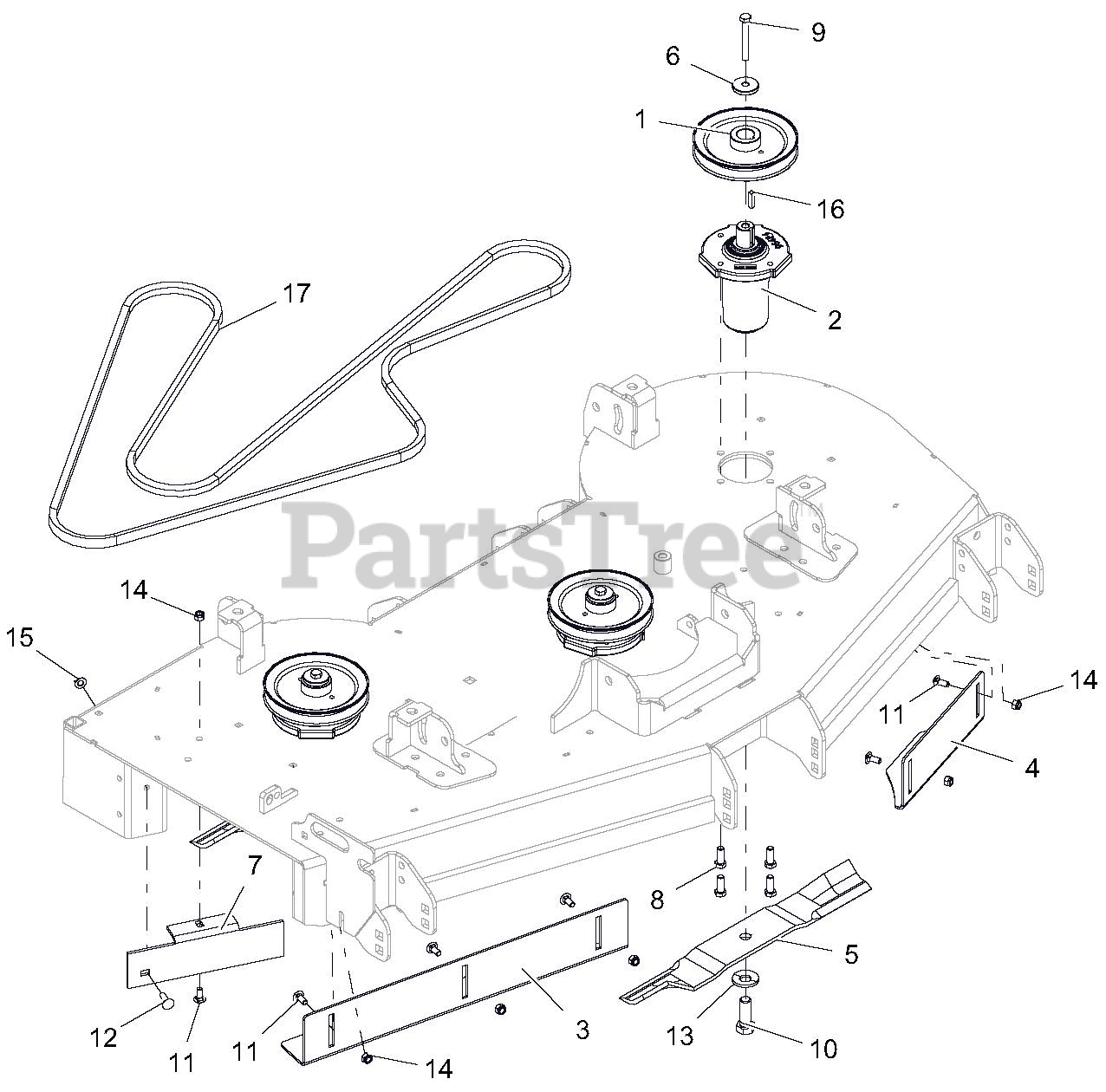

994128 - Gravely Pro-Stance 52" Stand-On Mower (SN: 041000 & Above) Deck - Belt, Blades, Baffles, And Spindles Parts Diagram

Pro-Stance 52" Stand-On Mower

Deck - Belt, Blades, Baffles, And Spindles Parts Diagram

  • Title

1

Gravely 07342967

PULLEY, V - 1" ID X 6.00" OD

$95.99

$

Usually ships in 4-12 days

0

2

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

3

Gravely 00952851

BAFFLE, 52" RH VACUUM-BLACK
(Superseded to 05251751)

$44.99

$

Usually ships in 4-12 days

0

4

Gravely 00952951

BAFFLE, 52" LH VACUUM-BLACK
(Superseded to 05251851)

$37.99

$

In Stock, only 1 left!

0

5

Gravely 00450300

BLADE, 18.00" MOVER (HI-LIFT)

Note: (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$9.49

$

In Stock, Qty 15

0

7

Gravely 04764053

BAFFLE, 52 IN DISCHARGE
(Superseded to 00440853)

$38.99

$

Usually ships in 4-12 days

0

8

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$5.49

$

In Stock, Qty 20+

0

14

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

17

Gravely 07200712

V-BELT, B SECTION RAW EDGE

$127.99

$

Usually ships in 4-12 days

0
