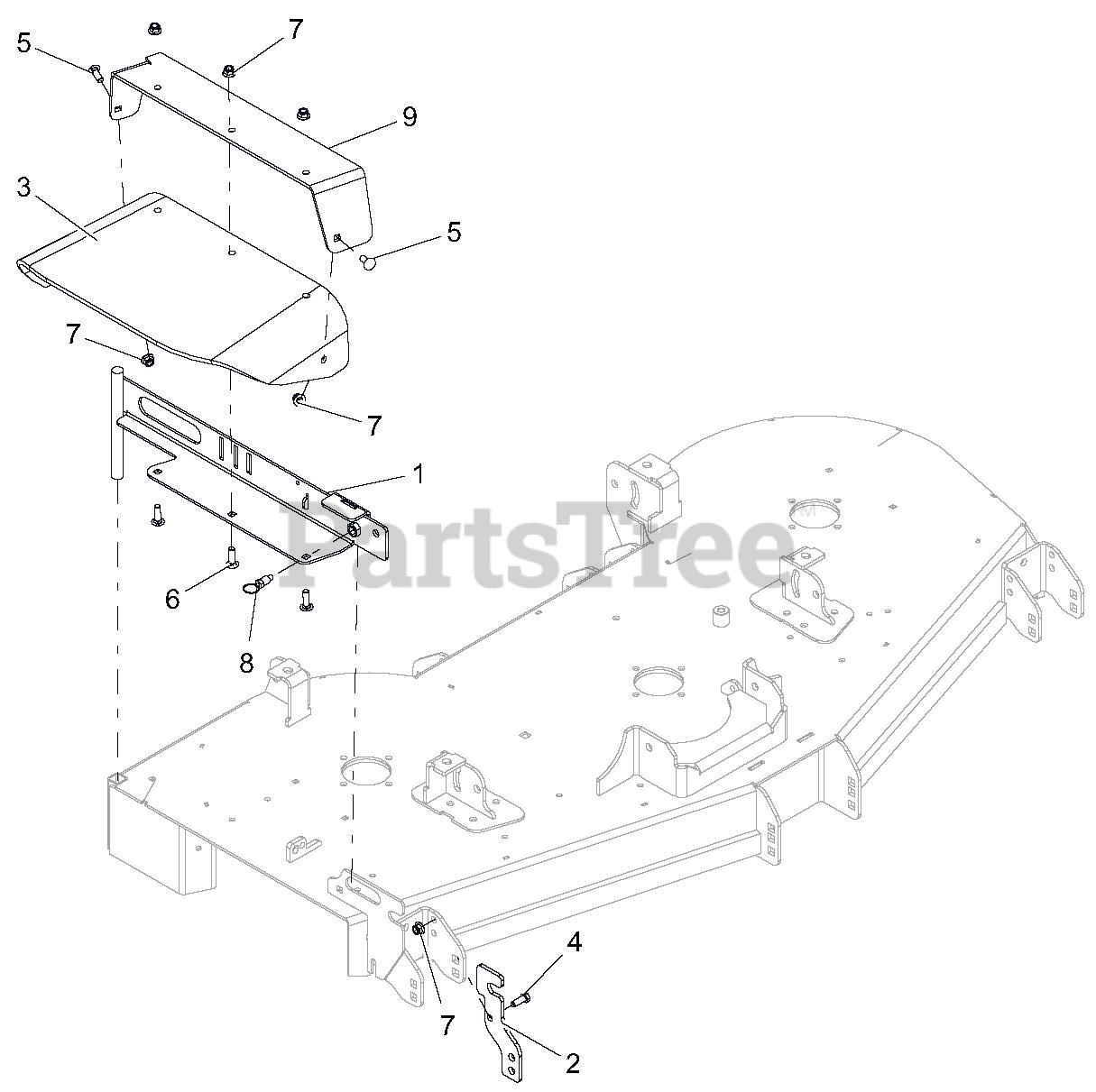

994128 - Gravely Pro-Stance 52" Stand-On Mower (SN: 041000 & Above) Deck - Discharge Chute Parts Diagram

Pro-Stance 52" Stand-On Mower

Deck - Discharge Chute Parts Diagram

  • Title

1

Gravely 00980553

WLDMT, 52"-60" DISCH CHUTE MTG
(Superseded to 04727953)

Note: RED

$131.99

$

In Stock, only 1 left!

0

2

Gravely 00474753

CHUTE STORAGE BRACKET

Note: RED

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 10

0

4

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

6

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 8

0

9

Gravely 59218500

DISCHARGE CHUTE SUPPORT W/SAFETY DECAL

Note: RED

$104.99

$

Usually ships in 4-12 days

0
