994128 - Gravely Pro-Stance 52" Stand-On Mower (SN: 041000 & Above) Drive Belt And Clutch Parts Diagram

Pro-Stance 52" Stand-On Mower

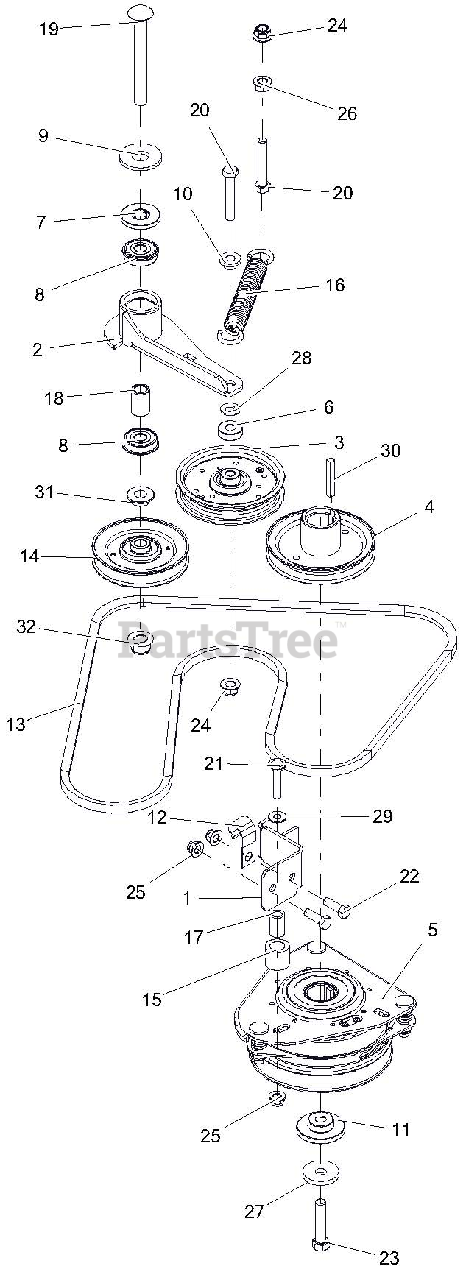

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 04807551

WLDMT, CLUTCH STOP

Note: BLACK

$40.99

$

Usually ships in 4-12 days

0

2

Gravely 04720551

WLDMT, IDLER ARM GROUND DRIVE

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 07300101

ASM, IDLER 4"

$64.99

$

In Stock, Qty 20+

0

4

Gravely 07343067

SHEAVE, ENGINE 4.50 X 1.127

Note: BLACK

$161.99

$

Usually ships in 4-12 days

0

5

Gravely 03789900

CLUTCH, ELEC OGURA GT1A-AR03

$370.99

$

In Stock, only 2 left!

0

6

Gravely 04448100

SPCR, .375 X 1.00 X .342

$23.99

$

In Stock, only 2 left!

0

7

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 15

0

8

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$15.99

$

In Stock, Qty 20+

0

9

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, only 4 left!

0

10

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05501206

BSHG, -FLG .469 x 1.06 x .574 x 2.0

$19.99

$

In Stock, only 4 left!

0

12

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 07226400

BELT, V- A COGGED

$53.99

$

In Stock, Qty 20+

0

14

Gravely 07344400

SHEAVE, IDLER -V .50 X 4.000

$36.99

$

In Stock, only 1 left!

0

15

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$6.49

$

In Stock, Qty 9

0

16

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$6.49

$

In Stock, only 4 left!

0

18

Gravely 09357700

SPACER, .510 X .750 X 1.148

$5.49

$

In Stock, Qty 20+

0

19

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 YWZC
(Superseded to 06200505)

$

$

Not available

20

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

22

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

23

Gravely 05901530

BLT-HEX .44-20X2.00 GR8 YWZC NYTORQ
(Superseded to 05901916)

$3.99

$

In Stock, Qty 11

0

24

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 2 left!

0

28

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

31

Gravely 05501135

BSHG, FLANGE .515X.750X.420X1.12

$18.99

$

Usually ships in 4-12 days

0

32

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0
