994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Fuel System - Non-CARB Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

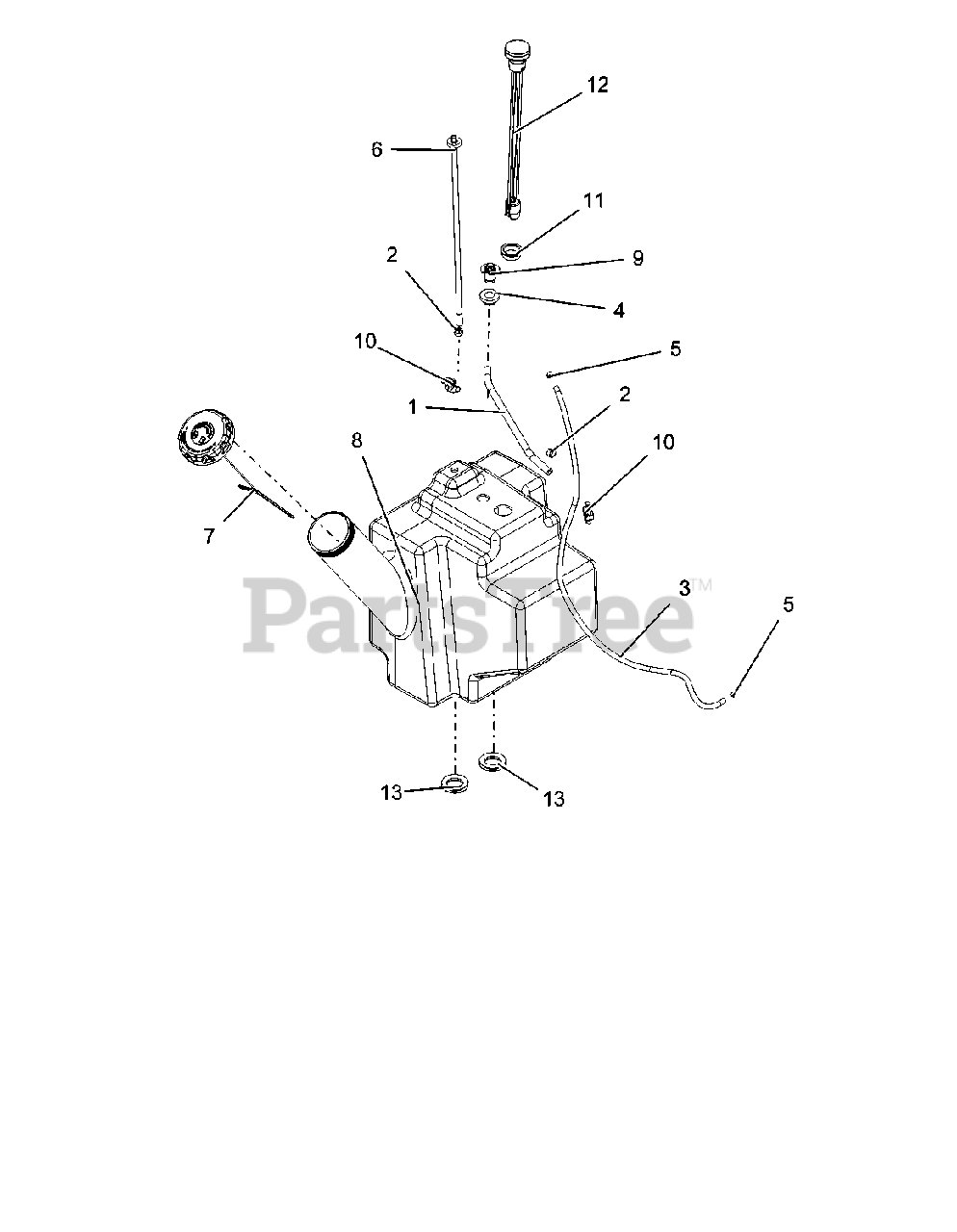

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

5

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 04446900

ASS'Y, PROSTANCE FUEL PICK-UP

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

8

Gravely 04594700

ASM, FUEL TANK

$271.99

$

Usually ships in 4-12 days

0

9

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, only 4 left!

0

10

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, Qty 13

0

12

Gravely 07500311

GAUGE, REMOTE FUEL SEALED 15"

$

$

Not available

13

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0
