994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 010000 - 019999) Deck, Belt, Blades And Spindles Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

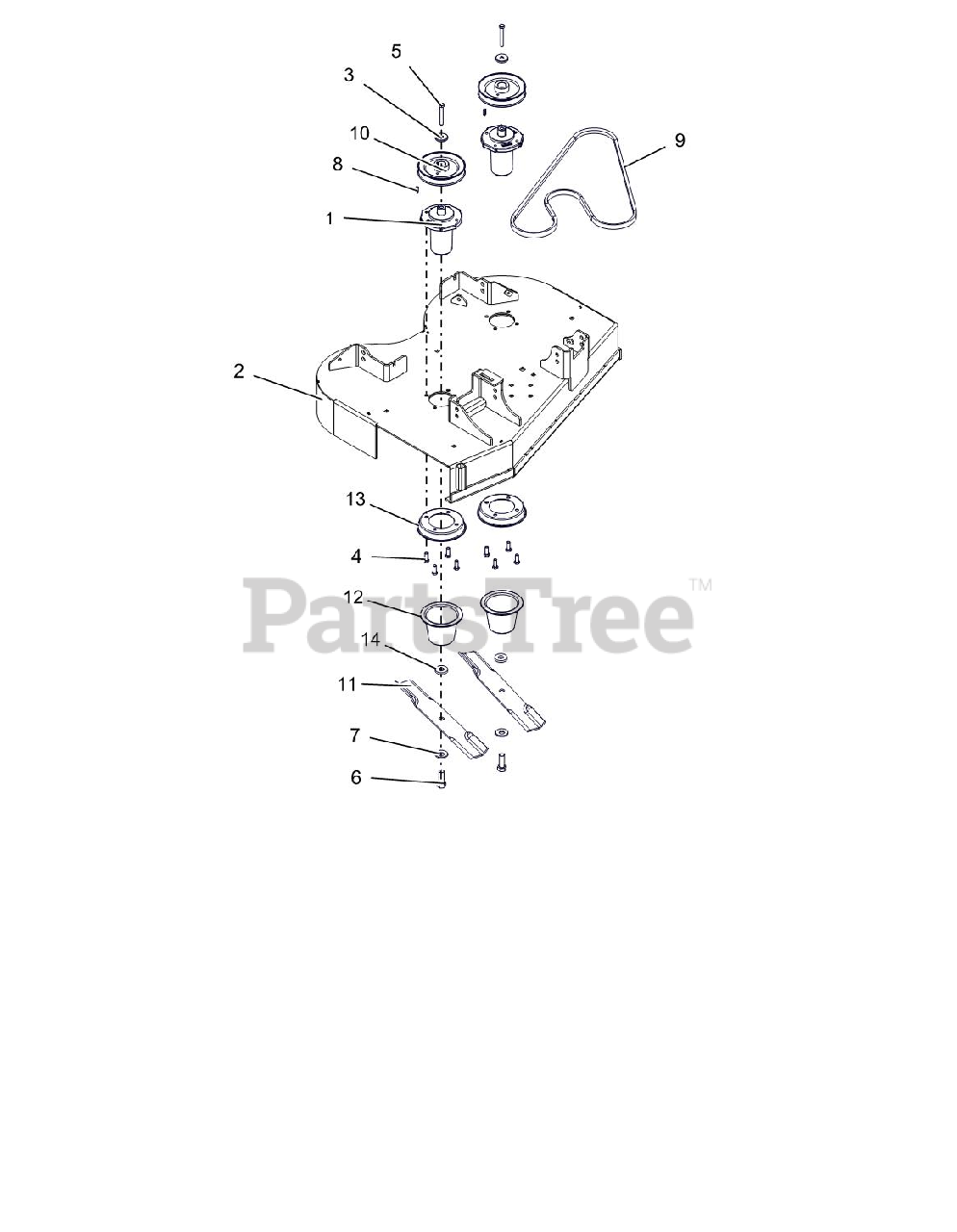

Deck, Belt, Blades And Spindles Parts Diagram

  • Title

1

Gravely 59225800

ASM, MAINT FREE SPINDLE-SHORT
(Superseded to 59114000)

$273.99

$

In Stock, Qty 14

0

2

Gravely 58809900

ASM, 36" DECK W/DECALS

$

$

Not available

3

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 11

0

4

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

8

Gravely 06605500

KEY-STR .25X.75X.25

$2.99

$

In Stock, only 1 left!

0

9

Gravely 07200640

BELT, 5L

$66.99

$

In Stock, Qty 9

0

10

Gravely 07337267

PULLEY, V-1"ID X 5.75" OD

$70.99

$

Usually ships in 4-12 days

0

11

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 16

0

12

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

13

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

14

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0
