994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 010000 - 019999) Operator Platform Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

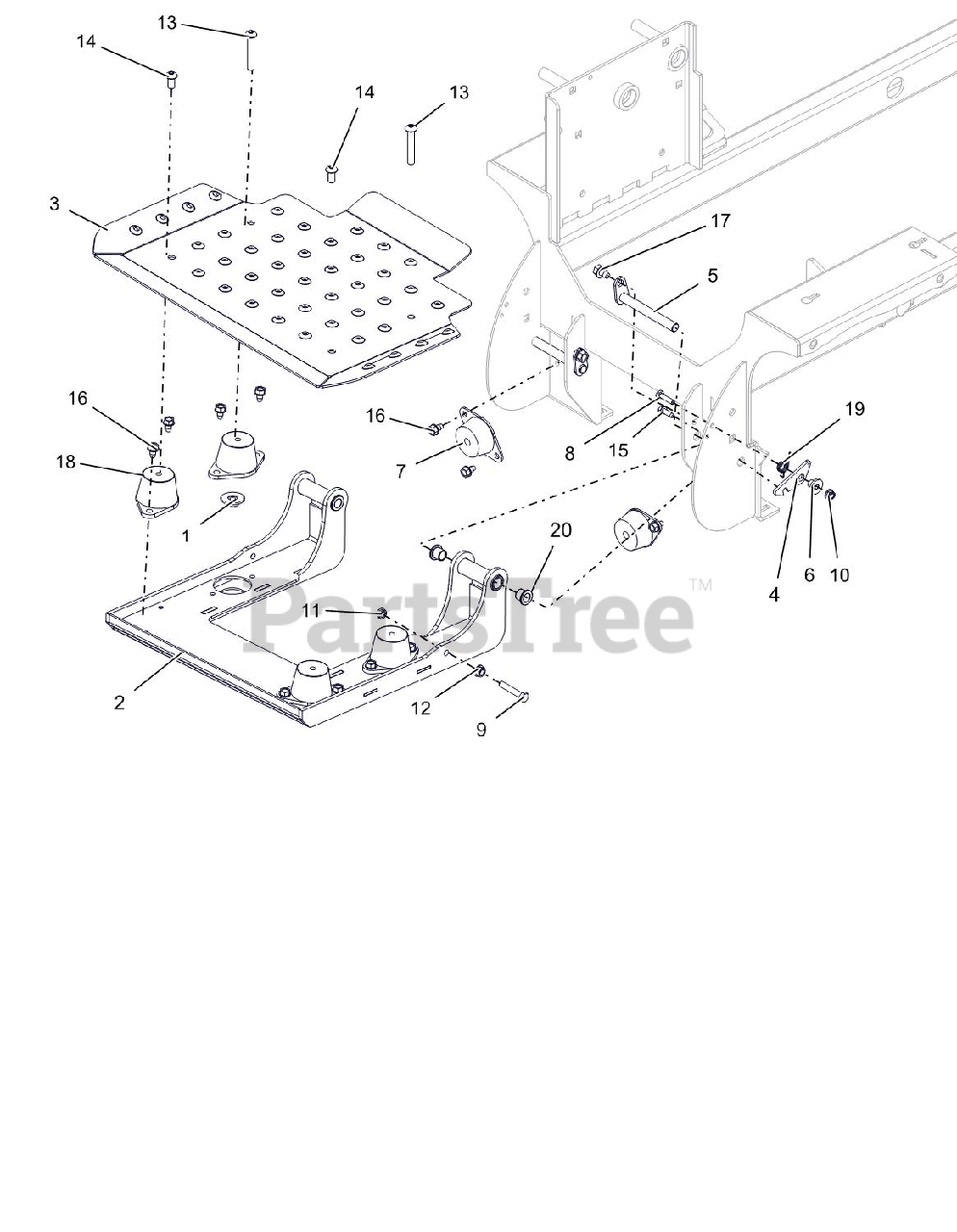

Operator Platform Parts Diagram

  • Title

1

Gravely 04443000

WLDMT, SEAT RETAINER

$22.99

$

In Stock, only 3 left!

0

2

Gravely 04593453

WLDMT, OPERATOR PLATFORM

$268.99

$

Usually ships in 4-12 days

0

3

Gravely 04593553

PLATE, OPERATOR PLATFORM

$103.99

$

Usually ships in 4-12 days

0

4

Gravely 04694853

LATCH, PLATFORM

$8.99

$

Usually ships in 4-12 days

0

5

Gravely 04696200

WLDMT, PIN

$50.99

$

Usually ships in 4-12 days

0

6

Gravely 04711700

BUSH, FLG .26 .X .42 X .88

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

9

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

10

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

11

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 07001725

BLT-BTHD-SOCKET .38-16X2.25FTH

$3.99

$

In Stock, only 3 left!

0

14

Gravely 07069200

BLT-BTHD-SOCKET .38-16X.75

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

16

Gravely 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 07500213

MOUNT, ISOLATOR

$45.99

$

In Stock, only 3 left!

0

19

Gravely 08300014

SG-TORS

$1.49

$

In Stock, Qty 5

0

20

Gravely 00200116

BRG, FLG .500X.620X.500 BRNZ

$3.49

$

In Stock, only 2 left!

0
