994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 010000 - 019999) Tower Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

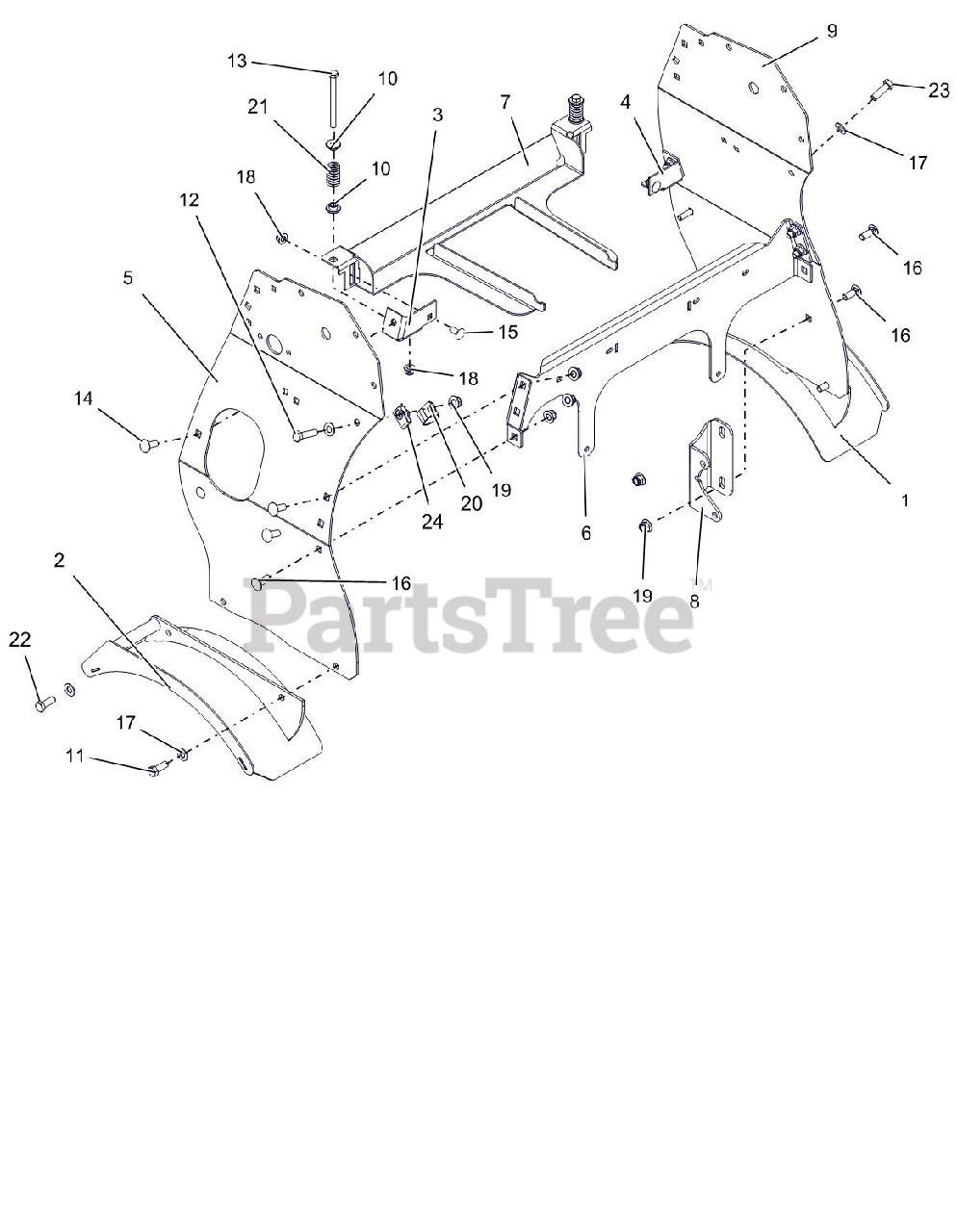

Tower Parts Diagram

  • Title

1

Gravely 04687353

BRKT, LH FENDER

$87.99

$

Usually ships in 4-12 days

0

2

Gravely 04687453

BRKT, RH FENDER

$72.99

$

Usually ships in 4-12 days

0

3

Gravely 04503551

MOUNT, FUEL TANK HOLD DOWN-RH

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 04503651

MOUNT, FUEL TANK HOLD DOWN-LH

$5.49

$

Usually ships in 4-12 days

0

5

Gravely 59400800

KIT, SERVICE RH TOWER & DECAL

$122.99

$

Usually ships in 4-12 days

0

6

Gravely 04683151

BRKT, CONTROL TOWER STIFFENER

$78.99

$

Usually ships in 4-12 days

0

7

Gravely 04711351

HOLDDOWN, FUEL TANK

$52.99

$

Usually ships in 4-12 days

0

8

Gravely 04712951

BRKT, TOWER SUPPORT

$44.99

$

Usually ships in 4-12 days

0

9

Gravely 04595153

SIDE, LH PROSTANCE TOWER

$131.99

$

Usually ships in 4-12 days

0

10

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 7

0

11

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 14

0

12

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, only 4 left!

0

13

Gravely 05965000

BLT-HEX .312-18X3.75 YWZC
(Superseded to 05901936)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 8

0

17

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 5

0

22

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 14

0

23

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 1 left!

0
