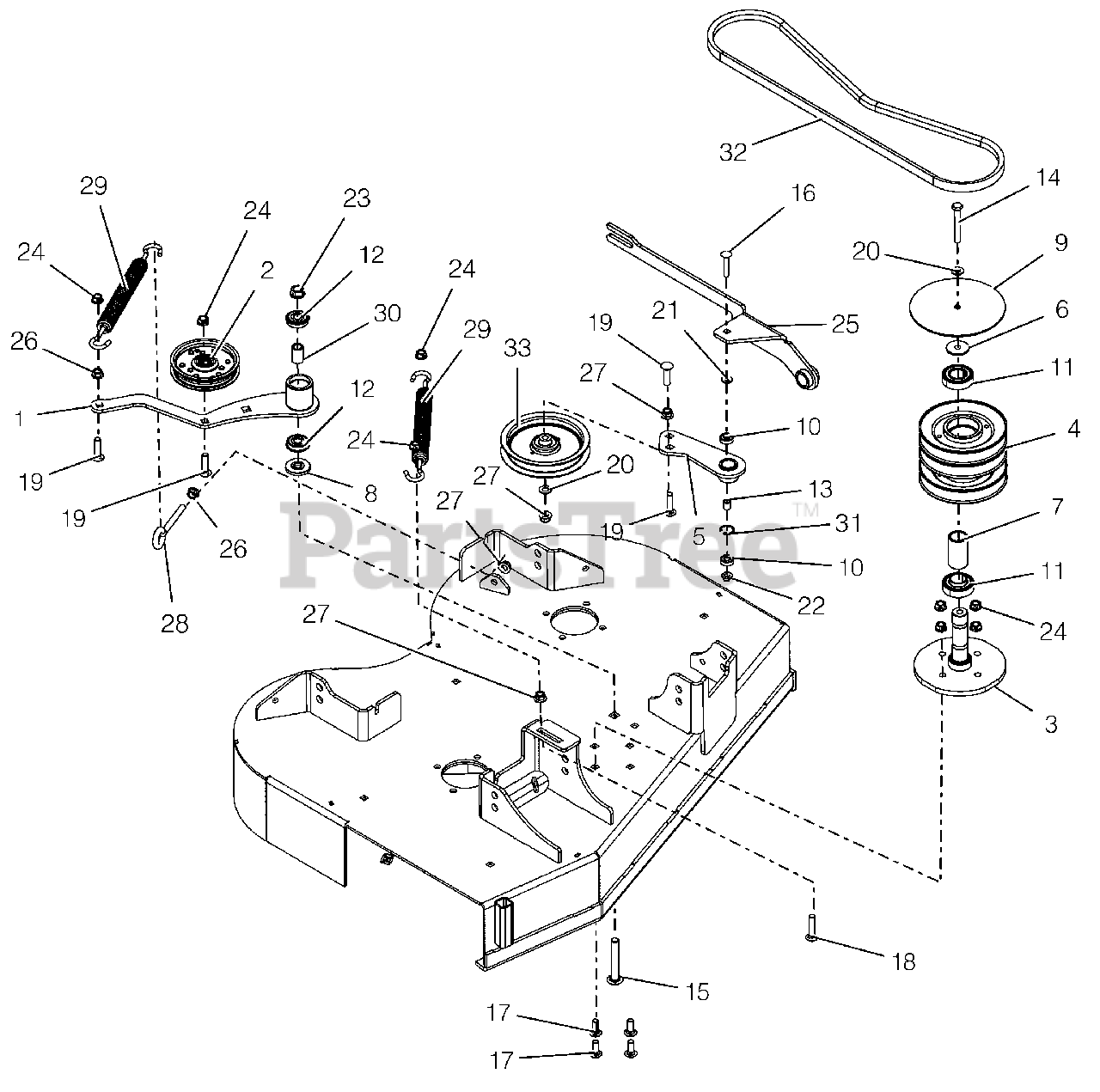

994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 020000 & Above) Idlers, Sheaves And Mount Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

Idlers, Sheaves And Mount Parts Diagram

  • Title

1

Gravely 04650551

WLDMT, IDLER ARM

$57.99

$

Usually ships in 4-12 days

0

2

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$64.99

$

In Stock, Qty 20+

0

3

Gravely 04655251

WLDMT, JACKSHAFT SHAFT

$224.99

$

Usually ships in 4-12 days

0

4

Gravely 07341067

WLDMT, JACKSHAFT HOUSING

$237.99

$

Usually ships in 4-12 days

0

5

Gravely 04635951

WLDMT, DECK IDLER

$76.99

$

Usually ships in 4-12 days

0

6

Gravely 04656000

RETAINER, JACKSHAFT SPINDLE

$15.99

$

In Stock, only 1 left!

0

7

Gravely 04694500

SPCR, BEARING SPINDLE

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 13

0

9

Gravely 04720051

PLATE, JACKSHAFT COVER

$28.99

$

Usually ships in 4-12 days

0

10

Gravely 05400719

BRG-BALL .315X.866X.276(608)

$4.99

$

In Stock, only 2 left!

0

11

Gravely 05434700

BEARING, RG 1.00X2.0467X.591
(Superseded to 05400730)

$21.99

$

In Stock, Qty 8

0

12

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$15.99

$

In Stock, Qty 20+

0

13

Gravely 05501113

BSHG-SLV .330X.455X.550

$8.49

$

In Stock, only 1 left!

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06200216

BLT,RDHDSQSHNK.50-13X3.25 G5YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

17

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

18

Gravely 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 04676151

WLDMT, PIVOTING IDLER

$112.99

$

Usually ships in 4-12 days

0

26

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0

27

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 07001701

BOLT,EYE .38-16X4.50,.75"EYE

$14.99

$

Usually ships in 4-12 days

0

29

Gravely 08300505

SPRING, EXTENSION

$27.99

$

In Stock, Qty 20+

0

30

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.49

$

In Stock, Qty 20+

0

31

Gravely 05700217

RING, RETAINING 7/8" INT

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 07200639

BELT, 5L RAW EDGE

$52.99

$

In Stock, Qty 7

0

33

Gravely 07334500

IDLER, FLAT-5.00X.75

$85.99

$

In Stock, Qty 17

0
