994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Dash Panel Controls Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

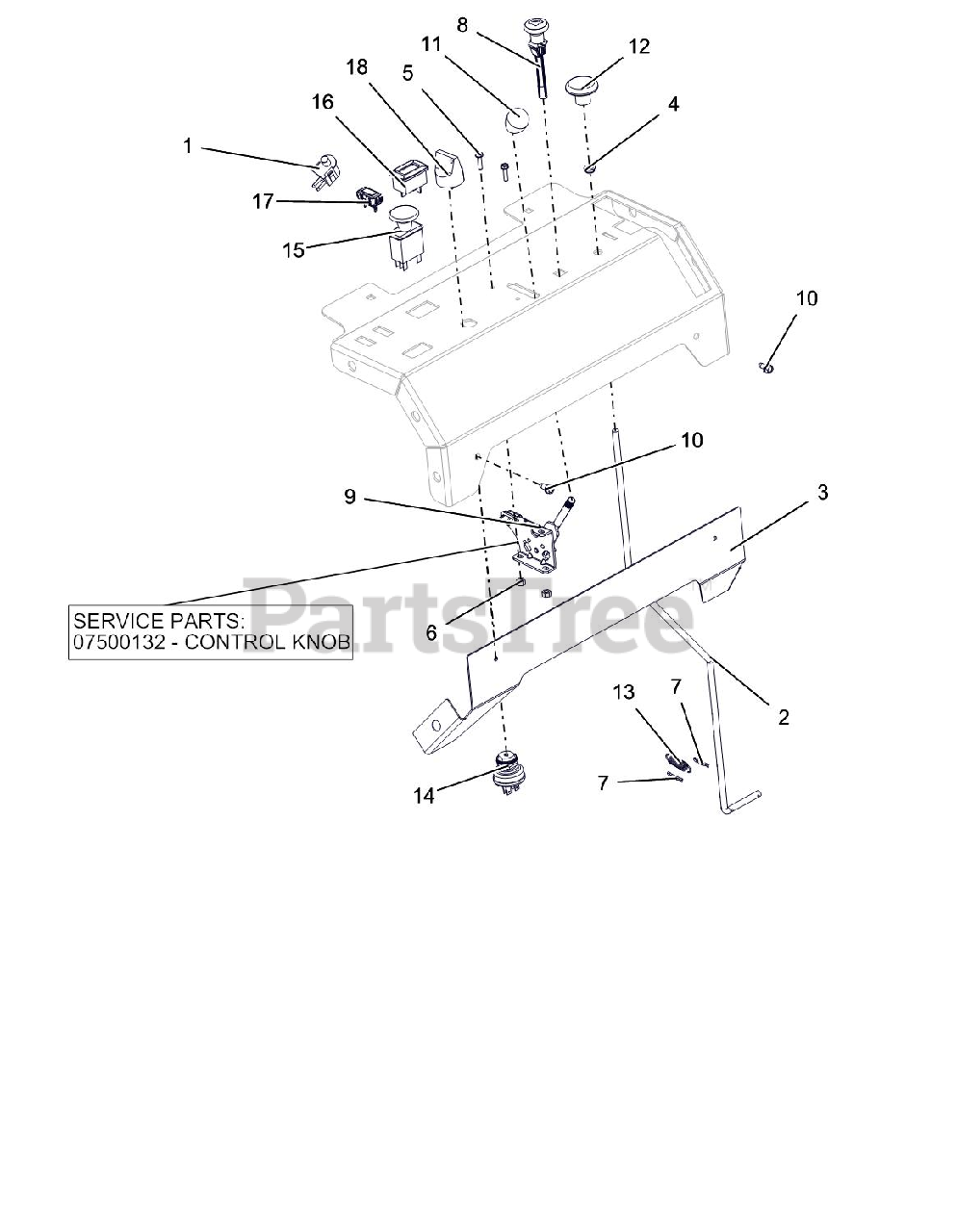

Dash Panel Controls Parts Diagram

  • Title

1

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 20+

0

2

Gravely 04521200

WIREFORM, TRAILER LOCK

$32.99

$

Usually ships in 4-12 days

0

3

Gravely 04575251

PLATE, FRONT BACKER

$43.99

$

Usually ships in 4-12 days

0

4

Gravely 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 18

0

5

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

6

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 06900408

CABLE, CHOKE (SNAP IN)

$41.99

$

In Stock, only 2 left!

0

9

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: SERVICE PART

$12.99

$

In Stock, only 2 left!

0

9

Gravely 06900412

CABLE, PRO-CONTROL

$66.99

$

In Stock, only 3 left!

0

10

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

In Stock, only 2 left!

0

12

Gravely 07539900

KNOB, PUSH-PULL .312-18

$7.49

$

In Stock, Qty 11

0

13

Gravely 08310900

SG-TENS .048X.44X1.75 WLD 9

$6.49

$

In Stock, Qty 8

0

14

Gravely 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

15

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

16

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

17

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

18

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0
