994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Deck Lift - Right Hand Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

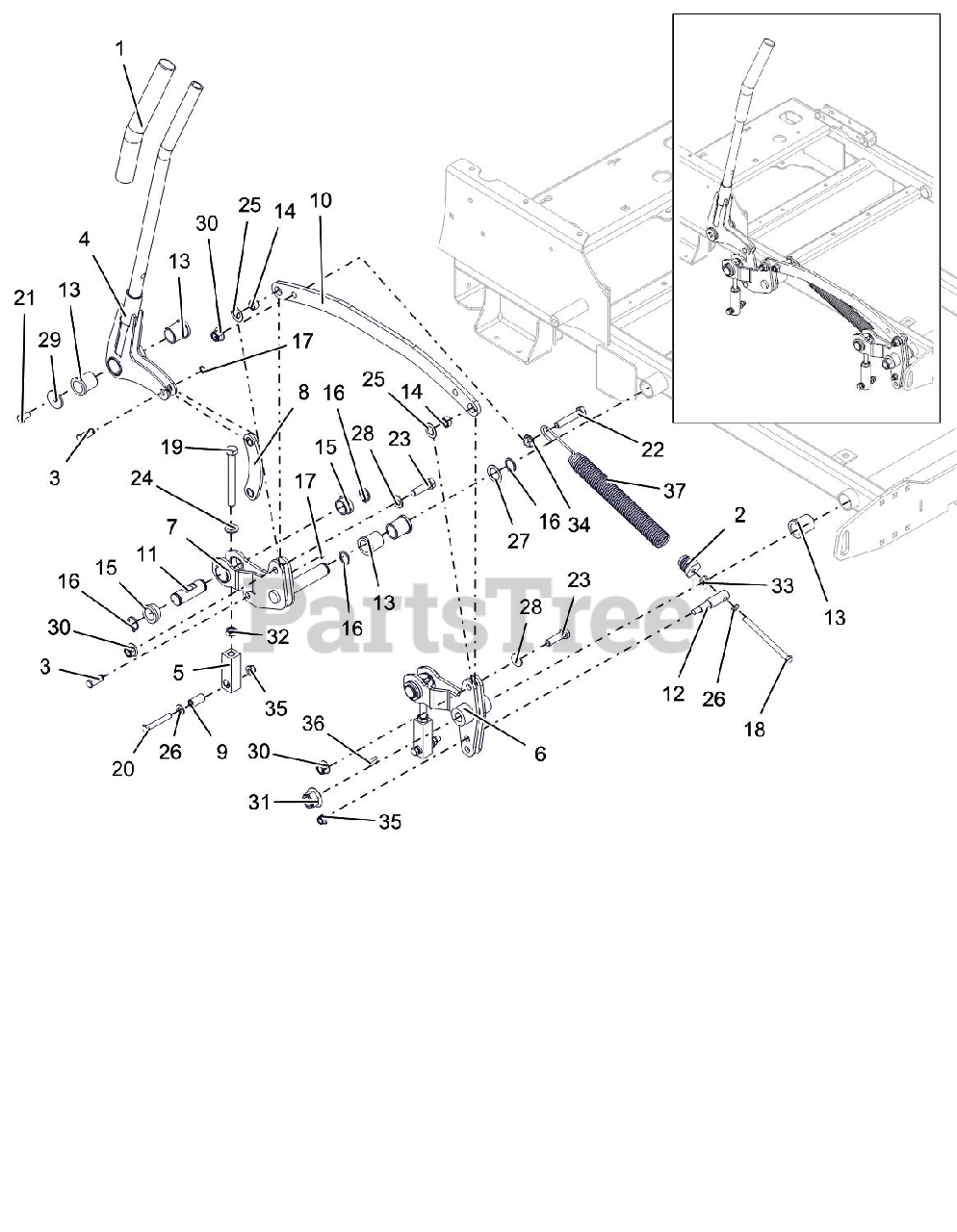

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$16.99

$

In Stock, only 1 left!

0

2

Gravely 04374200

PLUG, SPRING

$80.99

$

Usually ships in 4-12 days

0

3

Gravely 04536700

PIN, CLEVIS .500 SNAP RING

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 04813853

WLDMT, HAND LEVER

$174.99

$

Usually ships in 4-12 days

0

5

Gravely 04877800

LINK, DECK LIFT
(Superseded to 05081400)

$16.99

$

In Stock, Qty 5

0

6

Gravely 04885467

WLDMT, PSTANCE TAPERED HUB

$217.99

$

Usually ships in 4-12 days

0

7

Gravely 04885667

WLDMT, PSTANCE DECK ARM

$174.99

$

Usually ships in 4-12 days

0

8

Gravely 04893453

WLDMT, DECK LIFT LINK

$67.99

$

Usually ships in 4-12 days

0

9

Gravely 04895200

SPACER, DECK LEVELING

$2.99

$

In Stock, only 4 left!

0

10

Gravely 04975251

ARM, DECK LIFT

$70.99

$

Usually ships in 4-12 days

0

11

Gravely 04984500

PIN, DECK LIFT

$39.99

$

In Stock, only 2 left!

0

12

Gravely 04989600

TRUNION, DECK LIFT

$40.99

$

Usually ships in 4-12 days

0

13

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

14

Gravely 05501301

BSHG-SLV .513 X .748 X .420

$13.99

$

In Stock, Qty 10

0

15

Gravely 05501307

BSHG,FLG 1.0 X 1.25 X 1.5 X .6

$13.99

$

In Stock, Qty 8

0

16

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 17

0

17

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

18

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 FTH YZ
(Superseded to 05901923)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 05901622

BOLT, 1/2-13 X 5.0 2.5 THREAD
(Superseded to 05901925)

$5.49

$

In Stock, only 3 left!

0

20

Gravely 05901601

BLT-HEX .38-16X2.50 GR8 YWZC

$

$

Not available

21

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

22

Gravely 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 19

0

24

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.99

$

In Stock, Qty 19

0

25

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 15

0

28

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

29

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06500717

@NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 15

0

37

Gravely 08300624

SPRING, DECK LIFT

$14.99

$

In Stock, only 2 left!

0
