994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Drive Belt And Clutch Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

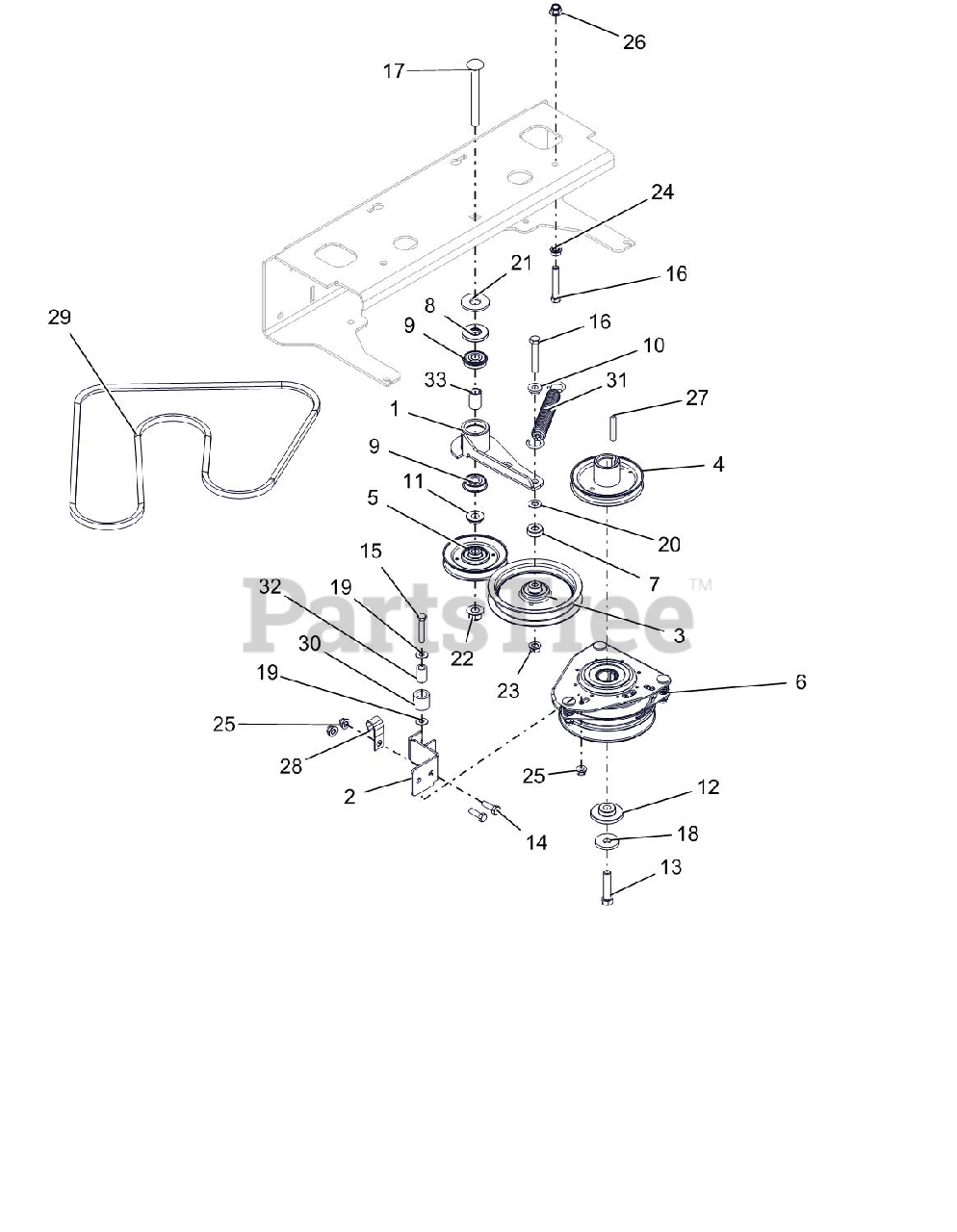

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 04720551

WLDMT, IDLER ARM GROUND DRIVE

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 04807551

WLDMT, CLUTCH STOP

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 07334500

IDLER, FLAT-5.00X.75

$85.99

$

In Stock, Qty 18

0

4

Gravely 07343067

SHEAVE, ENGINE 4.5 OD X 1.127

$161.99

$

Usually ships in 4-12 days

0

5

Gravely 07344400

SHV, .50"ID X 4.00"OD V-IDLER

$36.99

$

In Stock, only 1 left!

0

6

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 2 left!

0

7

Gravely 04448100

SPCR, .375 X 1.00 X .342

$23.99

$

In Stock, only 2 left!

0

8

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 16

0

9

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05501135

BSHG, FLG .515X.750X.360X1.12

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 4 left!

0

13

Gravely 05901530

BLT-HEX .438-20X2 G8YZ NYTORQ
(Superseded to 05901916)

$3.99

$

In Stock, Qty 11

0

14

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

15

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

16

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 Y
(Superseded to 06200505)

$

$

Not available

18

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

19

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

28

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 07226400

V-BELT, A-COGGED

$53.99

$

In Stock, Qty 20+

0

30

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, Qty 9

0

31

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

32

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$6.49

$

In Stock, only 4 left!

0

33

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.49

$

In Stock, Qty 20+

0
