994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Engine - Kawasaki FX691 Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

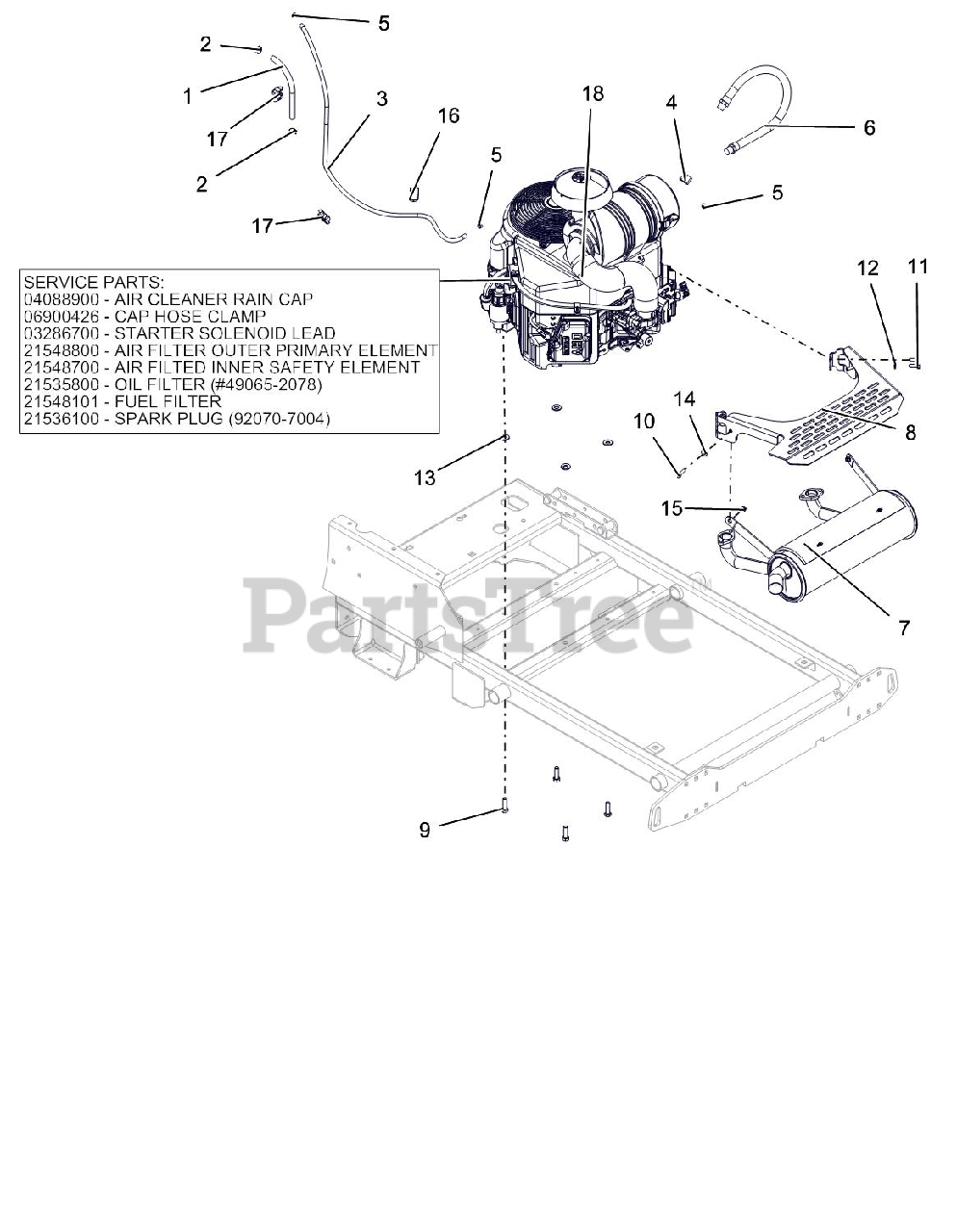

Engine - Kawasaki FX691 Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 10

0

4

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 04271700

DRAIN, M20 OIL

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 04420400

EXHAUST, KAWASAKI PROSTANCE

$298.99

$

Usually ships in 4-12 days

0

8

Gravely 04676751

SHIELD, MUFFLER
(Superseded to 09658251)

$67.99

$

Usually ships in 4-12 days

0

9

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

11

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (#49065-2078) SERVICE PART

$18.99

$

In Stock, Qty 20+

0

18

Gravely 21536100

PLUG, SPARK

Note: (#92070-7004) SERVICE PART

$3.99

$

In Stock, Qty 20+

0

18

Gravely 03286700

LEAD - STARTER SOLENOID

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 04088900

CAP, KAW 11065-7025

Note: SERVICE PART

$60.99

$

Usually ships in 4-12 days

0

18

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: SERVICE PART

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 21548800

FILTER, OUTER

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

18

Gravely 21548700

FILTER, INNER - KAW

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

18

Gravely 08200721

ENGINE, KAWASAKI FX691

$

$

Not available

18

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: SERVICE PART

$15.99

$

Usually ships in 4-12 days

0
