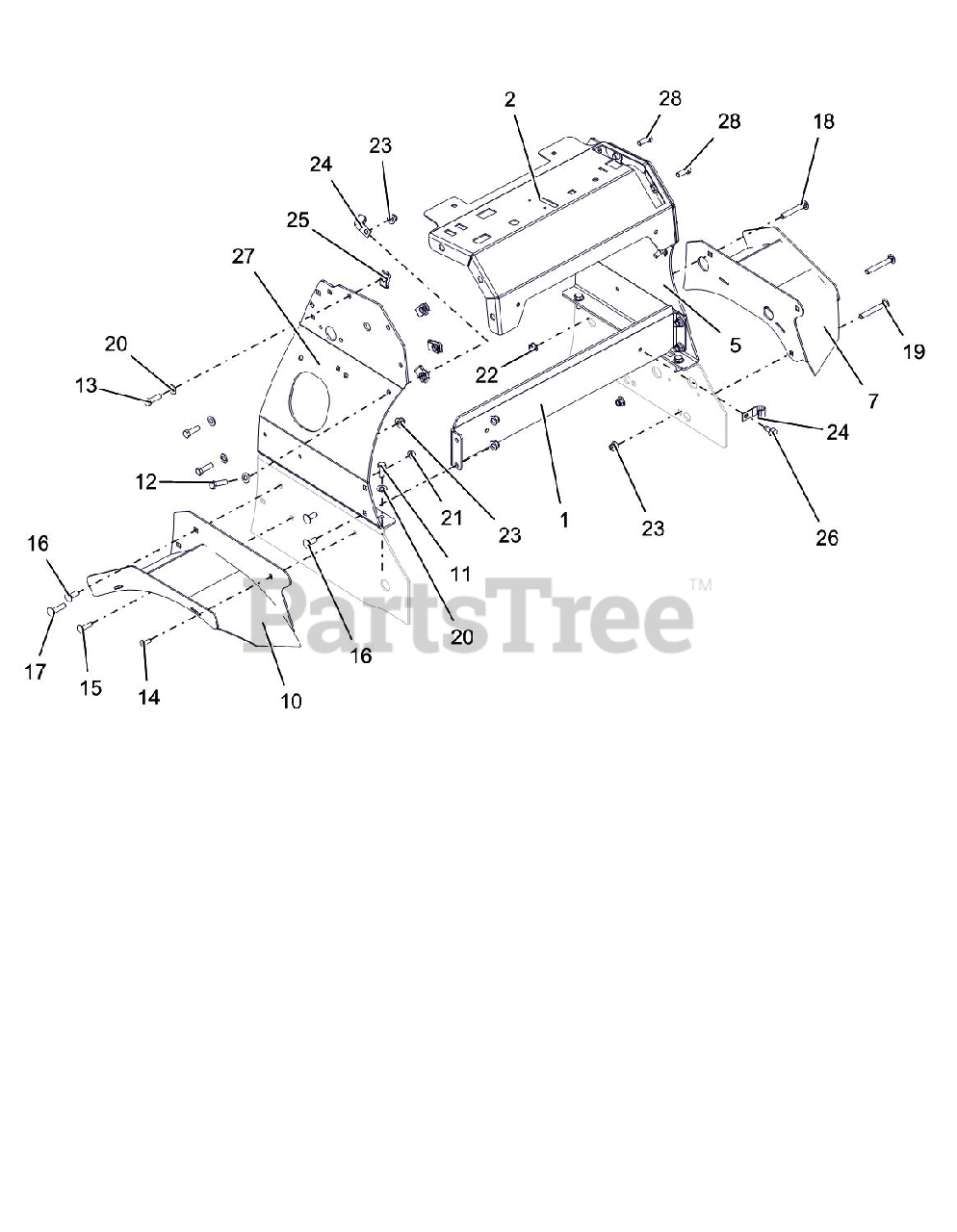

994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Tower, Dash And Fenders Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

Tower, Dash And Fenders Parts Diagram

  • Title

1

Gravely 04449051

STIFFENER, TOWER

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 59403700

KIT, 48-60 PS DASH WITH DECAL

$145.99

$

Usually ships in 4-12 days

0

5

Gravely 04954753

PANEL, LH TOWER SIDE

$159.99

$

Usually ships in 4-12 days

0

7

Gravely 04958753

WLDMT, LH FENDER

$102.99

$

Usually ships in 4-12 days

0

10

Gravely 04958853

WLDMT, RH FENDER

$76.99

$

Usually ships in 4-12 days

0

11

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

13

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

14

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

17

Gravely 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

19

Gravely 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 16

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

26

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 59401500

KIT, SERVICE RH TOWER

$118.99

$

Usually ships in 4-12 days

0

28

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0
