994133 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Front Axle And Tire - 48" And 52" Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

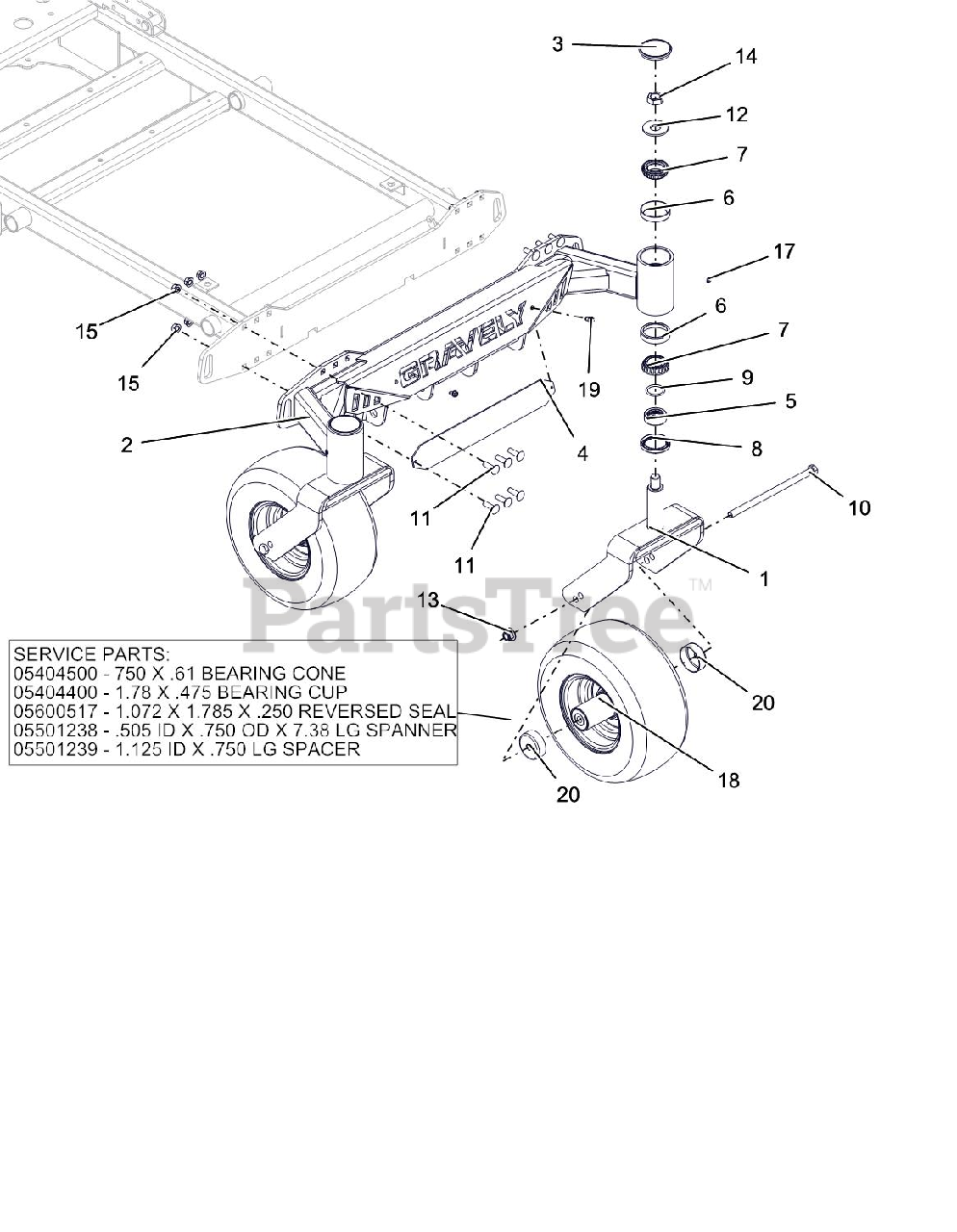

Front Axle And Tire - 48" And 52" Parts Diagram

  • Title

1

Gravely 03924453

CASTER FORK WMT - RED

$184.99

$

In Stock, only 2 left!

0

2

Gravely 04364853

WMT, 48 FRONT AXLE

$574.99

$

Usually ships in 4-12 days

0

3

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 4 left!

0

4

Gravely 04416951

BACKER, NAMEPLATE

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 04718600

SPACER, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, only 4 left!

0

6

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 9

0

7

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 20+

0

8

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 5

0

9

Gravely 05600515

O-RING,

$2.99

$

In Stock, Qty 7

0

10

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

11

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 12

0

13

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06500721

NUT-JAM TOPLK .75-16 YWZC
(Superseded to 06500933)

$4.99

$

In Stock, Qty 11

0

15

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 8

0

18

Gravely 05404500

BRG-CONE .750X.61

Note: SERVICE PART

$29.99

$

In Stock, only 3 left!

0

18

Gravely 05404400

BRG-CUP 1.781X.475

Note: SERVICE PART

$11.99

$

In Stock, Qty 20+

0

18

Gravely 05501239

SPACER, 1.125 ID X .750 LG

Note: SERVICE PART

$14.99

$

In Stock, only 2 left!

0

18

Gravely 05501238

SPANNER,.505ID X.750OD X7.38LG

Note: SERVICE PART

$52.99

$

In Stock, only 2 left!

0

18

Gravely 05600517

SEAL, 1.125 X 1.781 X .469

Note: SERVICE PART

$30.99

$

In Stock, only 2 left!

0

18

Gravely 07101107

ASM, WHL/TIRE 13X6.50-6 SEMI
(Superseded to 07101308)

$188.99

$

In Stock, Qty 8

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 09357800

SHIELD, WHEEL BEARING

$12.99

$

In Stock, Qty 20+

0
