994138 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Front Axle And Tire - 60" Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

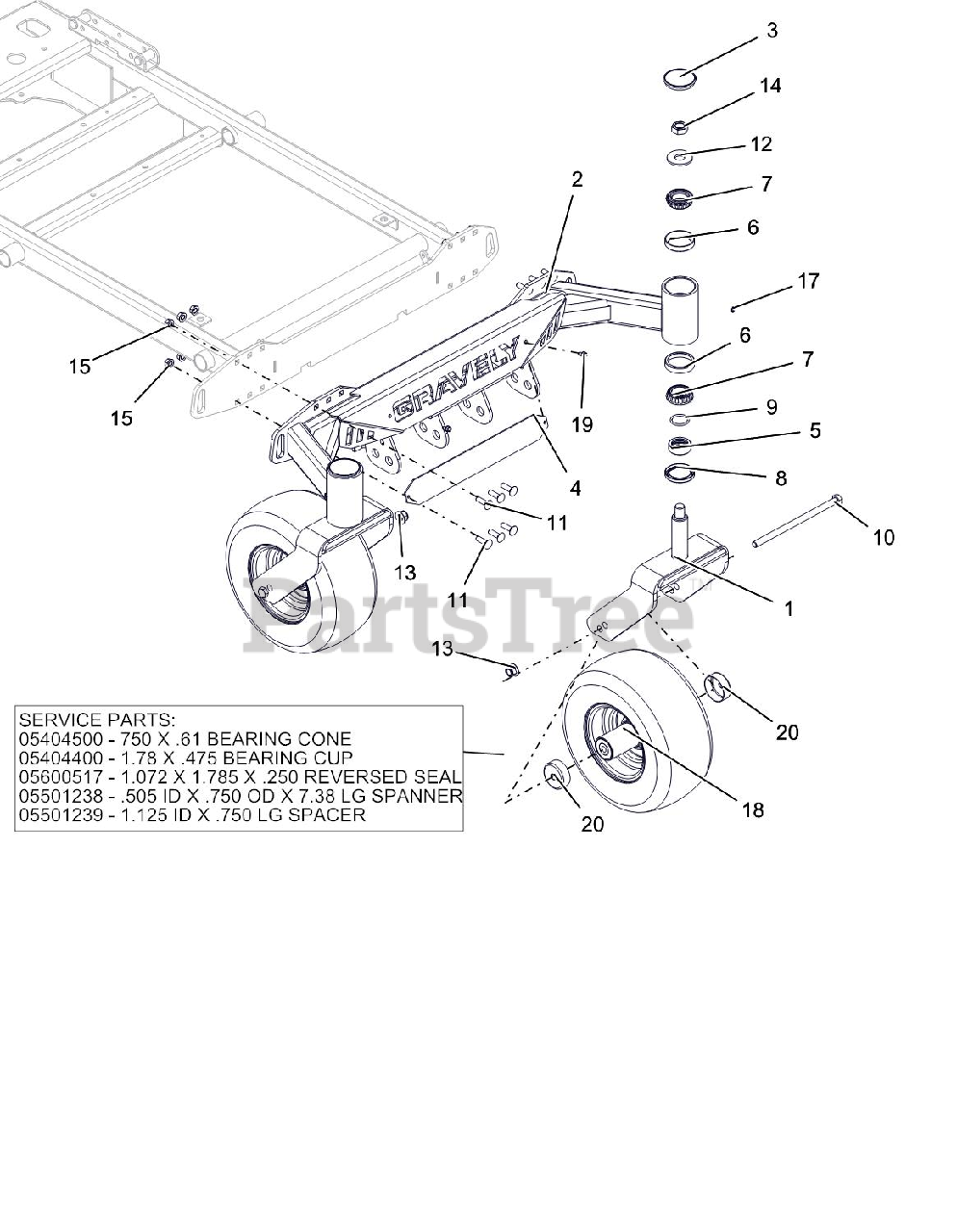

Front Axle And Tire - 60" Parts Diagram

  • Title

1

Gravely 03924453

WMT, CASTER FORK - RED

$159.99

$

In Stock, only 1 left!

0

2

Gravely 04787353

WLDMT, FRONT 60 AXLE

$766.99

$

Usually ships in 4-12 days

0

3

Gravely 03925900

CAP, DUST

$9.49

$

In Stock, Qty 6

0

4

Gravely 04416951

PLATE, BACK NAME-BLACK

$15.99

$

Usually ships in 4-12 days

0

5

Gravely 04718600

SPCR, FRONT CASTER FORK
(Superseded to 04861500)

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 05404600

BRG, CUP 2.328 X .465

$13.99

$

In Stock, Qty 14

0

7

Gravely 05404700

BRG, CONE 1.250 X .660

$19.99

$

In Stock, Qty 11

0

8

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 10

0

9

Gravely 05600515

O-RING, .139 W X 1.234 ID

$3.99

$

In Stock, Qty 10

0

10

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 18

0

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

12

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06500721

NUT-LK-TOP-JAM .75-16 YWZC
(Superseded to 06500933)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

17

Gravely 07001727

FITTING, .250-28 FLUSH MOUNT GREASE

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 07101107

TIRE/WHEEL, 13X6.50-6
(Superseded to 07101308)

$159.99

$

Usually ships in 4-12 days

0

18

Gravely 05501239

1.125 ID X .750 LG SPACER

Note: SERVICE PART

$9.49

$

In Stock, only 3 left!

0

18

Gravely 05404500

750 X .61 BEARING CONE

Note: SERVICE PART

$22.99

$

In Stock, Qty 20+

0

18

Gravely 05404400

1.78 X .475 BEARING CUP

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

18

Gravely 05600517

1.072 X 1.785 X .250 REVERSED SEAL

Note: SERVICE PART

$26.99

$

In Stock, Qty 6

0

18

Gravely 05501238

.505 ID X .750 OD X 7.38 LG SPANNER

Note: SERVICE PART

$51.99

$

In Stock, only 2 left!

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 12

0
