994139 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB (SN: 000101 - 009999) Fuel System - CARB Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB

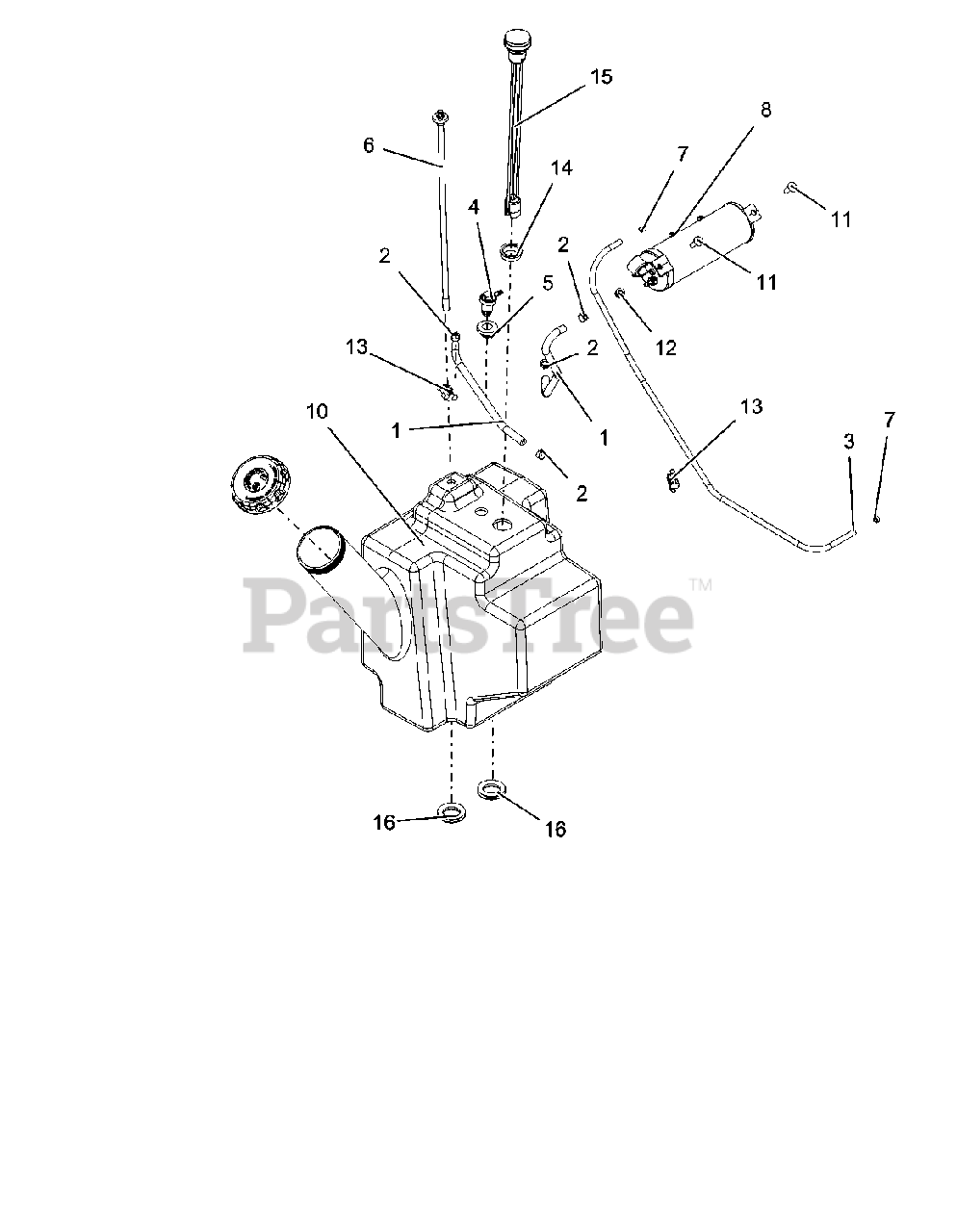

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

4

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$19.99

$

In Stock, only 2 left!

0

5

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$4.99

$

In Stock, Qty 20+

0

6

Gravely 04446900

ASS'Y, PROSTANCE FUEL PICK-UP

$33.99

$

Usually ships in 4-12 days

0

7

Gravely 04097700

CLAMP-HOSE, SPRING .188

$2.49

$

In Stock, Qty 5

0

8

Gravely 04545900

CANISTER, CARBON 9.3G CAP.

$84.99

$

Usually ships in 4-12 days

0

10

Gravely 04594700

ASM, FUEL TANK

$289.99

$

Usually ships in 4-12 days

0

11

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 07001712

CLIP, T, .38-.50

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 07500221

GROMMET, FUEL GAUGE

$6.99

$

In Stock, Qty 12

0

15

Gravely 07500311

GAUGE, REMOTE FUEL SEALED 15"
(Superseded to 07500540)

$50.99

$

Usually ships in 4-12 days

0

16

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0
