994139 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB (SN: 010000 - 019999) Dash Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB

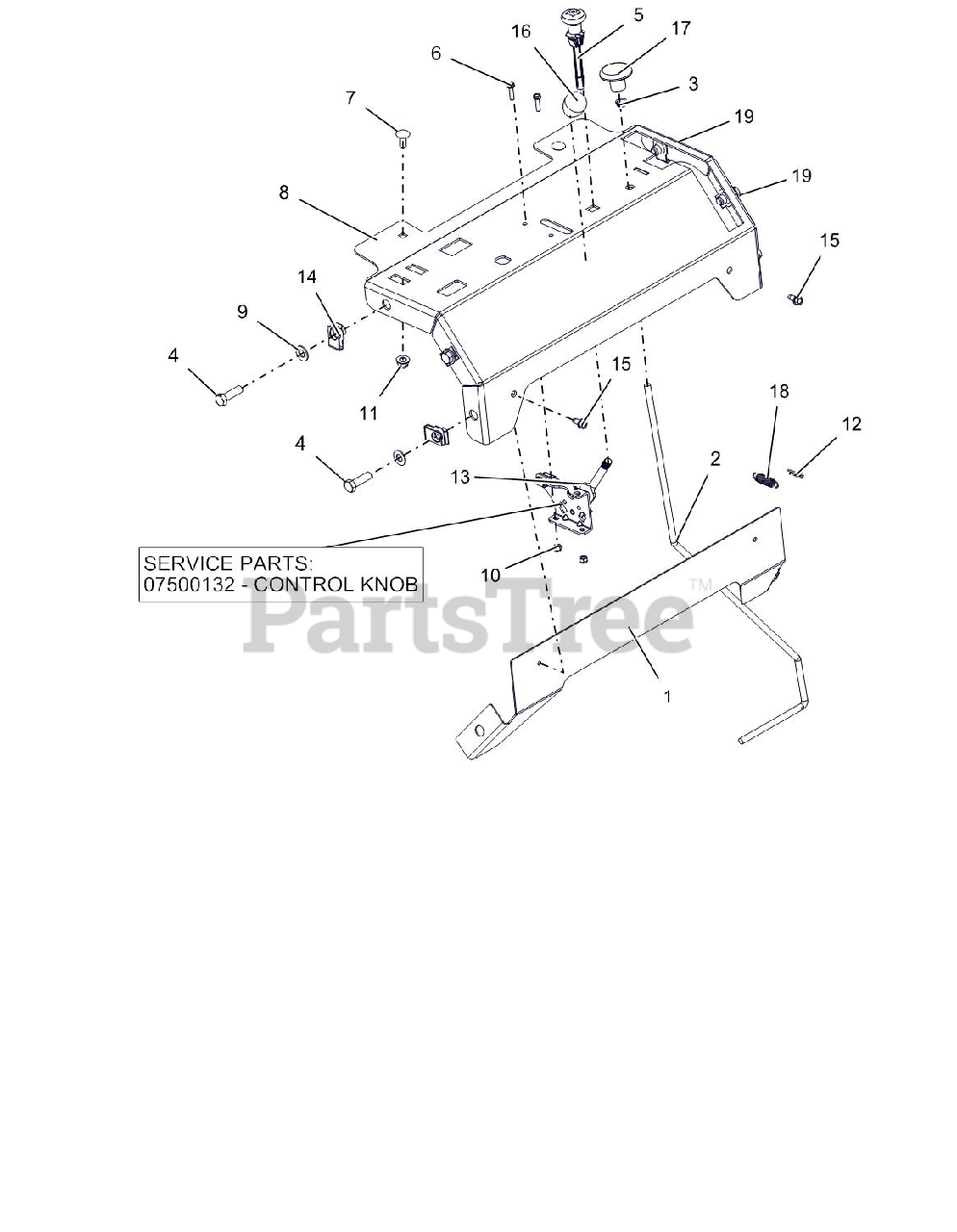

Dash Parts Diagram

  • Title

1

Gravely 04575251

PLATE, FRONT BACKER

$43.99

$

Usually ships in 4-12 days

0

2

Gravely 04663400

WIREFORM, TRAILER LOCK

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 18

0

4

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 8

0

5

Gravely 06900408

CABLE, CHOKE (SNAP IN)

$41.99

$

In Stock, only 2 left!

0

6

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

7

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 59403300

KIT, SERVICE COMP. STANCE DASH

$280.99

$

Usually ships in 4-12 days

0

9

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

13

Gravely 06900412

CABLE, PRO-CONTROL

$66.99

$

In Stock, only 3 left!

0

14

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

Usually ships in 4-12 days

0

17

Gravely 07539900

KNOB, PUSH-PULL .312-18

$7.49

$

In Stock, Qty 11

0

18

Gravely 08310900

SG-TENS .048X.44X1.75 WLD 9

$6.49

$

In Stock, Qty 8

0

19

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: SERVICE PART

$12.99

$

Usually ships in 4-12 days

0
