994139 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB (SN: 010000 - 019999) Engine And Frame Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB

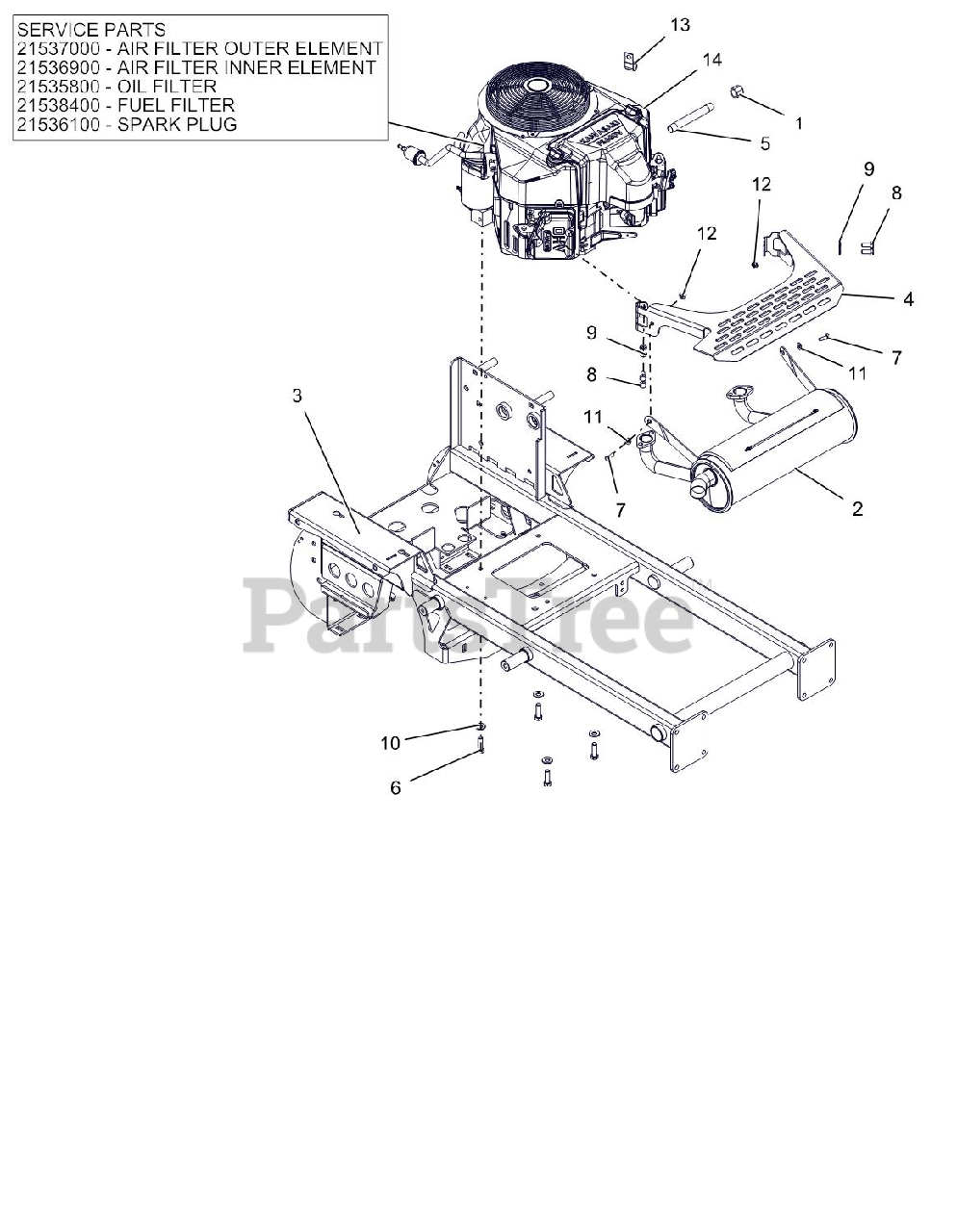

Engine And Frame Parts Diagram

  • Title

1

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

2

Gravely 04375200

MUFFLER, KAW FS PROWALK

$262.99

$

In Stock, only 1 left!

0

3

Gravely 04593353

WLDMT, COMPACT PROSTANCE FRAME

$1612.99

$

Usually ships in 4-12 days

0

4

Gravely 04676751

SHIELD, MUFFLER

$103.99

$

Usually ships in 4-12 days

0

5

Gravely 04720800

PIPE, .375" NPT X 5"

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 5

0

7

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

8

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

12

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

13

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

14

Gravely 21536100

PLUG, SPARK

Note: SERVICE PART

$3.49

$

In Stock, Qty 20+

0

14

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part/ Incorrect Data in Image

$17.99

$

In Stock, Qty 20+

0

14

Gravely 21565800

PRE FILTER, KAWASAKI FS

Note: Component Service Part/ Incorrect Data in Image

$8.99

$

Usually ships in 4-12 days

0

14

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: SERVICE PART

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 08200921

ENG. KAW FS600

$

$

Not available
