994139 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB (SN: 020000 & Above) Deck Lift - Pedal Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB

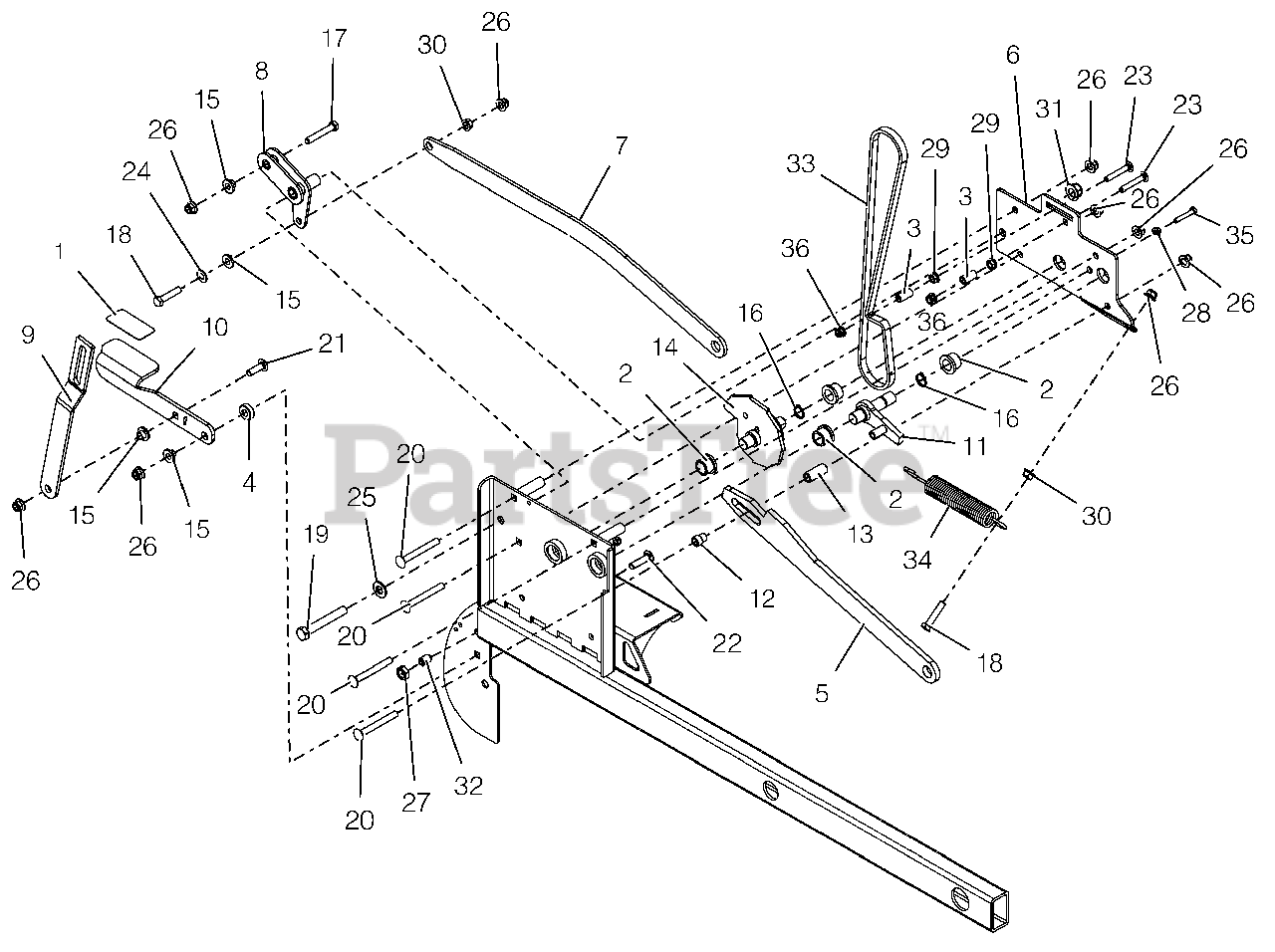

Deck Lift - Pedal Parts Diagram

  • Title

1

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.99

$

In Stock, Qty 5

0

2

Gravely 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 18

0

3

Gravely 04390600

SPACER .331 X .500 X 1.000

$

$

Not available

4

Gravely 04448100

SPCR, .375 X 1.00 X .342

$23.99

$

In Stock, only 2 left!

0

5

Gravely 04638251

ARM, CAM CONTACT

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 04638753

WLDMT, CAM COVER

$82.99

$

Usually ships in 4-12 days

0

7

Gravely 04639051

ARM, PEDAL

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 04639151

WLDMT, REAR PEDAL PIVOT

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 04662051

LINK, REAR PEDAL

$16.99

$

In Stock, only 1 left!

0

10

Gravely 04662151

PEDAL, DECK LIFT FOOT

$18.99

$

In Stock, only 1 left!

0

11

Gravely 04662300

WLDMT, TRAILER LOCK

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 04663000

BSHG, .375 X .75 X 1.00

$18.99

$

Usually ships in 4-12 days

0

13

Gravely 04663100

SPCR, .375 X .75 X 1.00

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 04958067

WLDMT, 36 PS HOC CAM

$171.99

$

Usually ships in 4-12 days

0

15

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, Qty 5

0

17

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

19

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, Qty 11

0

20

Gravely 06200001

BLT-RDHDSQNK .38-16X3.25 GR5YZ

$3.99

$

In Stock, only 1 left!

0

21

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.99

$

In Stock, Qty 12

0

22

Gravely 06225600

@BLT-RHDSSQNK .38-16X1.50 G5YZ
(Superseded to 06200328)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06225800

BLT-RDHDSQNKFT .31-18X2.0 G5YZ

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 9

0

26

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 11

0

31

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$10.99

$

Usually ships in 4-12 days

0

33

Gravely 07200738

BELT, TIMING SHORT

$50.99

$

Usually ships in 4-12 days

0

34

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$34.99

$

In Stock, Qty 14

0

35

Gravely 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, only 4 left!

0

36

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0
