994141 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX, CARB (SN: 000101 - 019999) Controls And Steering Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX, CARB

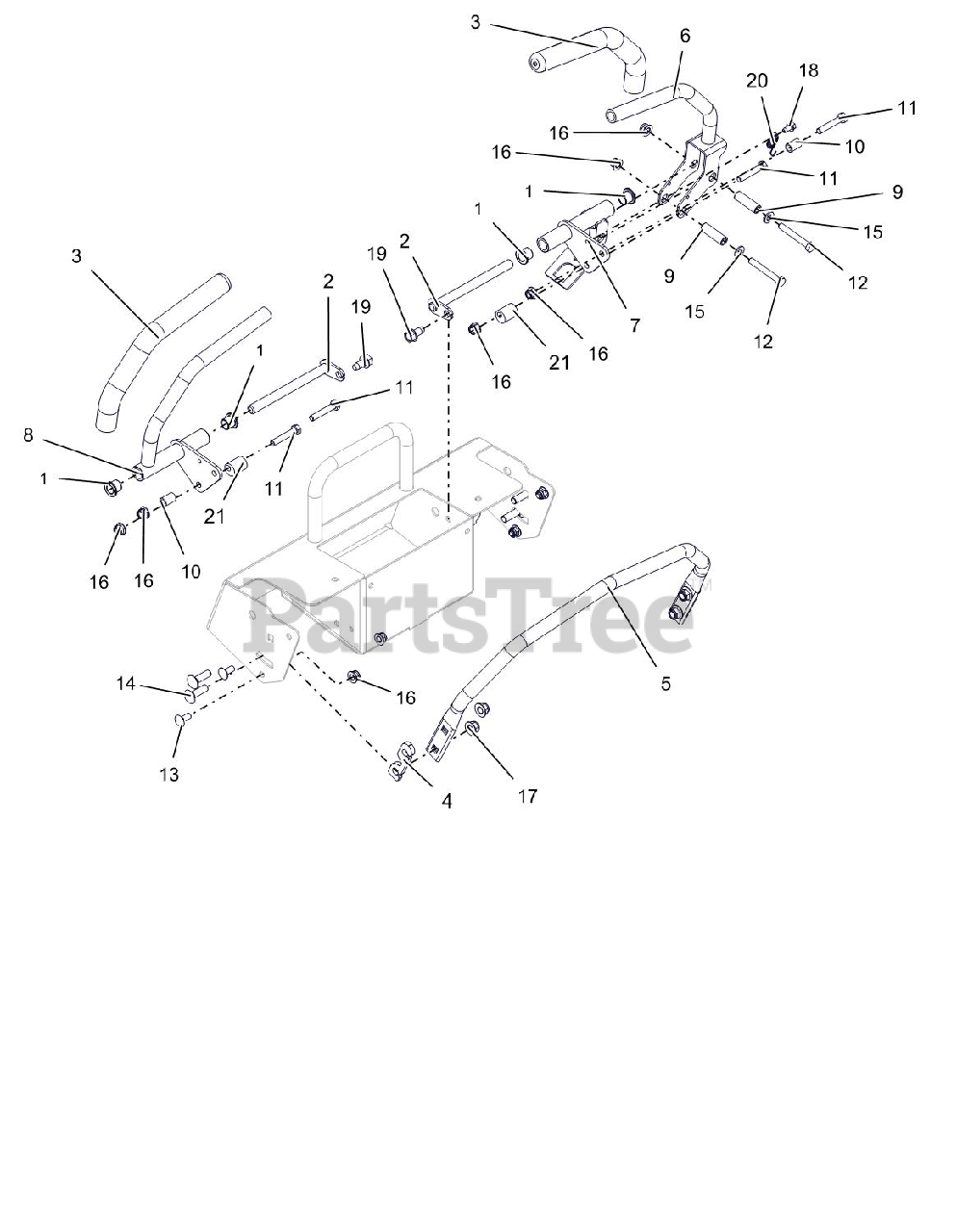

Controls And Steering Parts Diagram

  • Title

1

Gravely 00200116

BRG, FLG .500X.620X.500 BRNZ

$6.99

$

In Stock, only 2 left!

0

2

Gravely 00203893

WLDT, PIN AND LOCK Y

$36.99

$

Usually ships in 4-12 days

0

3

Gravely 00675200

GRIP, HANDLEBAR

$10.99

$

In Stock, only 2 left!

0

4

Gravely 03976751

SHIM, 5 DEG SPEED BAR

$

$

Not available

5

Gravely 04389753

BAR, FORWARD STOP PRO-STANCE

$138.99

$

Usually ships in 4-12 days

0

6

Gravely 04389851

WMT, CONTROL ARM OPC

$82.99

$

Usually ships in 4-12 days

0

7

Gravely 04458751

WMT, CONTROL ARM (LH)

$103.99

$

Usually ships in 4-12 days

0

8

Gravely 04458851

WMT, CONTROL ARM (RH)

$102.99

$

Usually ships in 4-12 days

0

9

Gravely 05501110

BSHG-SLV .325X.49X1.56

$10.99

$

In Stock, only 3 left!

0

10

Gravely 05531500

BSHG-SLV .328X.50X.75

$14.99

$

In Stock, only 2 left!

0

11

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

12

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$2.99

$

In Stock, Qty 9

0

13

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 08300036

SPRING, EXT. .043X.438X1.64

$2.99

$

In Stock, Qty 20+

0

21

Gravely 09235700

ECCENTRIC

$5.99

$

In Stock, only 3 left!

0
