994142 - Gravely Pro-Stance 52" Stand-On Mower, Kohler EFI (SN: 000101 - 019999) Engine - Kohler efi EZT725 Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler EFI

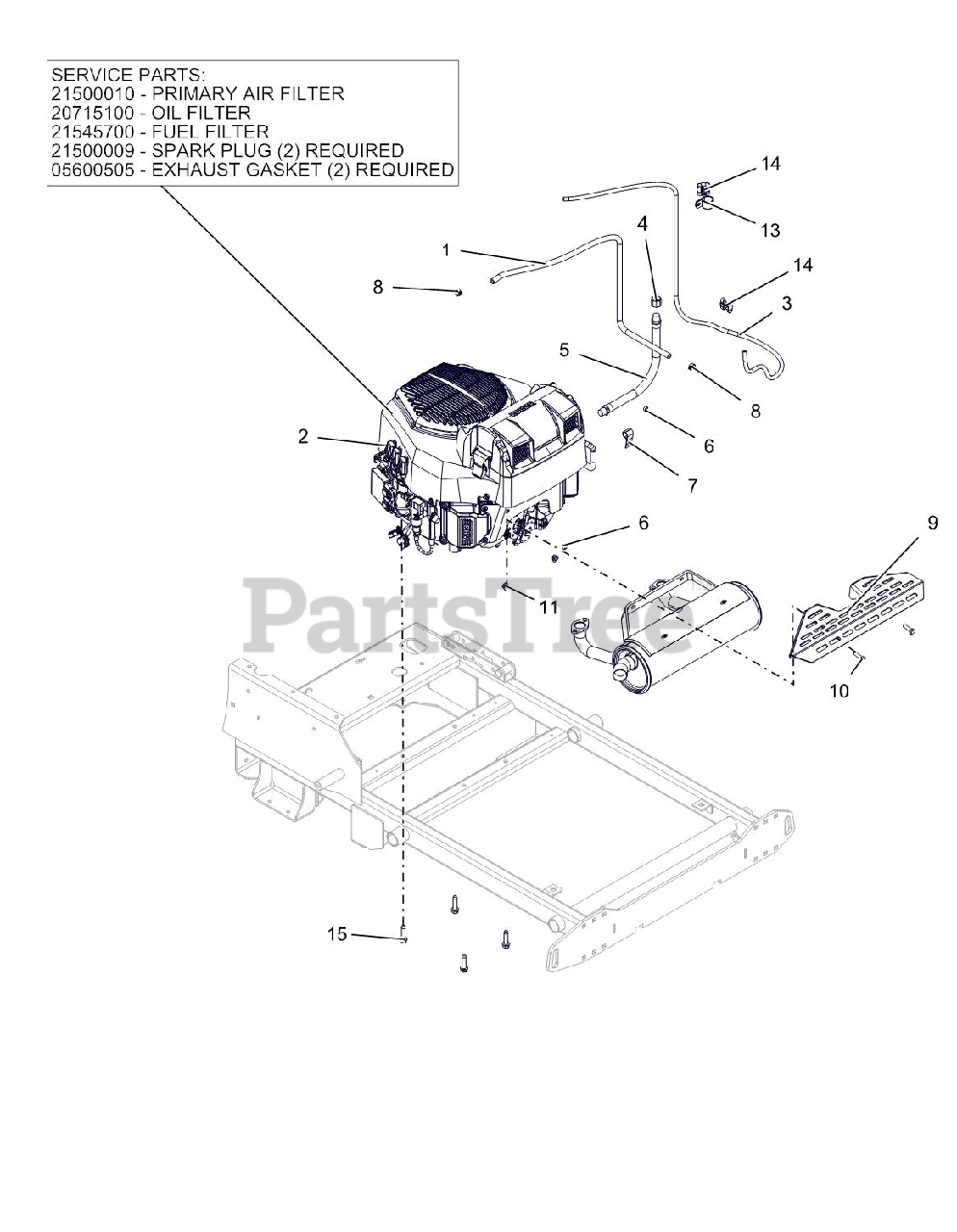

Engine - Kohler efi EZT725 Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

2

Gravely 05600505

GASKET, MUFFLER COURAGE TWIN

Note: SERVICE PART (2 REQUIRED)

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 21500010

AIR CLEANER, KOHLER CONFIDANT

Note: SERVICE PART

$28.99

$

In Stock, only 1 left!

0

2

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

2

Gravely 21500009

PLUG, SPARK KOHLER

Note: SERVICE PART (2 REQUIRED)

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 20715100

OIL FILTER KOHLER

Note: SERVICE PART

$17.99

$

In Stock, only 3 left!

0

2

Gravely 08201226

ENGINE, KOHLER EZT725

$

$

Not available

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

9

Gravely 04807651

GUARD, MUFFLER

$70.99

$

Usually ships in 4-12 days

0

10

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0
