994149 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Rear Tires and Transaxles - 36" Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

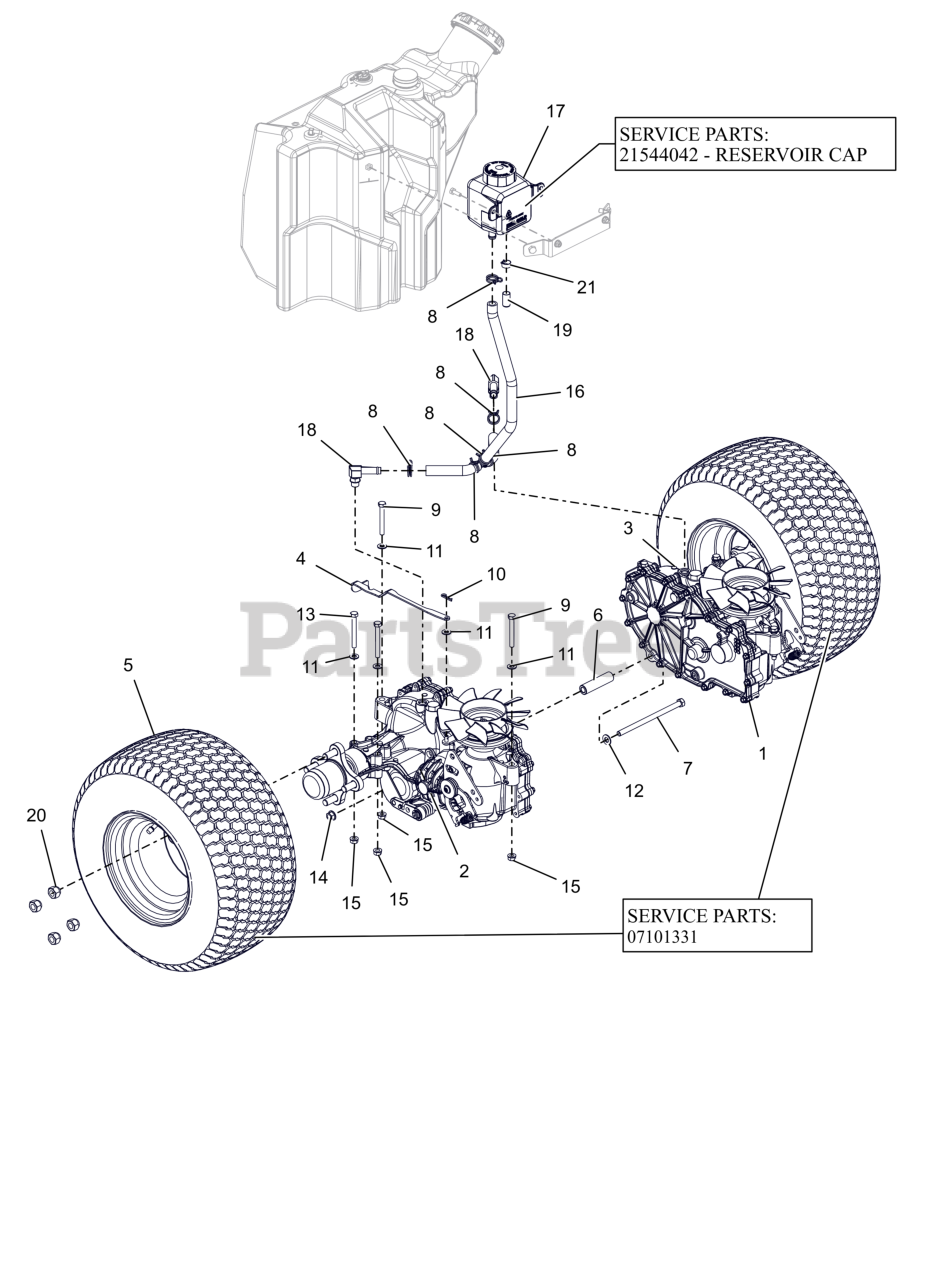

Rear Tires and Transaxles - 36" Parts Diagram

  • Title

1

Gravely 05268200

TRANSAXLE, LH ZT3100
(Superseded to 09159700)

$1099.99

$

Usually ships in 4-12 days

0

2

Gravely 05268300

TRANSAXLE, RH ZT3100
(Superseded to 09159800)

$1034.99

$

Usually ships in 4-12 days

0

3

Gravely 05192951

BRKT, HYDRO DUMP - LEFT

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 05193051

BRKT, HYDRO DUMP - RIGHT

$50.99

$

Usually ships in 4-12 days

0

5

Gravely 07101330

ASSM TIRE\WHEEL, 18 X 8.50 - R8

$205.99

$

Usually ships in 4-12 days

0

5

Gravely 07101331

Note: Component Service Part

$148.99

$

In Stock, only 1 left!

0

6

Gravely 04672400

SHAFT, CROSS BRACE

$36.99

$

Usually ships in 4-12 days

0

7

Gravely 05902029

BLT, HEX .38-16X6.50 G5 ZCC

$

$

Not available

8

Gravely 06900634

3/4 WIRE HOSE CLMP ZC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901912

BLT, HEX 0.3125-18X2.5 GR5 ZCC

$1.49

$

In Stock, only 4 left!

0

10

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 11

0

11

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, only 4 left!

0

12

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 1 left!

0

16

Gravely 05266500

ASM, 32-36" OVERFLOW HOSE

$45.99

$

Usually ships in 4-12 days

0

17

Gravely 04894600

TANK, HYDRO OVERFLOW 700 ML

$31.99

$

Usually ships in 4-12 days

0

17

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Component Service Part

$19.99

$

Usually ships in 4-12 days

0

18

Gravely 07001528

FITTING, HYD (90 DEG)

$18.99

$

Usually ships in 4-12 days

0

19

Gravely 04894200

CAP, .50 BARBED FITTING

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06900635

CLAMP, .62 SPRING

$1.49

$

Usually ships in 4-12 days

0
