994150 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Operator Platform Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

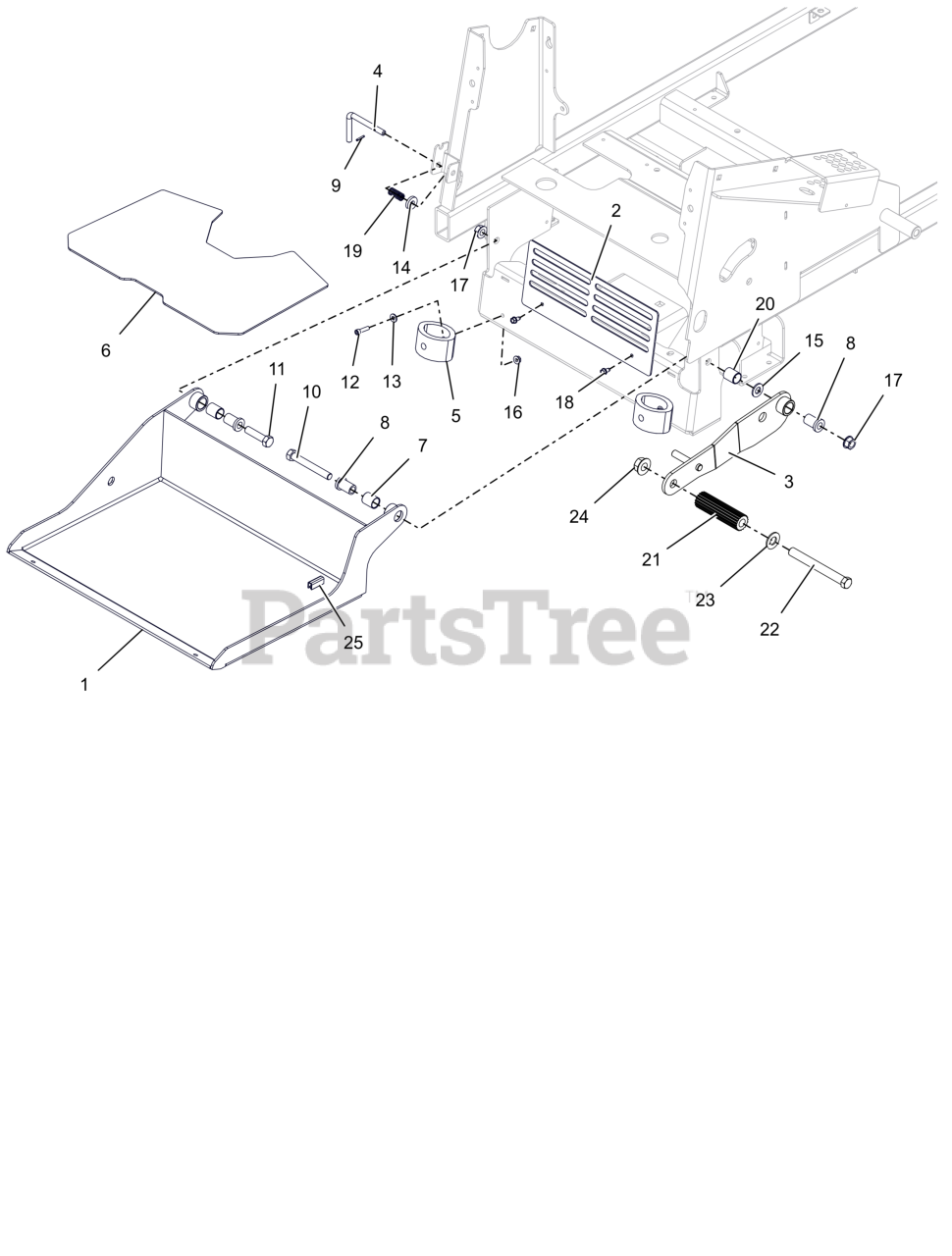

Operator Platform Parts Diagram

  • Title

1

Gravely 05192451

PLATFORM, OPERATOR

$380.99

$

Usually ships in 4-12 days

0

2

Gravely 05254253

GUARD, FOOT (RED)

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 05199551

BRKT, DECK LIFT FOOT PEDDLE

$142.99

$

Usually ships in 4-12 days

0

4

Gravely 05254400

PIN, PLATFORM LOCK

$35.99

$

Usually ships in 4-12 days

0

5

Gravely 05255200

BUMPER, PLATFORM

$34.99

$

Usually ships in 4-12 days

0

6

Gravely 05258700

TAPE, OPERATOR PLATFORM GRIP

$

$

Not available

7

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05527200

BSHG-FLG .515X.746X1.290X1.000

$31.99

$

Usually ships in 4-12 days

0

9

Gravely 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, only 2 left!

0

10

Gravely 05901703

BLT,HEX .50-13X3.75 G5 ZCC

$6.49

$

In Stock, only 4 left!

0

11

Gravely 05901929

BLT, HEX .50-13X2.00 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

12

Gravely 05902033

SCR, SKH .25-20X1.00

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

14

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, only 4 left!

0

16

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

17

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08300028

SPRING, COMPRESSION

$5.49

$

In Stock, Qty 16

0

20

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

21

Gravely 05120951

ROD, FOOT PEDAL (BLACK)

$23.99

$

Usually ships in 4-12 days

0

22

Gravely 05901730

BLT, HEX .62-11X5.50 G5 FBP

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06500835

NUT,FLG-TOP LK .625-11 FBP

$7.49

$

Usually ships in 4-12 days

0

25

Gravely 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0
