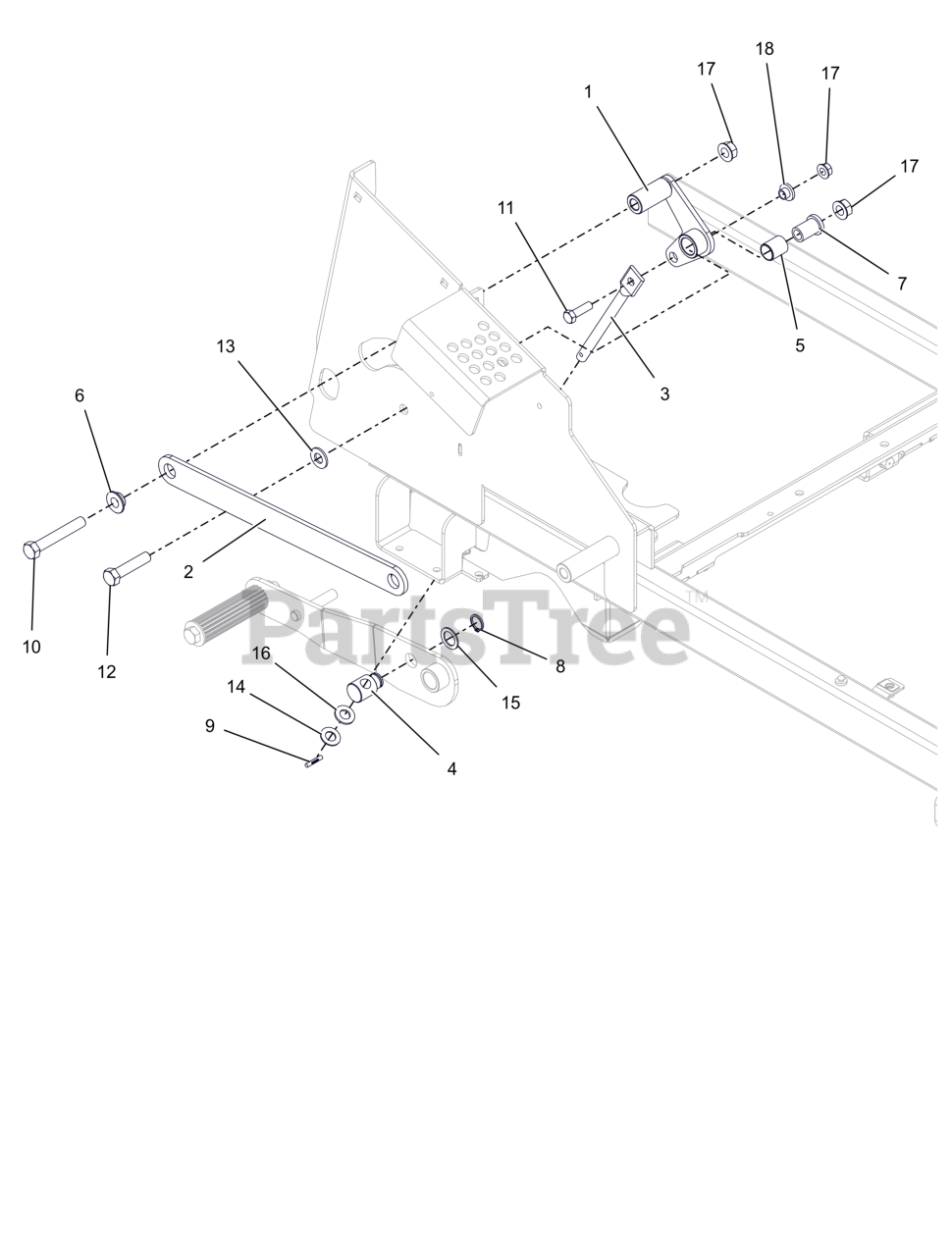

994153 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Deck Lift Foot Assist Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

Deck Lift Foot Assist Parts Diagram

  • Title

1

Gravely 05199651

WLDMT, PIVOT BRKT

$112.99

$

Usually ships in 4-12 days

0

2

Gravely 05199251

LINK,DECK LIFT FOOT ASSIST

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 05199300

LINK, HOC FOOT

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 05199400

TRUNNION,DECK LIFT FOOT ASSIST

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

6

Gravely 05501135

BSHG, FLG .515X.750X.360X1.12

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 05527200

BSHG-FLG .515X.746X1.290X1.000

$31.99

$

Usually ships in 4-12 days

0

8

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, Qty 5

0

9

Gravely 05807200

PIN-GRV .188X1.00 TP E

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 05901634

BLT,HEX .50-13X3.25 G5 ZCC

$3.99

$

In Stock, Qty 8

0

11

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 16

0

12

Gravely 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.99

$

In Stock, Qty 5

0

13

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, only 4 left!

0

14

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 9

0

15

Gravely 06401119

WSHR, FLT .754X1.125X.062 ZCC

$1.49

$

In Stock, Qty 6

0

16

Gravely 06401209

WSHR, RUBBER .332X1.000X.094

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 0650090

NUT, FLG-CTR LK .

$

$

Currently unavailable

18

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0
