994153 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Electrical Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

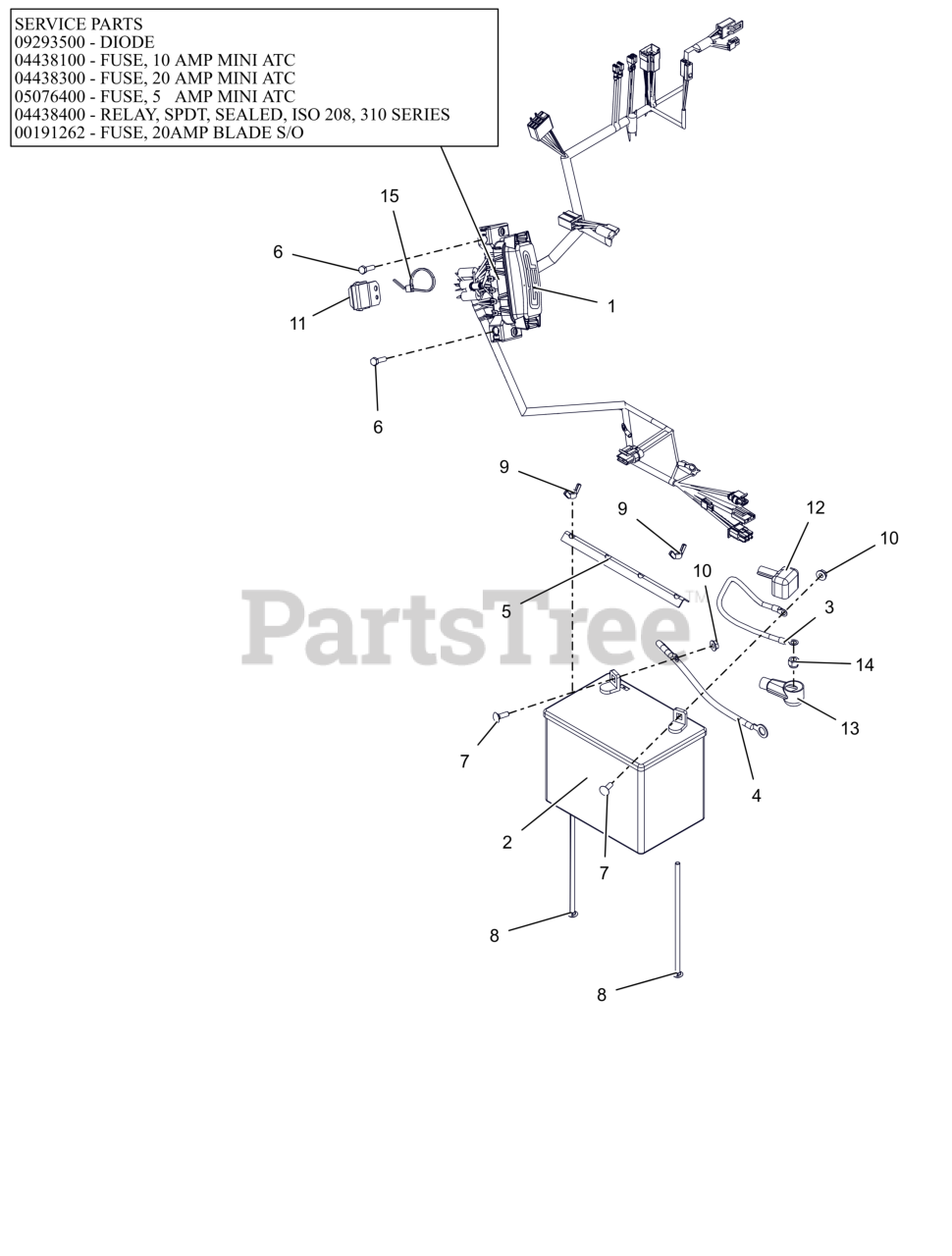

Electrical Parts Diagram

  • Title

1

Gravely 05189700

HARNESS, PROSTANCE

$284.99

$

Usually ships in 4-12 days

0

1

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, Qty 20+

0

1

Gravely 04438100

FUSE,10 AMP MINI-ATC

$2.99

$

Usually ships in 4-12 days

0

1

Gravely 04438300

FUSE,20 AMP MINI ATC

$3.99

$

Usually ships in 4-12 days

0

1

Gravely 05076400

FUSE, 5 AMP MINI-ATC

$2.49

$

Usually ships in 4-12 days

0

1

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

$17.99

$

In Stock, only 1 left!

0

1

Gravely 00191262

FUSE, 20 AMP BLADE S/O

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

3

Gravely 02727201

CABLE, STARTER 13.00"

$20.99

$

In Stock, only 1 left!

0

4

Gravely 03287100

CABLE-GROUND .25 X 13.00 X .31

$14.99

$

In Stock, only 1 left!

0

5

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, Qty 5

0

6

Gravely 05901609

BLT, HEX M6-1.0 X 25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06200424

BTL,RHSN .250-20 X 7.5 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

9

Gravely 06500805

NUT, LK-WING .25-20 ZCC

$4.99

$

In Stock, Qty 9

0

10

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 17

0

11

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$71.99

$

In Stock, only 1 left!

0

12

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available
