994153 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Front Casters Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

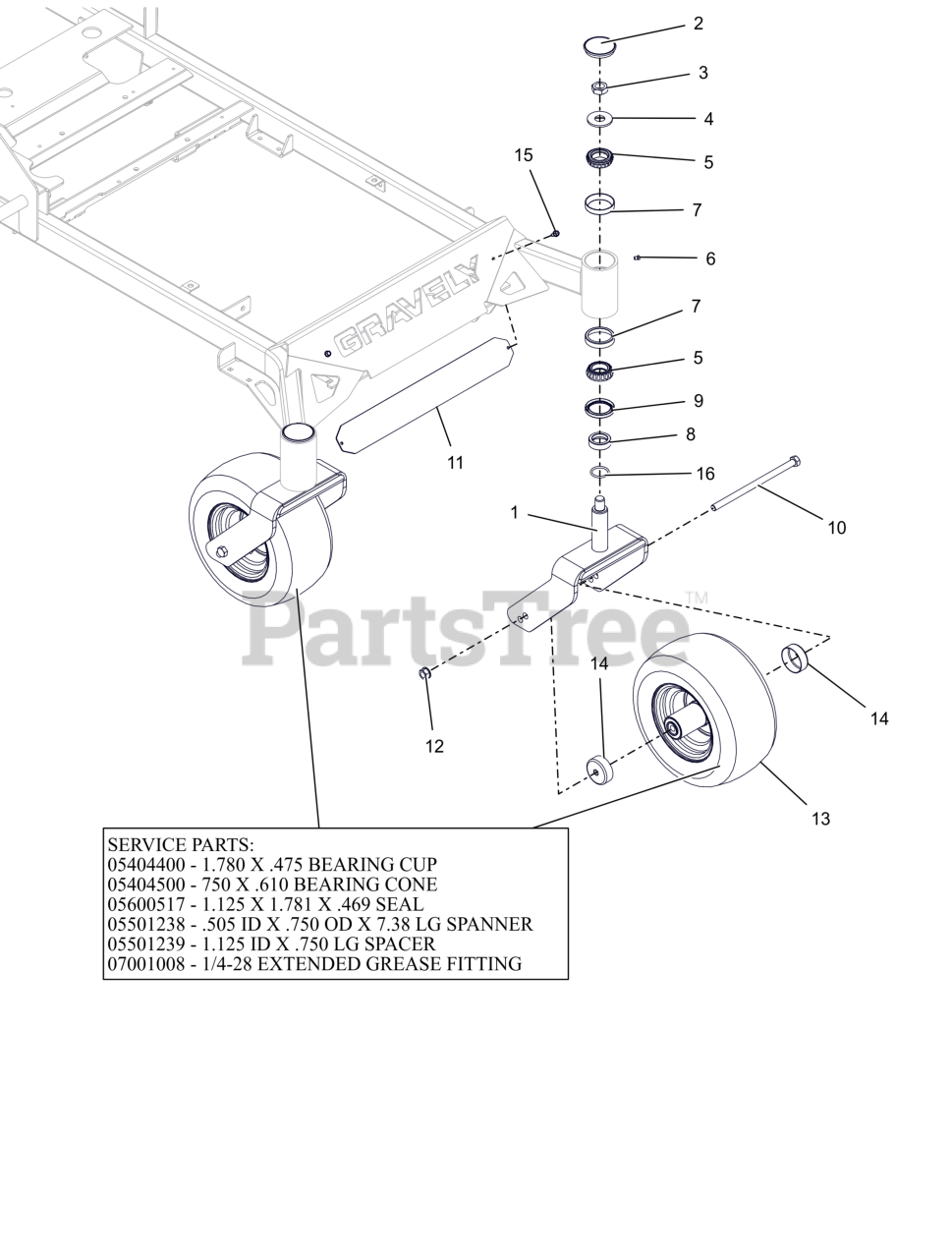

Front Casters Parts Diagram

  • Title

1

Gravely 03924453

CASTER FORK WMT - RED

$159.99

$

In Stock, only 1 left!

0

2

Gravely 03925900

CAP, DUST

$9.49

$

In Stock, Qty 6

0

3

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 06401201

WSHR-FL-STL 0.812X2X0.148 ZCC

$3.99

$

In Stock, only 1 left!

0

5

Gravely 05404700

BRG-CONE 1.25X.66

$19.99

$

In Stock, Qty 11

0

6

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, Qty 14

0

8

Gravely 04861500

SPCR, FRONT CASTER FORK

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 10

0

10

Gravely 05901930

BLT, HEX .50-13X9.00 G5 ZCC

$10.99

$

In Stock, Qty 18

0

11

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07101308

ASM, WHL/TIRE 13X6.50-6 SEMI

$159.99

$

Usually ships in 4-12 days

0

13

Gravely 05404400

BRG-CUP 1.781X.475

Note: Service Component Part

$9.49

$

In Stock, Qty 20+

0

13

Gravely 05404500

BRG-CONE .750X.61

Note: Service Component Part

$22.99

$

In Stock, Qty 20+

0

13

Gravely 05600517

SEAL, 1.125 X 1.781 X .469

Note: Service Component Part

$26.99

$

In Stock, Qty 6

0

13

Gravely 05501238

SPANNER,.505ID X.750OD X7.38LG

Note: Service Component Part

$51.99

$

In Stock, only 2 left!

0

13

Gravely 05501239

SPACER, 1.125 ID X .750 LG

Note: Service Component Part

$9.49

$

In Stock, only 3 left!

0

13

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: Service Component Part

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 12

0

15

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05600515

O-RING,

$3.99

$

In Stock, Qty 10

0
