994153 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Fuel System Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

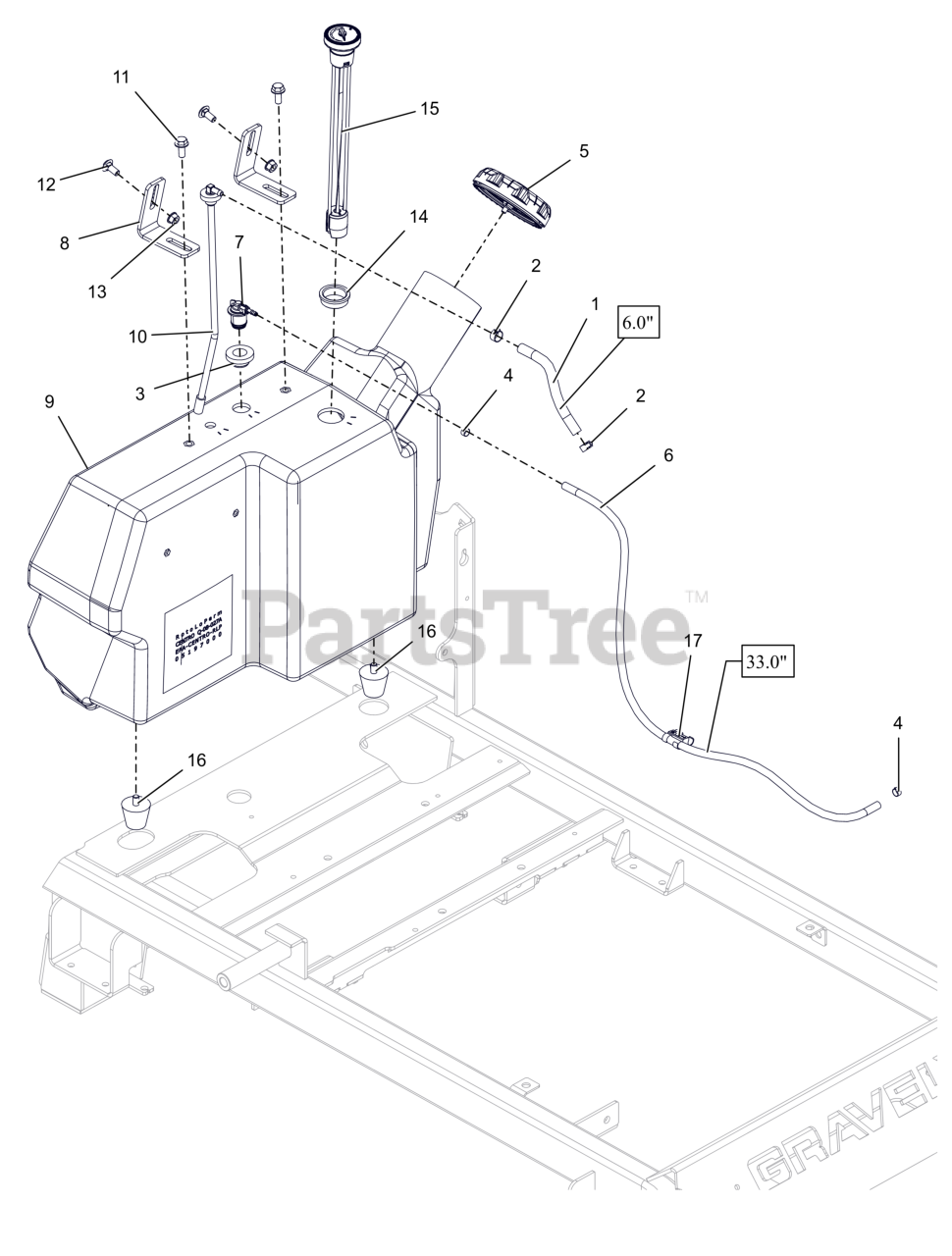

Fuel System Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

3

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

4

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

6

Gravely 04745900

HOSE, .188 30R7 BULK

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 05185600

VALVE, COMBINATION VENT 3/16

$13.99

$

In Stock, only 2 left!

0

8

Gravely 05192553

BRKT, TANK HOLDDOWN

$56.99

$

Usually ships in 4-12 days

0

9

Gravely 05197000

ASSY,48-60 PROSTANCE FUEL TANK

$387.99

$

Usually ships in 4-12 days

0

10

Gravely 05248300

ASM, PROSTANCE FUEL LINE PICK-UP

$17.99

$

Usually ships in 4-12 days

0

11

Gravely 07001820

BLT, SERHFWH 0.312-18X0.75 GR5 ZCC

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 9

0

13

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 4 left!

0

14

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, Qty 13

0

15

Gravely 07500310

GAUGE, REMOTE FUEL SEALED 12"

$

$

Not available

16

Gravely 07500428

BUMPER, STUD MOUNTED CONE SHAPED

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0
