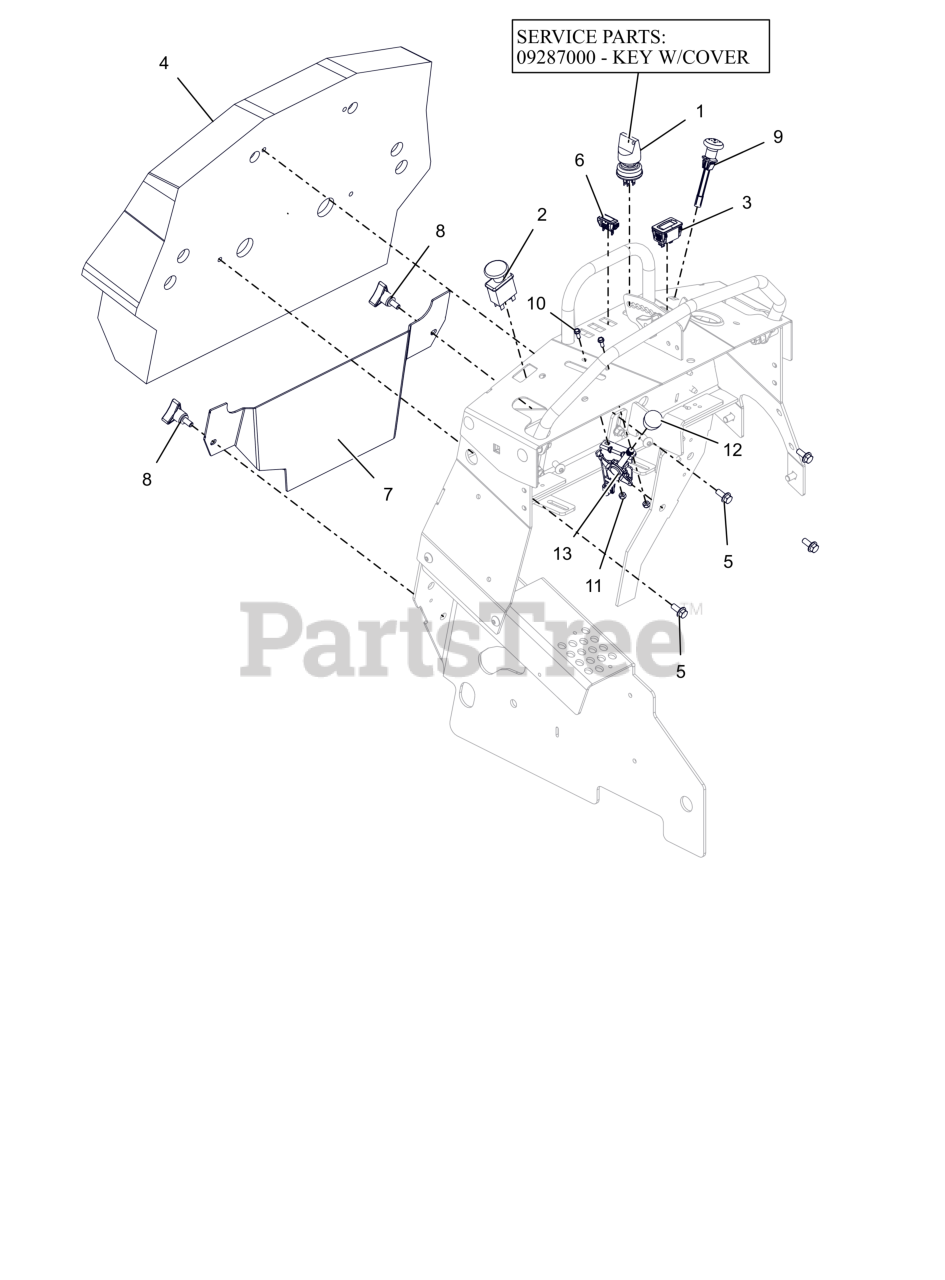

994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Operator Pad and Switches Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

Operator Pad and Switches Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$42.99

$

In Stock, only 2 left!

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: Component Service Part

$15.99

$

In Stock, Qty 18

0

2

Gravely 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 20+

0

3

Gravely 05254800

HOUR METER
(Superseded to 09497400)

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 05259100

PAD, OPERATOR - PROSTANCE

$336.99

$

Usually ships in 4-12 days

0

5

Gravely 07001820

BLT, SERHFWH 0.312-18X0.75 GR5 ZCC

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 05265851

COVER, REAR TOWER (BLACK)

$87.99

$

Usually ships in 4-12 days

0

8

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

9

Gravely 06900408

CABLE, CHOKE (SNAP IN)

$39.99

$

In Stock, only 1 left!

0

10

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 8

0

12

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, only 1 left!

0

13

Gravely 06900717

CABLE, PROSTANCE - CONTROL 43"

$39.99

$

Usually ships in 4-12 days

0
