994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Pivoting Idler Continued Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

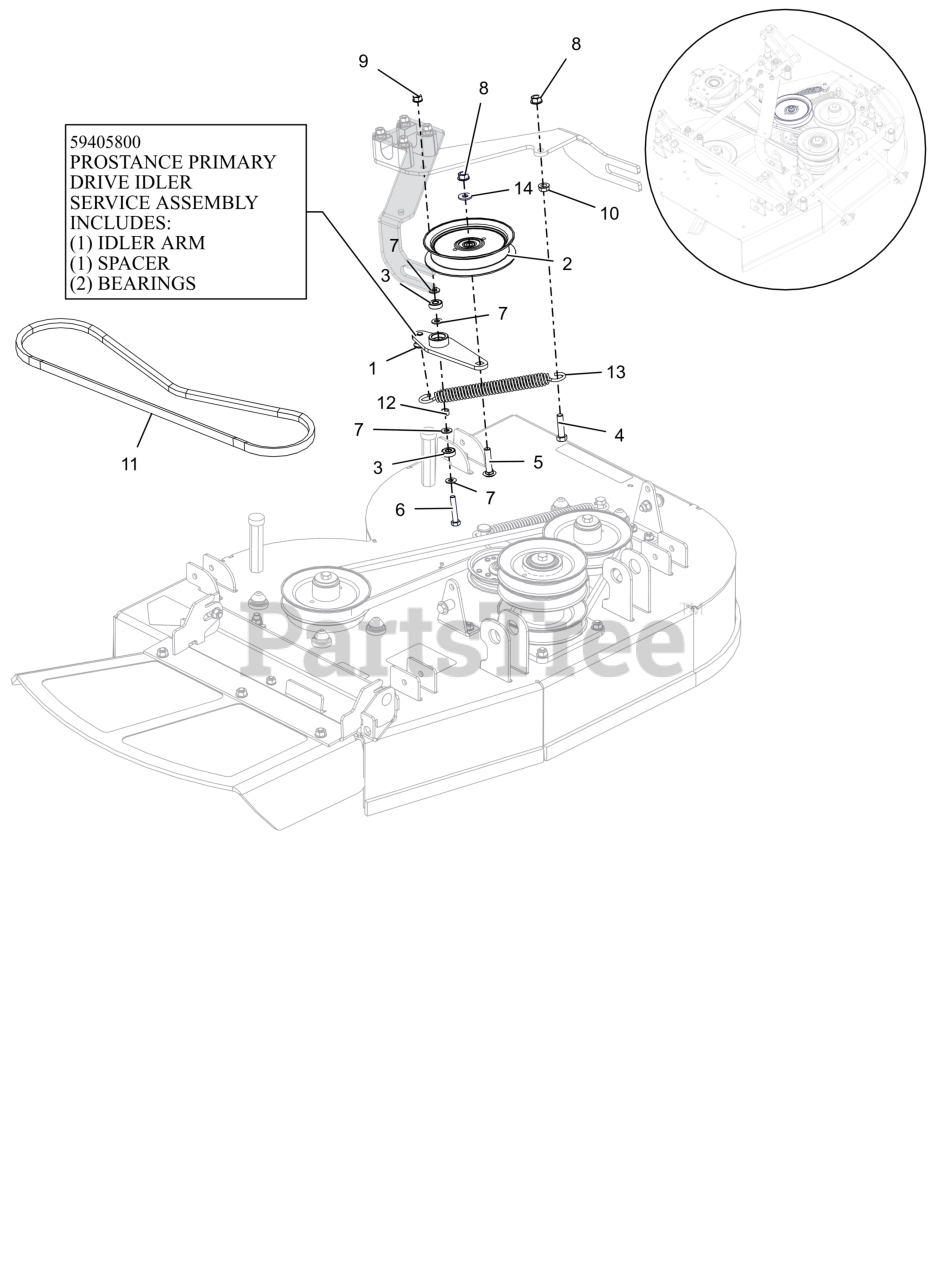

Pivoting Idler Continued Parts Diagram

  • Title

1

Gravely 05266800

WLDMT, IDLER ARM

$58.99

$

Usually ships in 4-12 days

0

1

Gravely 59405800

Note: Service Component Assembly

$105.99

$

Usually ships in 4-12 days

0

2

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$42.99

$

In Stock, Qty 20+

0

3

Gravely 05400719

BRG-BALL .315X.866X.276(608)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.99

$

In Stock, Qty 10

0

5

Gravely 06200329

BTL,RHSSN .375-16 X 1.75 G5 ZCC

$3.99

$

In Stock, Qty 8

0

6

Gravely 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$3.49

$

In Stock, Qty 7

0

7

Gravely 06401113

WSHR, HRDN 0.344X0.688X0.065

$5.49

$

Usually ships in 4-12 days

0

8

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07200831

V-BELT, 5L RAW EDGE EPDM

$47.99

$

In Stock, Qty 20+

0

12

Gravely 05501408

SPCR- SLV .344 X .500 X .283

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

14

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0
