994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 002000 & Above) Front Casters Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

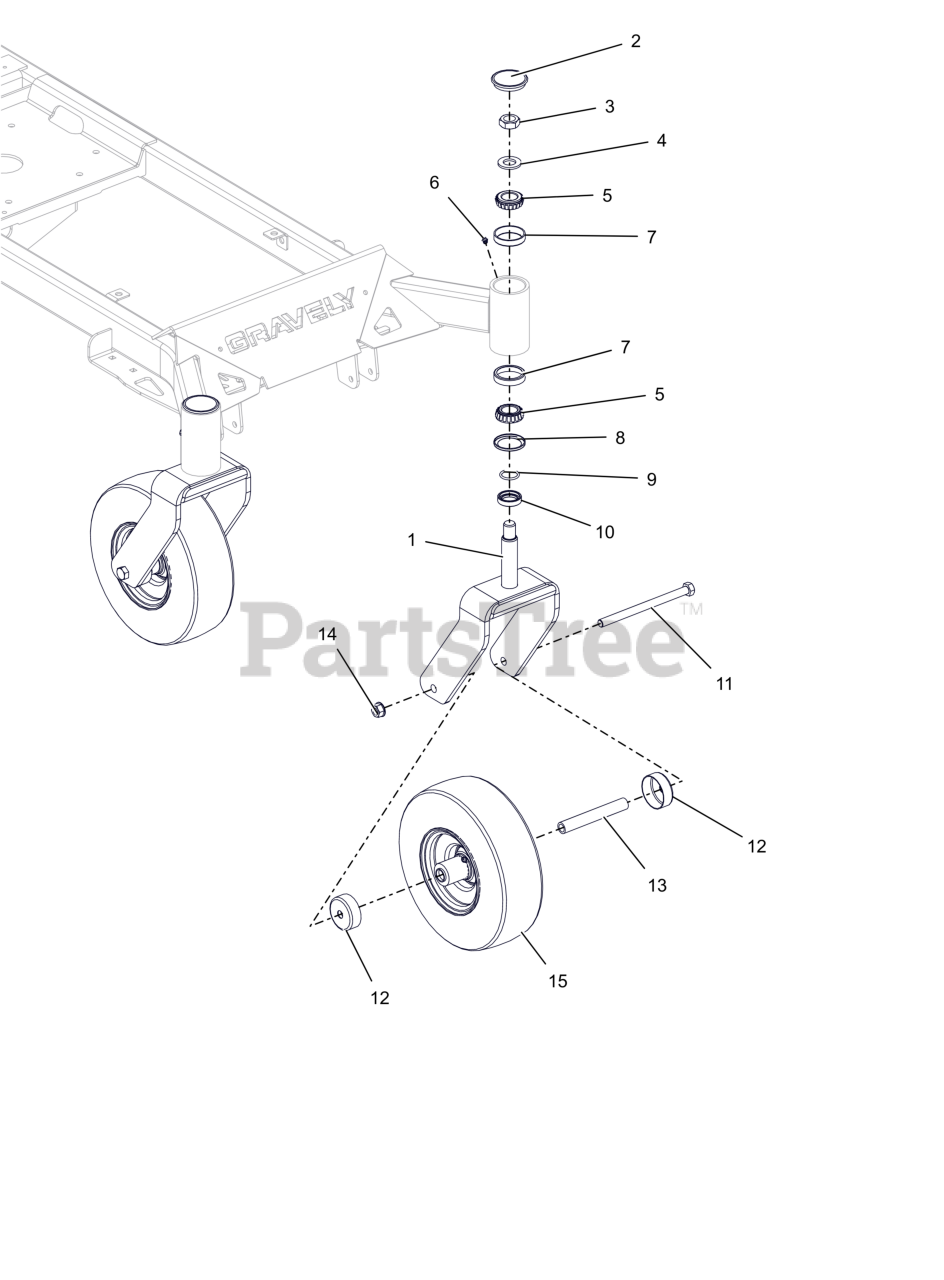

Front Casters Parts Diagram

  • Title

1

Gravely 05257000

WLDMT, CASTER FORK

$

$

Not available

2

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 10

0

3

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$4.99

$

In Stock, Qty 11

0

4

Gravely 06401140

WSHR-FL-STL 0.812X1.469X0.134 ZCC

$1.99

$

In Stock, Qty 17

0

5

Gravely 05406900

BRG-CONE 1.0X.58

$20.99

$

In Stock, Qty 20+

0

6

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 8

0

7

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

8

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

9

Gravely 05610000

O-RING 1.000X1.250X

$3.99

$

In Stock, only 2 left!

0

10

Gravely 04720200

SPCR, CASTER FORK (1.00)

$26.99

$

In Stock, only 1 left!

0

11

Gravely 05901917

BLT, HEX 0.5-13X7 GR5 ZCC

$8.49

$

In Stock, only 2 left!

0

12

Gravely 09357800

SHIELD, WHEEL BEARING

$12.99

$

In Stock, Qty 20+

0

13

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

14

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07101233

ASM, WHL/TIRE 11X4.00-5

$106.99

$

Usually ships in 4-12 days

0
