994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 002000 & Above) Rear Tires and Transaxles - 32" Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

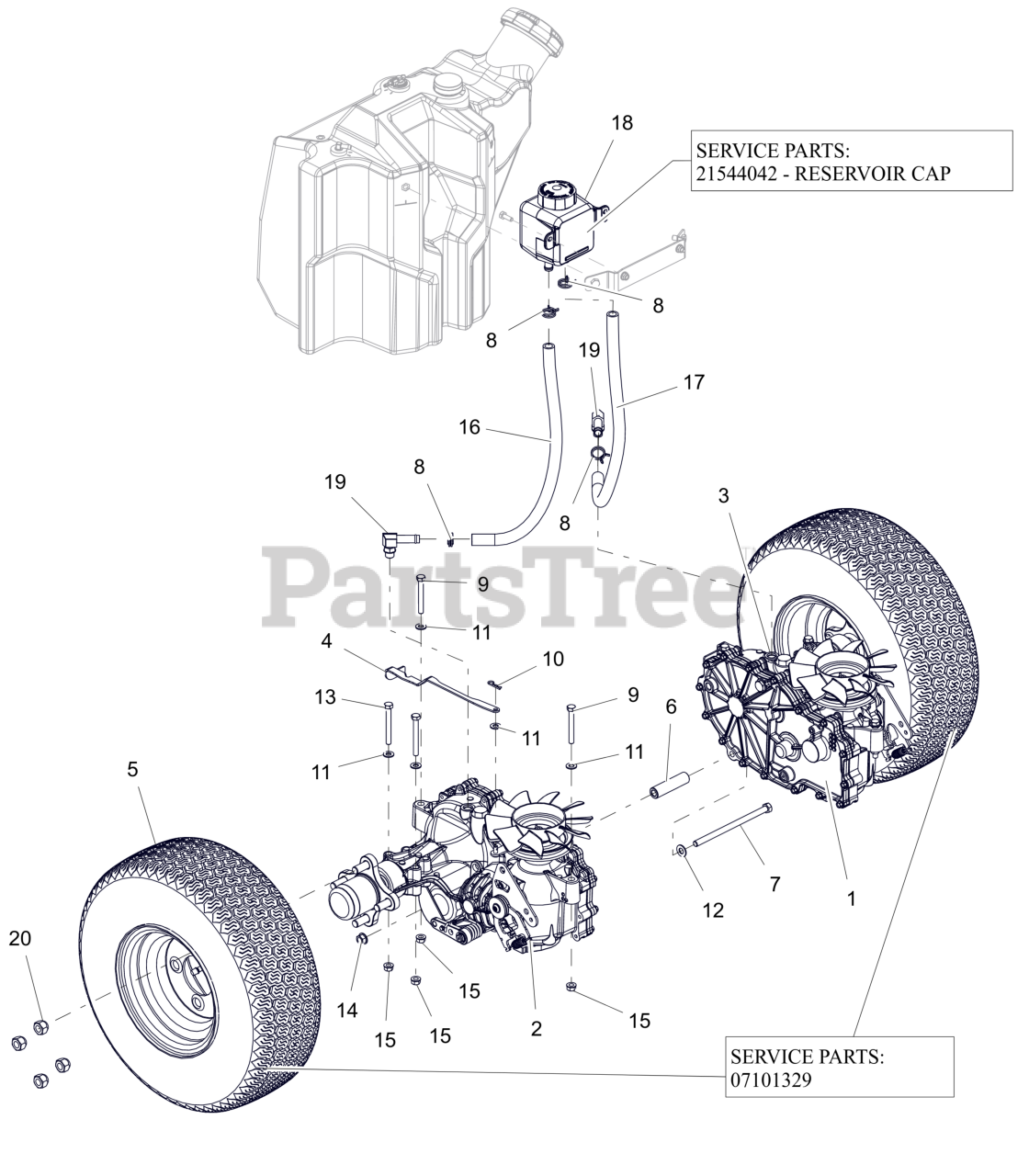

Rear Tires and Transaxles - 32" Parts Diagram

  • Title

1

Gravely 09159700

TRANSAXLE- ZT3100 - LH

$1121.99

$

Usually ships in 4-12 days

0

2

Gravely 09159800

TRANSAXLE- ZT3100 - RH

$1055.99

$

Usually ships in 4-12 days

0

3

Gravely 05192951

BRKT, HYDRO DUMP - LEFT

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 05193051

BRKT, HYDRO DUMP - RIGHT

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 07101322

ASM, WHL/TIRE 18X6.50-8

$128.99

$

Usually ships in 4-12 days

0

6

Gravely 04672400

SHAFT, CROSS BRACE

$37.99

$

Usually ships in 4-12 days

0

7

Gravely 05902029

BLT, HEX .38-16X6.50 G5 ZCC

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 06900634

3/4 WIRE HOSE CLMP ZC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05901912

BLT, HEX 0.3125-18X2.5 GR5 ZCC

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.99

$

In Stock, Qty 6

0

14

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09369700

HOSE, OVERFLOW 19"

$

$

Not available

17

Gravely 09369800

HOSE, OVERFLOW 20"

$23.99

$

Usually ships in 4-12 days

0

18

Gravely 04894600

TANK, HYDRO OVERFLOW 700 ML

$35.99

$

In Stock, only 2 left!

0

19

Gravely 07001528

FITTING, HYD (90 DEG)

$20.99

$

In Stock, only 2 left!

0

20

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 17

0
