994158 - Gravely Z-Stance 52" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck, Belt, Blades and Spindles - 52" Parts Diagram
Z-Stance 52" Stand-On Mower, Kawasaki FS

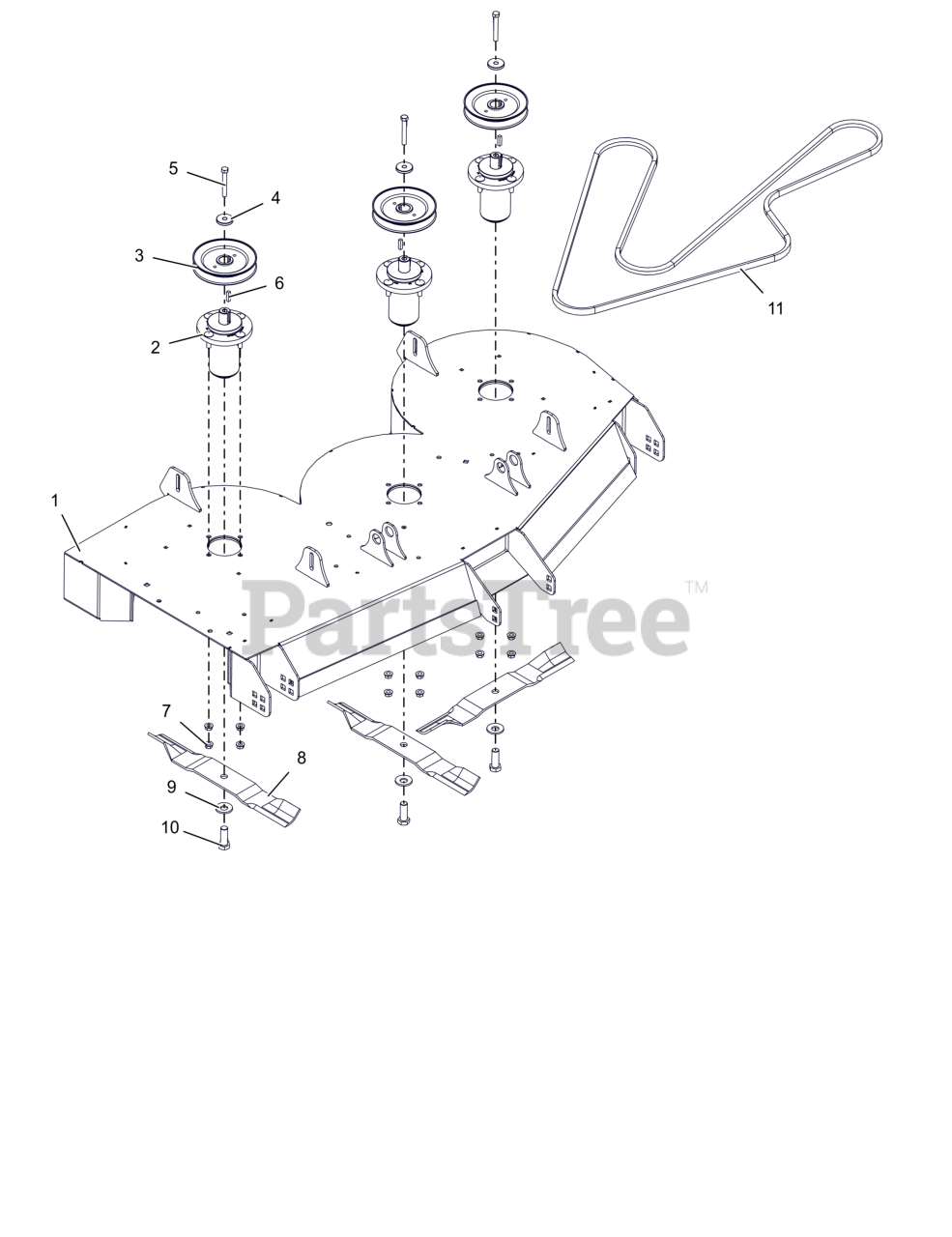

Deck, Belt, Blades and Spindles - 52" Parts Diagram
Gravely 59407300
52" DECK WLDMT W/SAFETY DECALS
$1187.99
$
Usually ships in 4-12 days
Gravely 58810800
ASM, MAINT FREE ALUM SPINDLE
$361.99
$
In Stock, Qty 20+
Gravely 07329300
PULLEY, V - 1.000 ID X 5.750 OD
$72.99
$
In Stock, Qty 7
Gravely 04530500
RETAINER, SHEAVE
$9.49
$
In Stock, Qty 15
Gravely 05901813
BLT, HEX .38-16X2.75 G8 ZCC
$1.99
$
In Stock, Qty 20+
Gravely 06611200
KEY, SQ .25X.25X1.00 RC 40-50
$3.49
$
In Stock, Qty 20+
Gravely 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Gravely 03253800
BLADE, 18"
$28.99
$
In Stock, Qty 20+
Gravely 06445700
WSHR-BLVL .669X1.535X.138
$5.49
$
In Stock, Qty 20+
Gravely 05901822
BLT, HEX .62-18X1.75 G8 ZCC
$3.99
$
In Stock, Qty 20+
Gravely 07200819
V-BELT, B RAW EDGE EPDM
$119.99
$
In Stock, only 4 left!
